Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ambient temperature sensor to the radiator air baffle.
  2. Connect the electrical connector to the ambient temperature sensor.

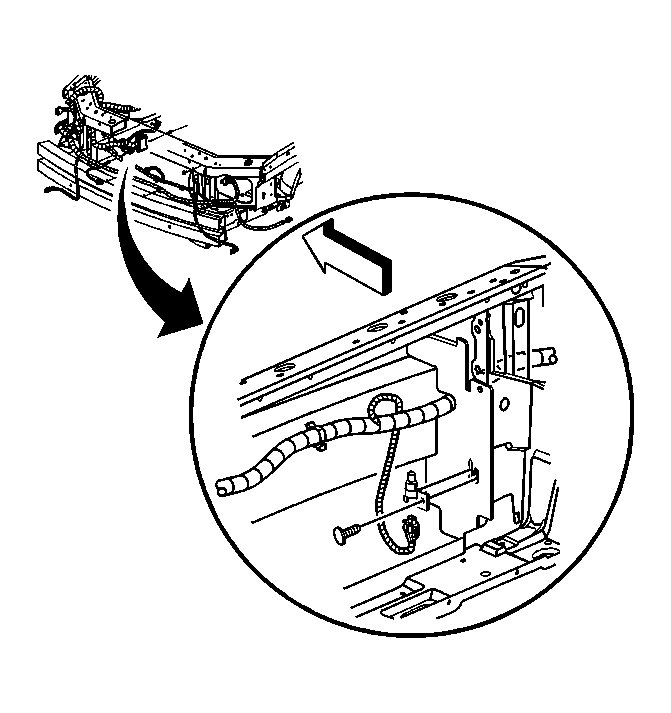

    3. Fig 1: Ambient Temperature Sensor & Electrical Connector
    GM551891Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Drive the vehicle at a speed of 32 km/h (20 mph) for approximately 1 1/2 minutes or at a speed of 72 km/h (45 mph) for approximately 1 minute in order to obtain the ambient update.
