Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Connect the body wiring harnesses to the junction block.

    Tighten:  Tighten the body wiring harness connector bolts to 7 N.m (62 lb in).

  2. Install the junction block tabs to the passenger knee bolster.
  3. Install the junction block bolt.

    Tighten:  Tighten the junction block bolt to 10 N.m (89 lb in).

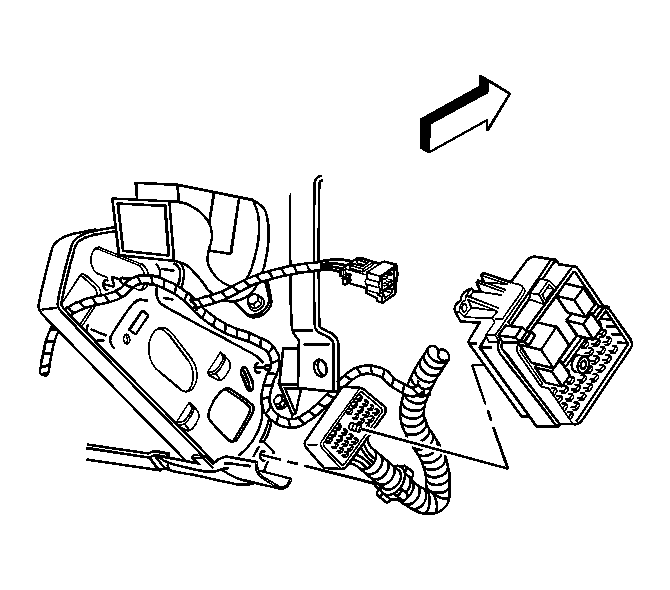

    4. Fig 1: Installing Junction Block - Right
    GM615535Courtesy of GENERAL MOTORS CORP.
  4. Close the IP compartment.
  5. Connect the body wiring harness to the junction block.
  6. Install the RH IP fuse block access opening cover.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

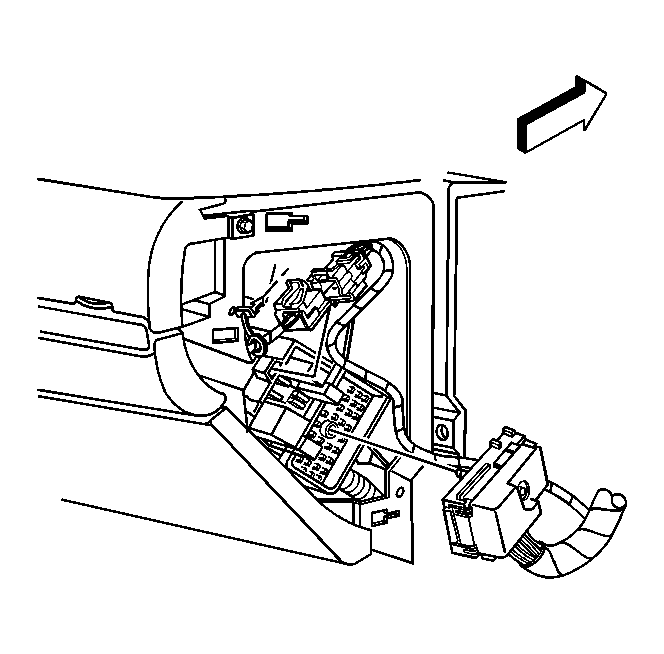

    8. Fig 2: Wiring Harness & Junction Block - Right
    GM615708Courtesy of GENERAL MOTORS CORP.
