Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the new O-ring seal for any sign or cracks, cuts, or damage. Replace if necessary.
Remove the cap or tape from the A/C refrigerant components.
Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the A/C refrigerant components.

IMPORTANT: DO NOT allow any of the mineral base 525 viscosity refrigerant oil on the new O-ring seal to enter the refrigerant system.

Lightly coat the new O-ring seal with mineral base 525 viscosity refrigerant oil.

IMPORTANT: DO NOT reuse O-ring seals.

Carefully slide the new O-ring seal onto the A/C refrigerant component.

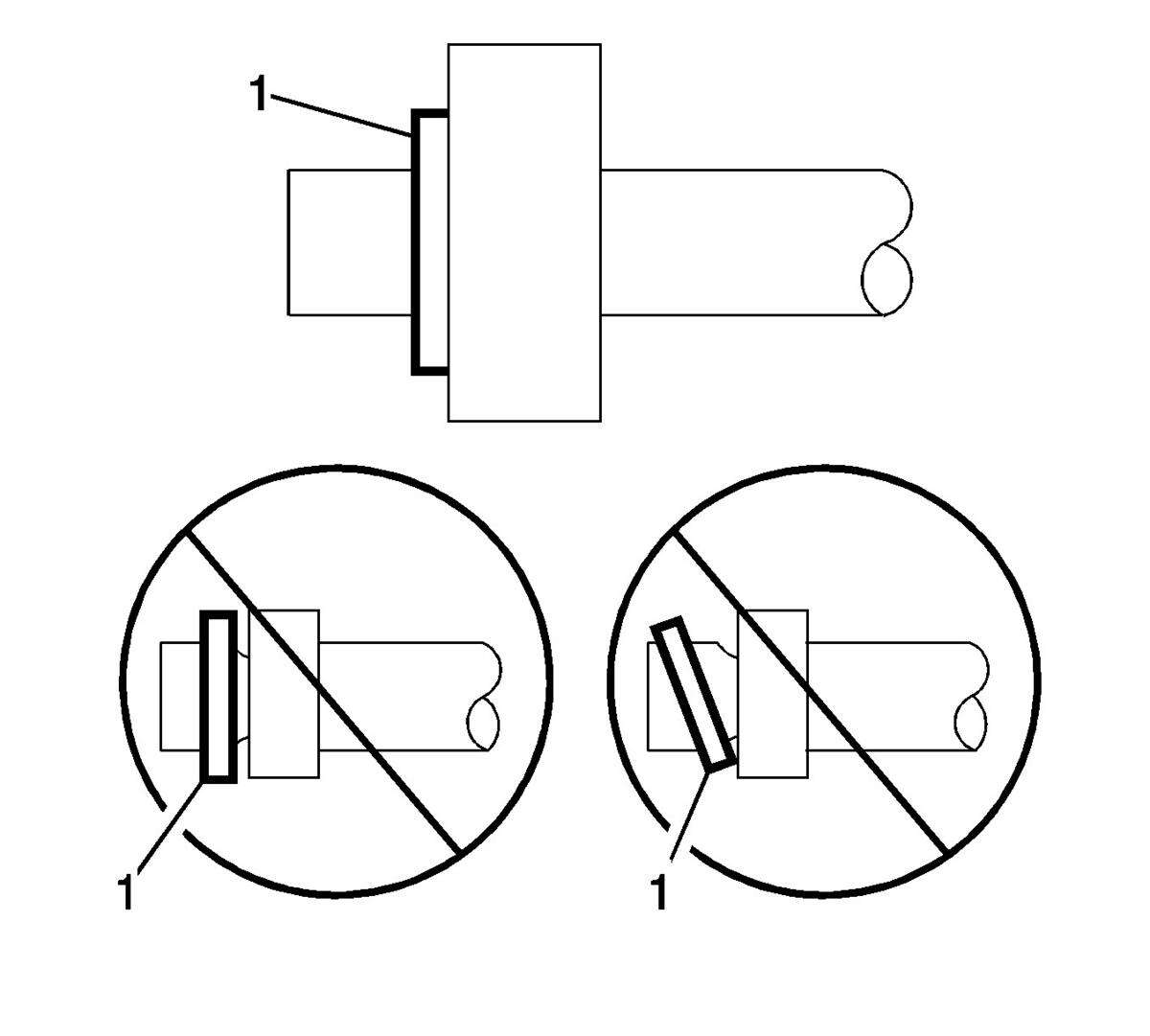

Fig 1: Identifying Proper Seating Of A/C Refrigerant O-Ring

Courtesy of GENERAL MOTORS CORP.

The O-ring seal must be fully seated.

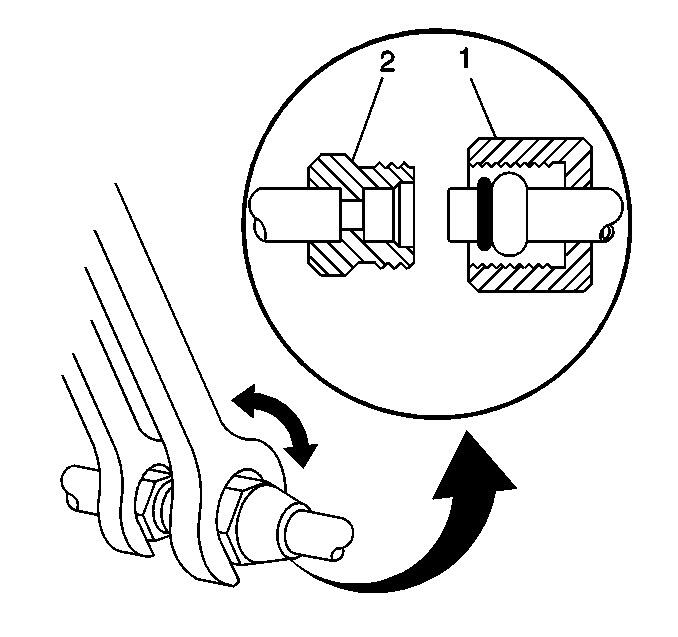

Fig 2: Disassembling/Reassembling A/C Line Fittings

Courtesy of GENERAL MOTORS CORP.

Assemble the A/C components.
Refer to the appropriate repair procedure.
- For compression style fittings use a back up wrench on the fitting (2) and tighten the fitting nut (1) to specification.
- For banjo style fittings install the bolt retaining the banjo type fitting and tighten to specification.
