Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

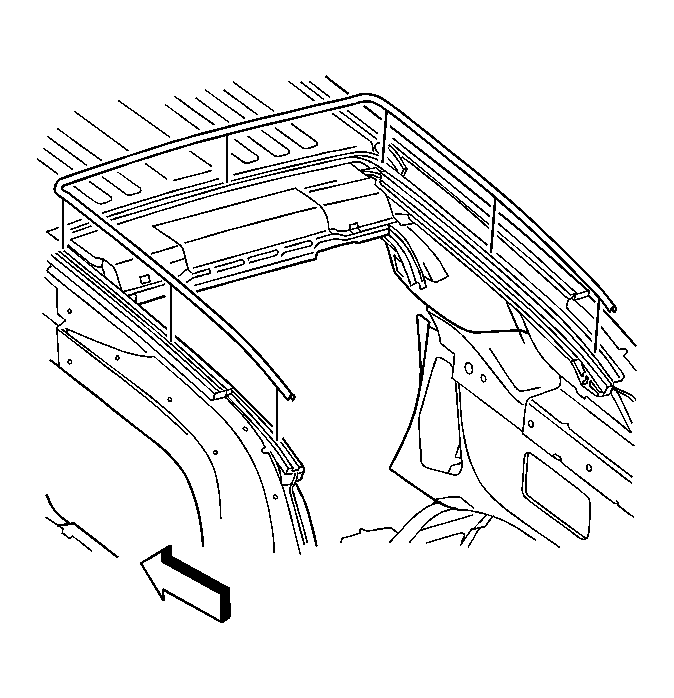

    Fig 1: Identifying Moveable Roof Panel Seal
    GM1218491Courtesy of GENERAL MOTORS CORP.
  1. Install the locating tabs near the end of the roof panel seal to the notches in the channel of the moveable roof frame.
    2. Fig 2: Installing Moveable Roof Panel Seal
    GM1218503Courtesy of GENERAL MOTORS CORP.
  2. Press the roof panel seal down into place onto the moveable roof panel frame assembly, working from the ends of the seal towards the middle.
  3. Install the moveable roof panel. Refer to Moveable Roof Panel Assembly Replacement .
