Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper arm blade to the wiper arm. Refer to Wiper Arm Replacement .
    2. Fig 1: Removing/Installing Wiper Arm
    GM751297Courtesy of GENERAL MOTORS CORP.
  2. Install the wiper arm onto the drive shaft.

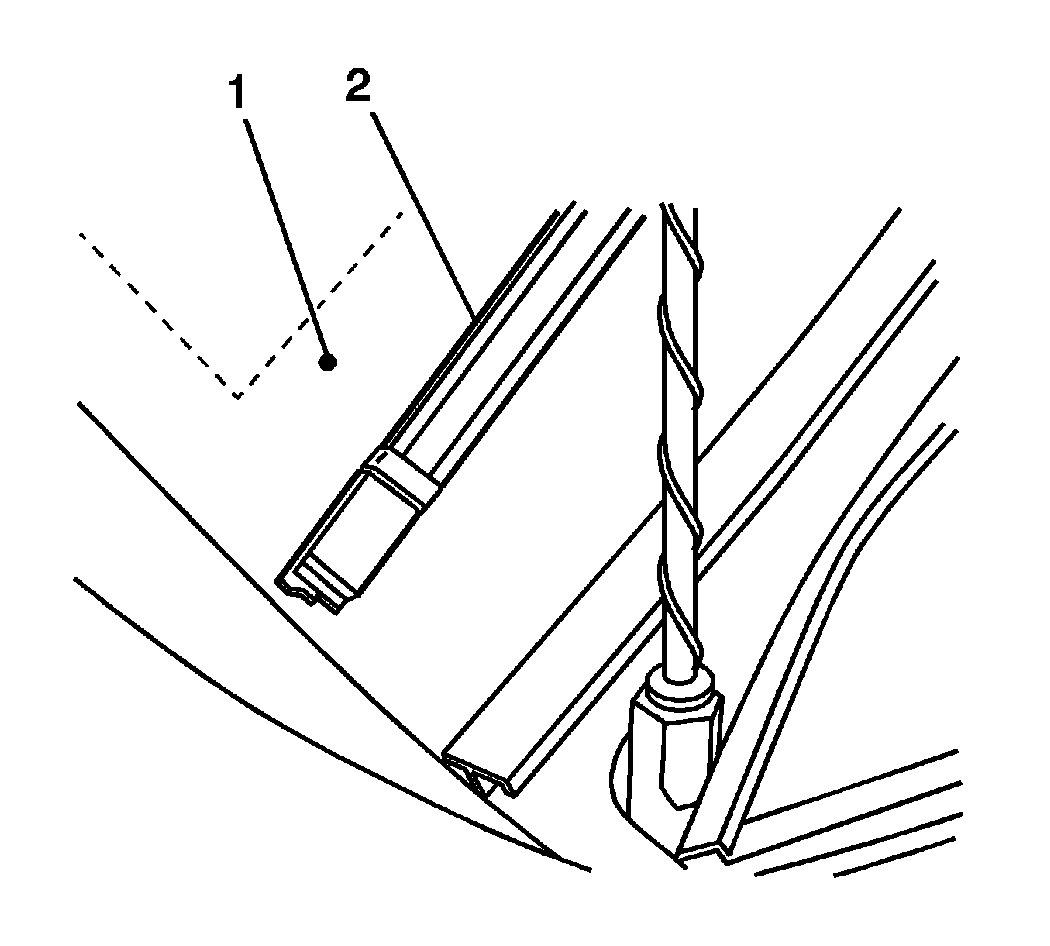

    3. Fig 2: Positioning Wiper Arm
    GM1272636Courtesy of GENERAL MOTORS CORP.
  3. Hold the wiper arm blade (2) in position to the dots (1) in the windshield blackout area.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the nut on the drive shaft.

    Tighten:  Tighten the nut to 30 N.m (22 lb ft).

  5. Install the cover on the nut.
  6. Operate the wipers and inspect for proper operation.
