Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Connecting Hood Latch Cable To Latch
    GM742161Courtesy of GENERAL MOTORS CORP.
  1. Connect the hood latch cable to the latch.

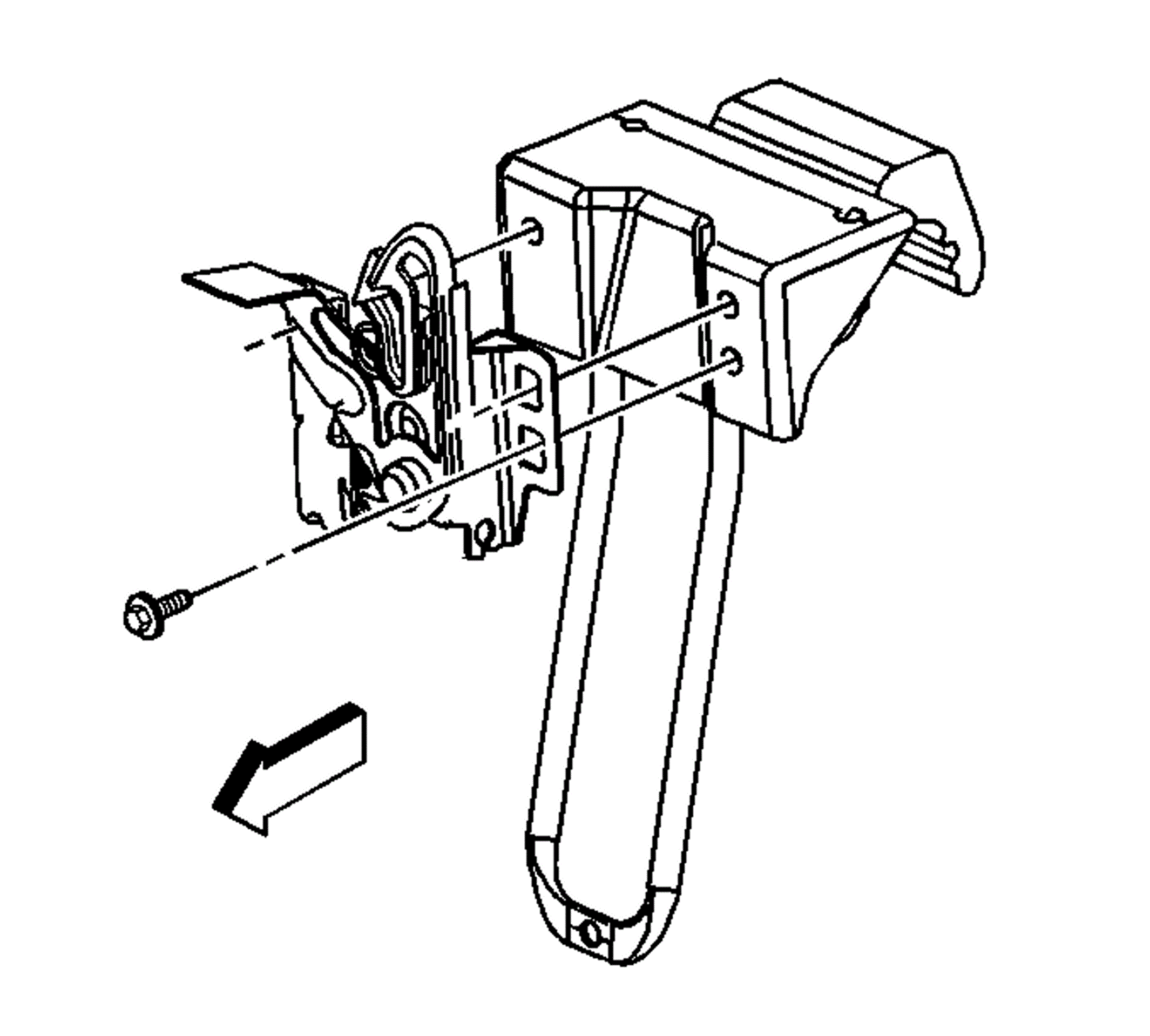

    2. Fig 2: Installing Hood Latch To Mounting Bracket
    GM749964Courtesy of GENERAL MOTORS CORP.
  2. Position the latch to the previously marked location on the mounting bracket.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts which retain the latch to the mounting bracket.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  4. Inspect the latch for proper operation before closing the hood.
  5. Check the alignment of the latch to the hood striker. Adjust the latch, if necessary. Refer to Hood Latch Adjustment  .
  6. Install the grille. Refer to Grille Replacement (Envoy, Envoy XUV) , Grille Replacement (TrailBlazer) , Grille Replacement (Bravada) or Grille Replacement (Rainier) in Exterior Trim.
