Engine Controls Schematics

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

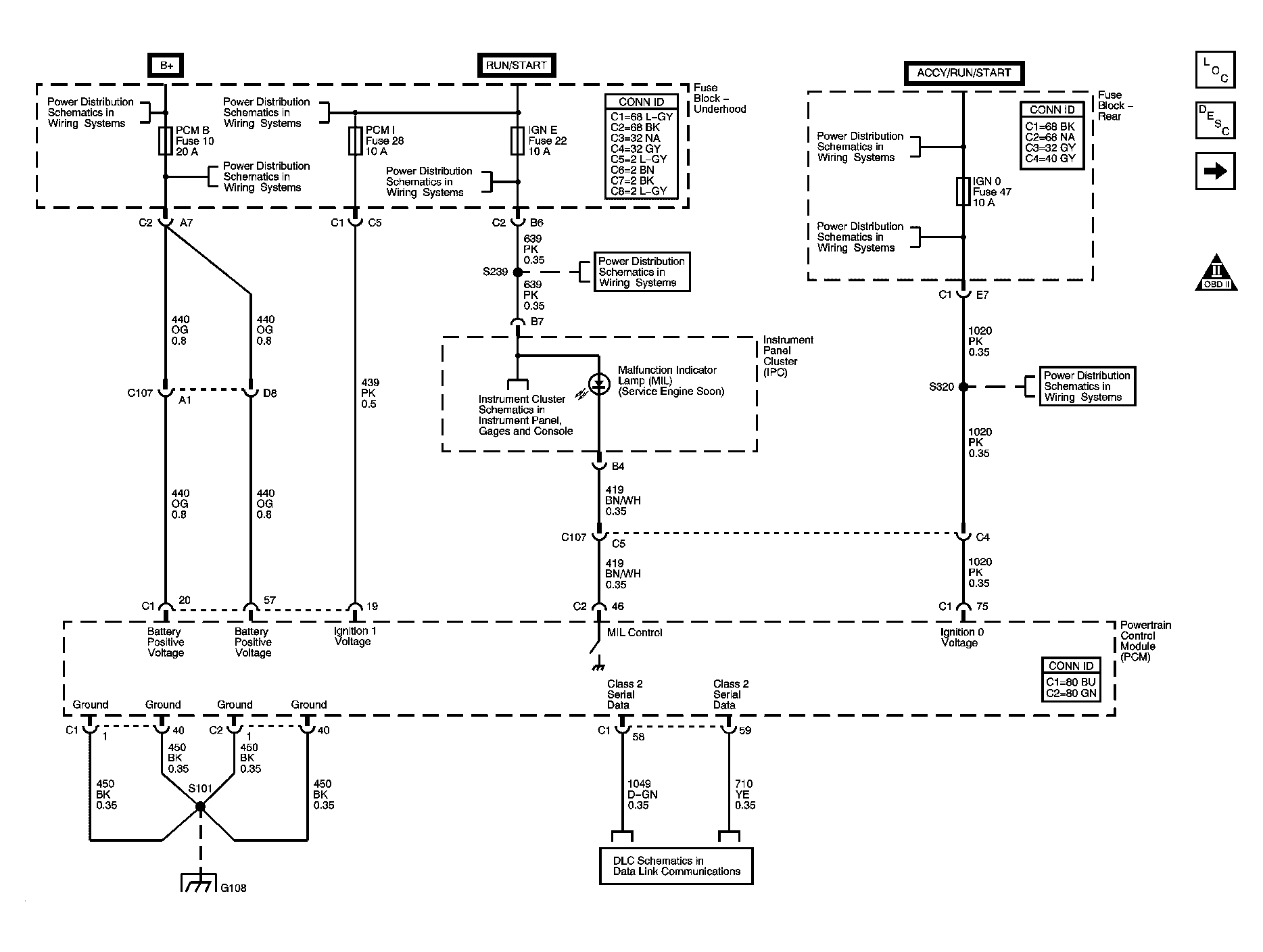

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuse Block - Underhood, IGN 1 Relay

Courtesy of GENERAL MOTORS CORP.

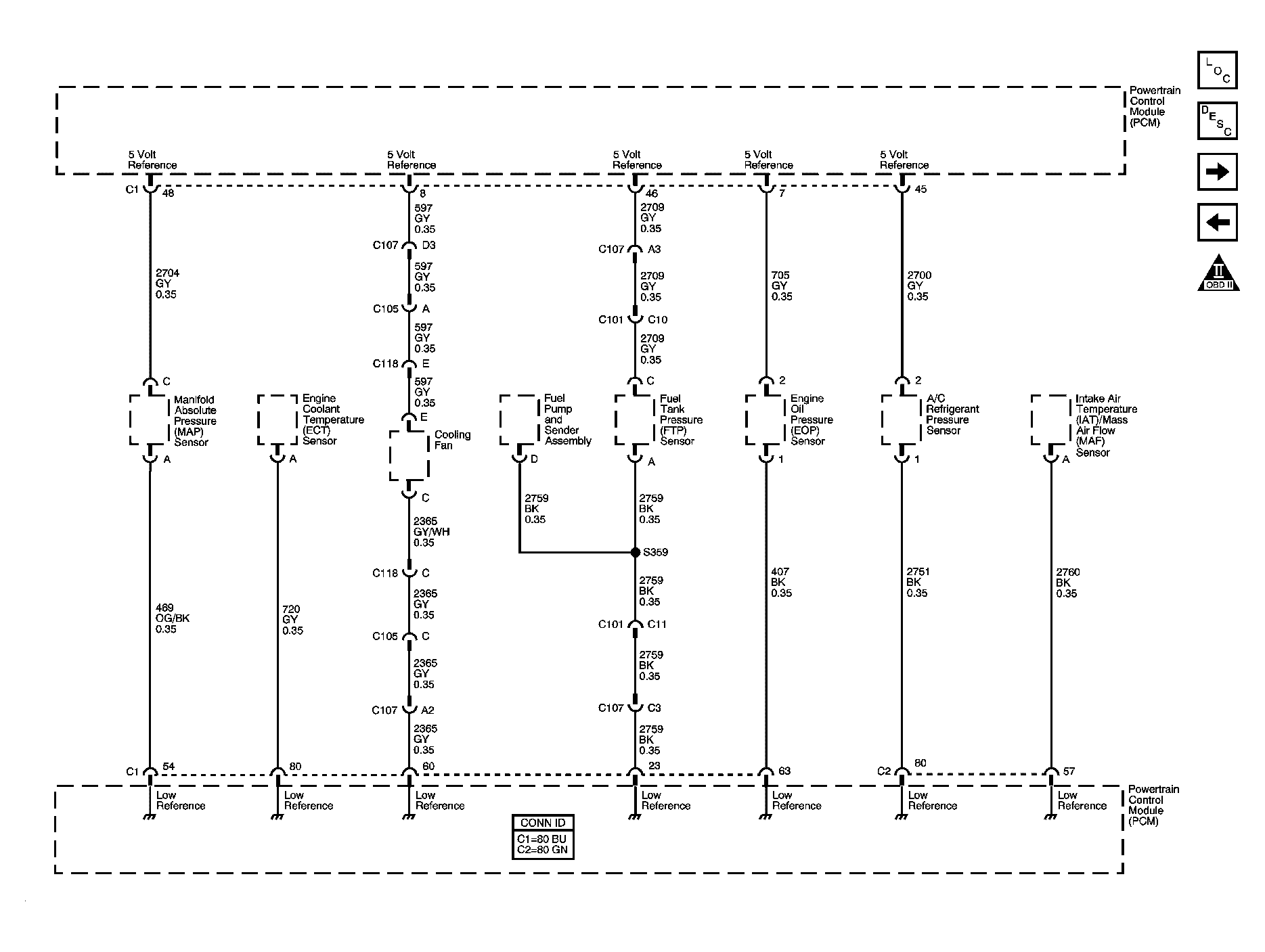

Fig 3: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

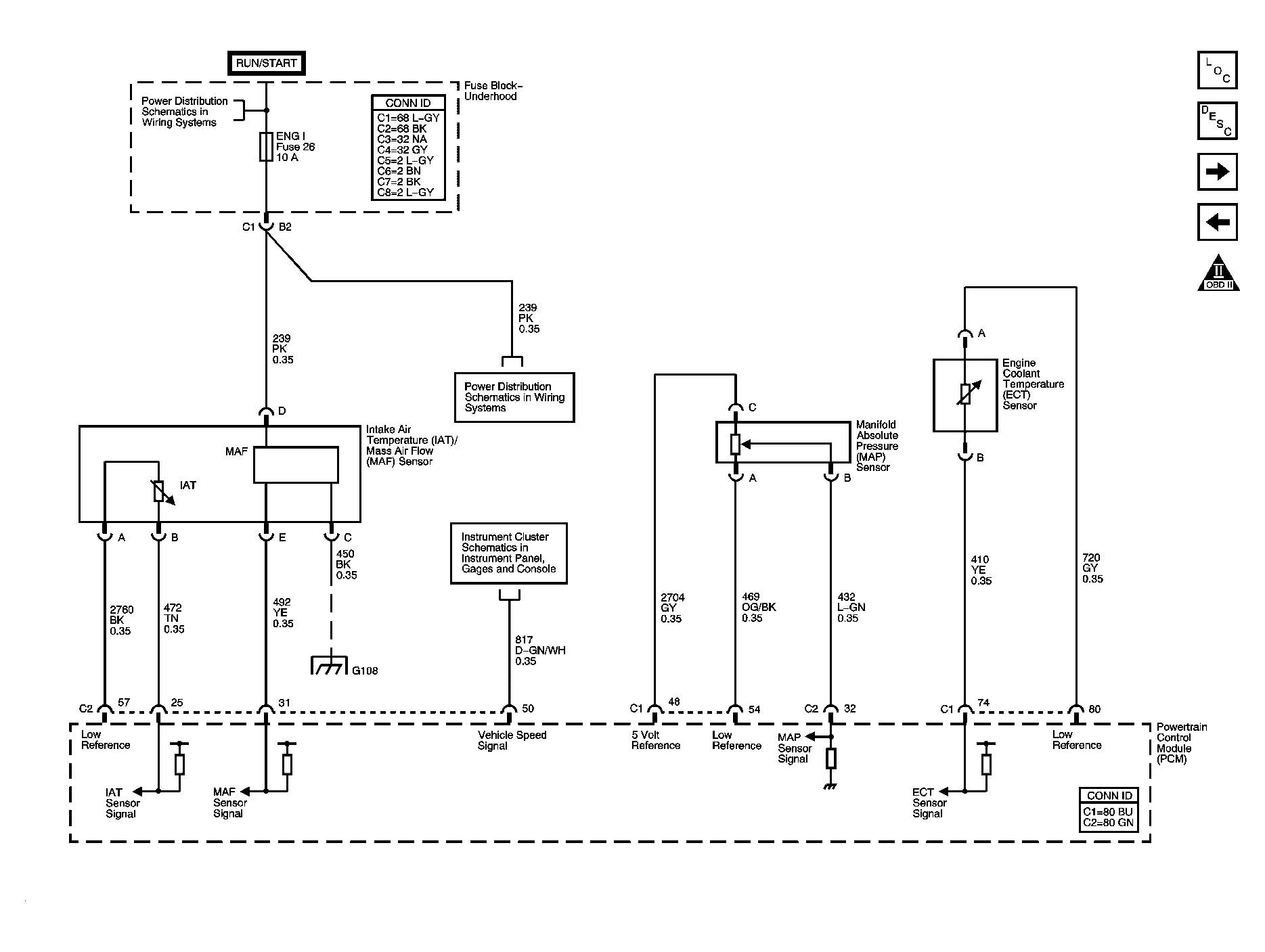

Fig 4: Engine Data Sensors - Pressure, Temperature, and VSS

Courtesy of GENERAL MOTORS CORP.

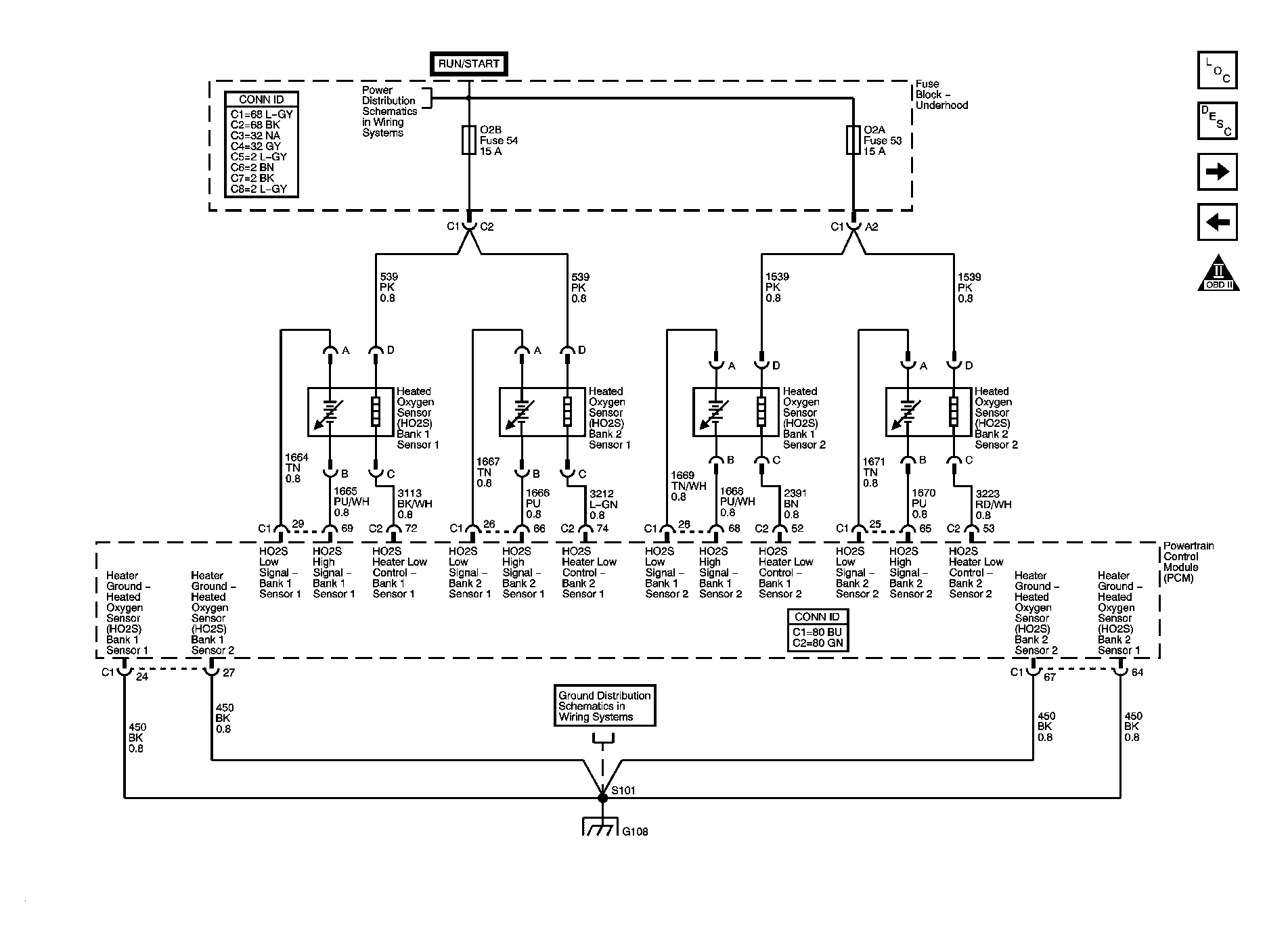

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

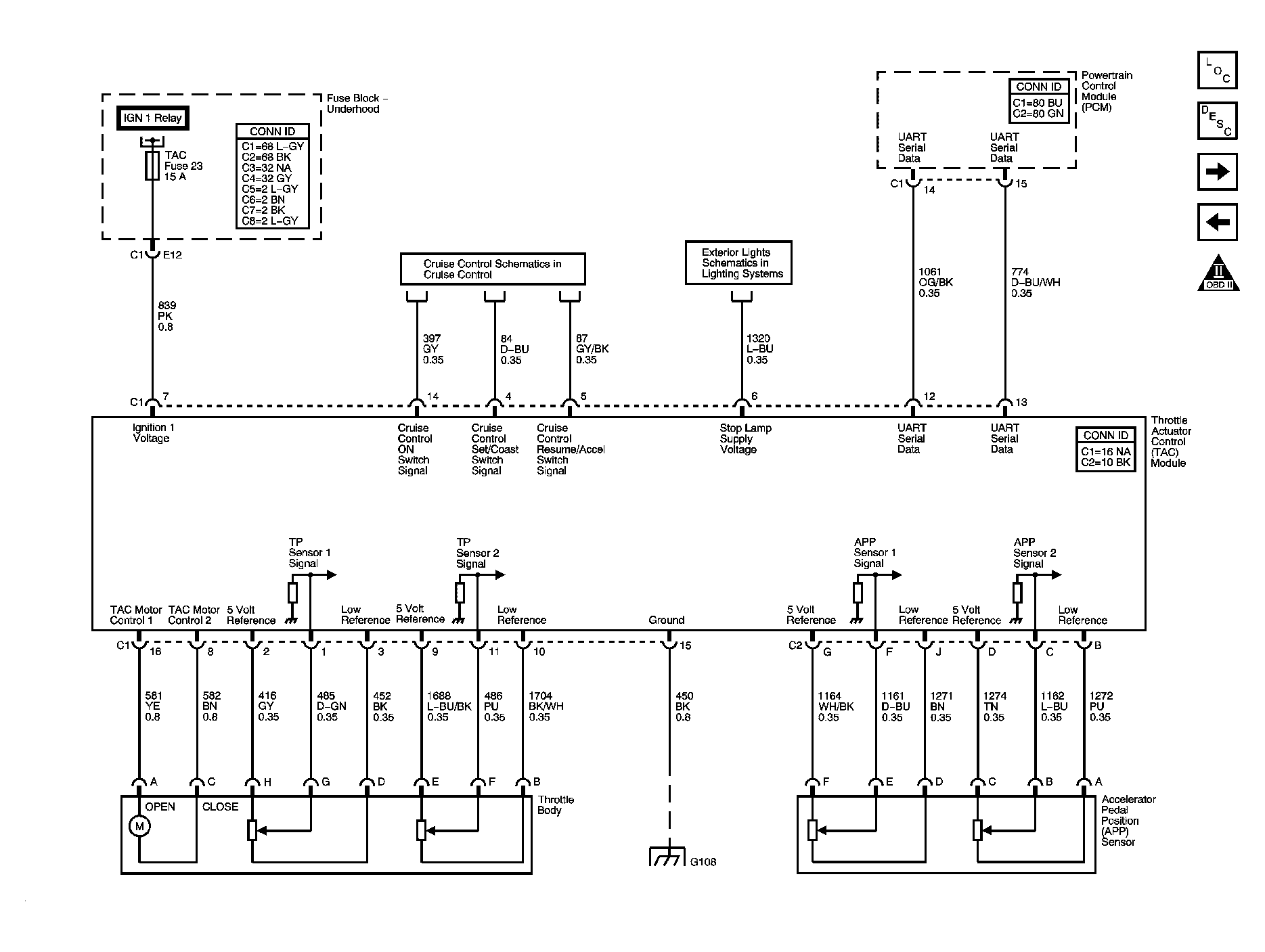

Fig 6: Engine Data Sensors - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

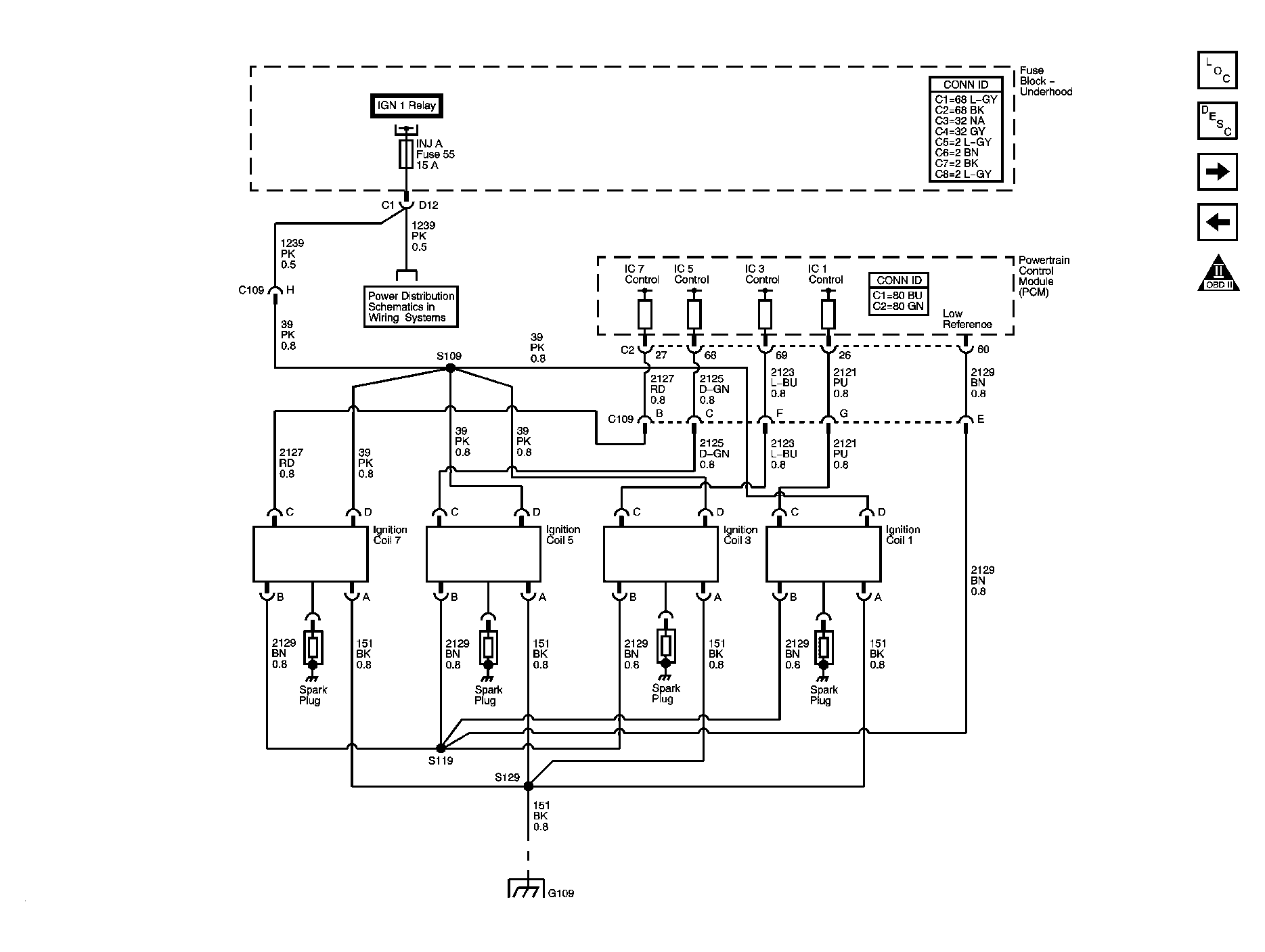

Fig 7: Ignition Controls - Ignition System Coils 1, 3, 5, 7

Courtesy of GENERAL MOTORS CORP.

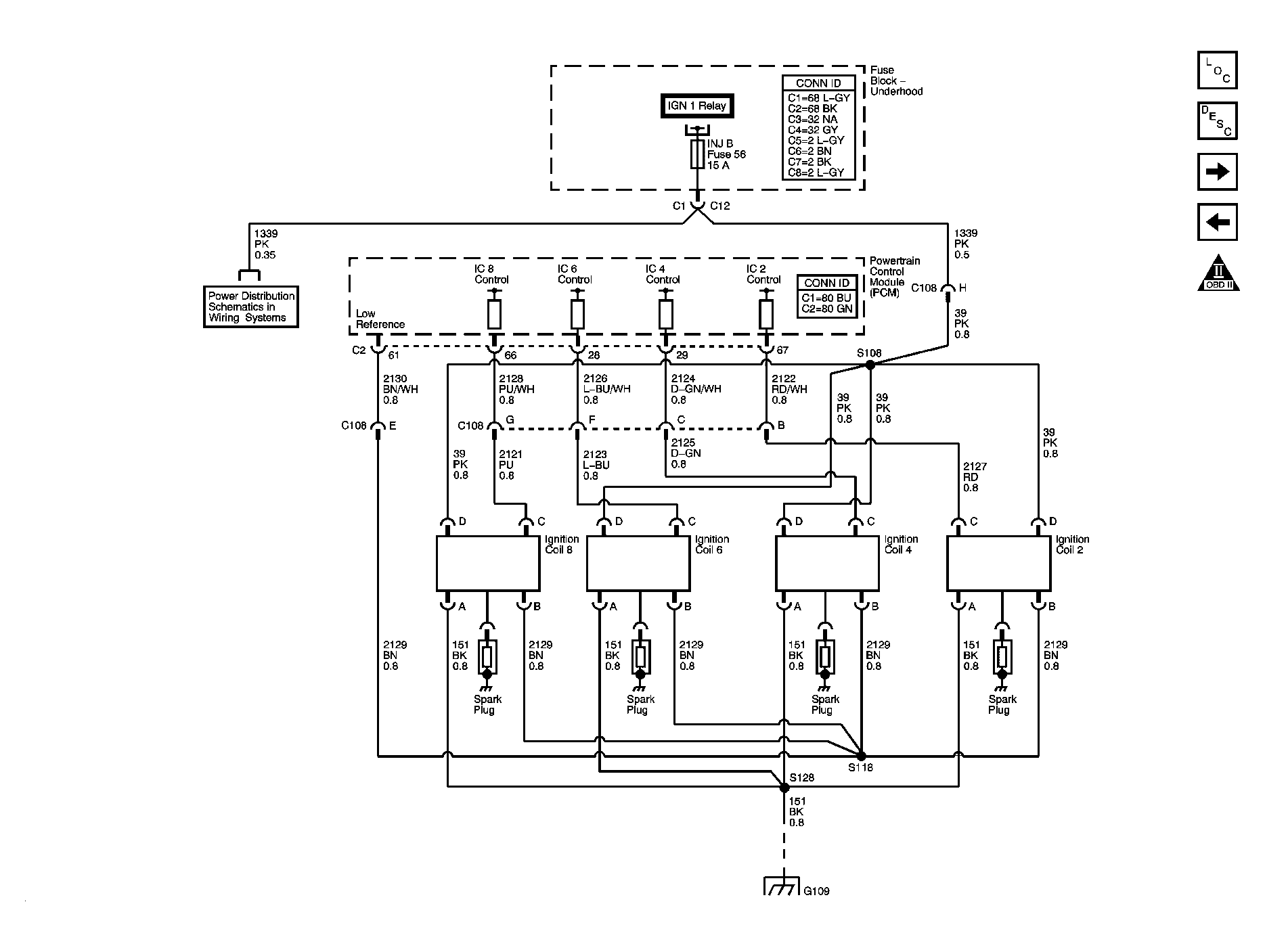

Fig 8: Ignition Controls - Ignition System Coils 2, 4, 6, 8

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

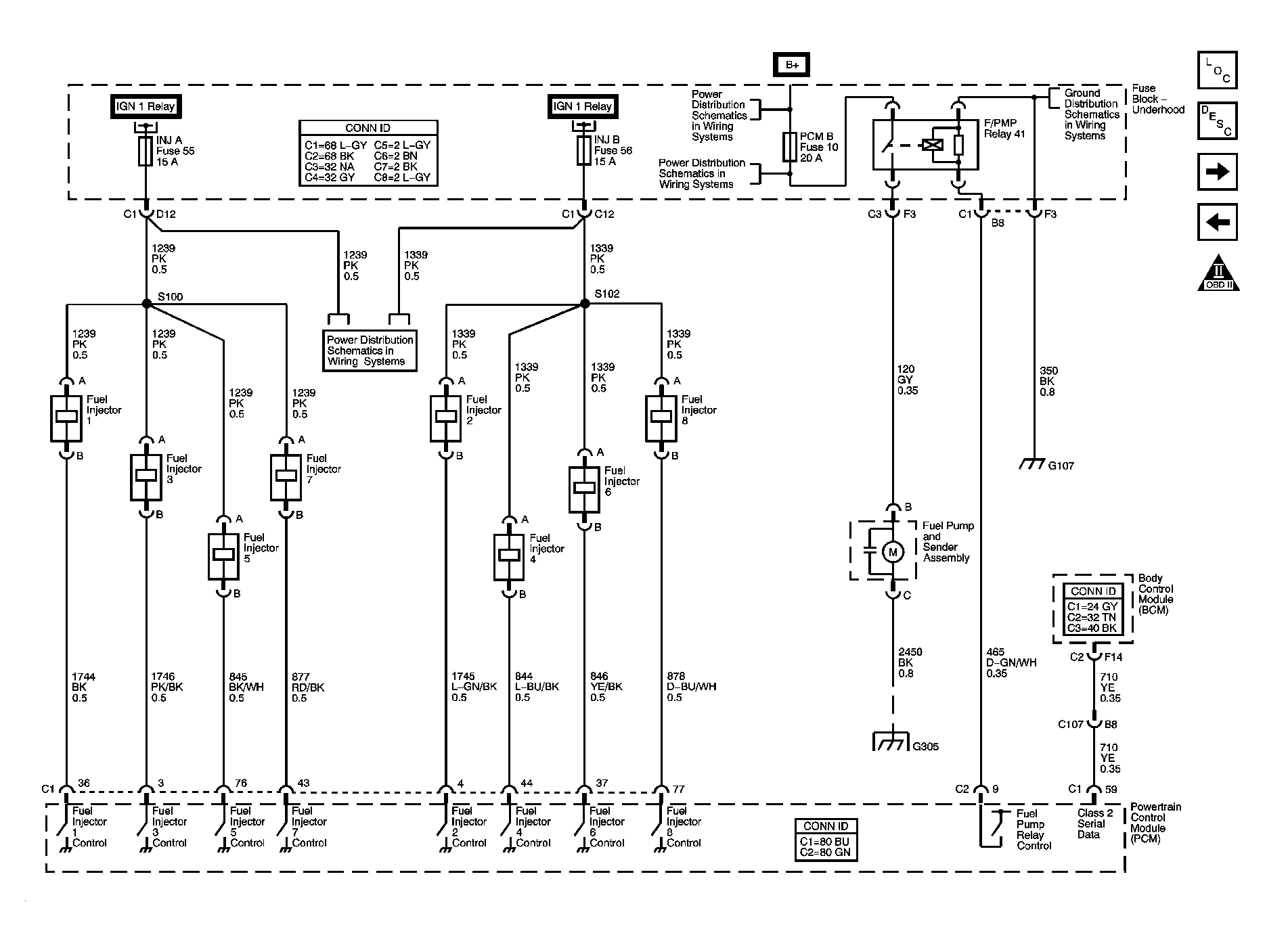

Fig 10: Fuel Controls - Fuel Pump Controls and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

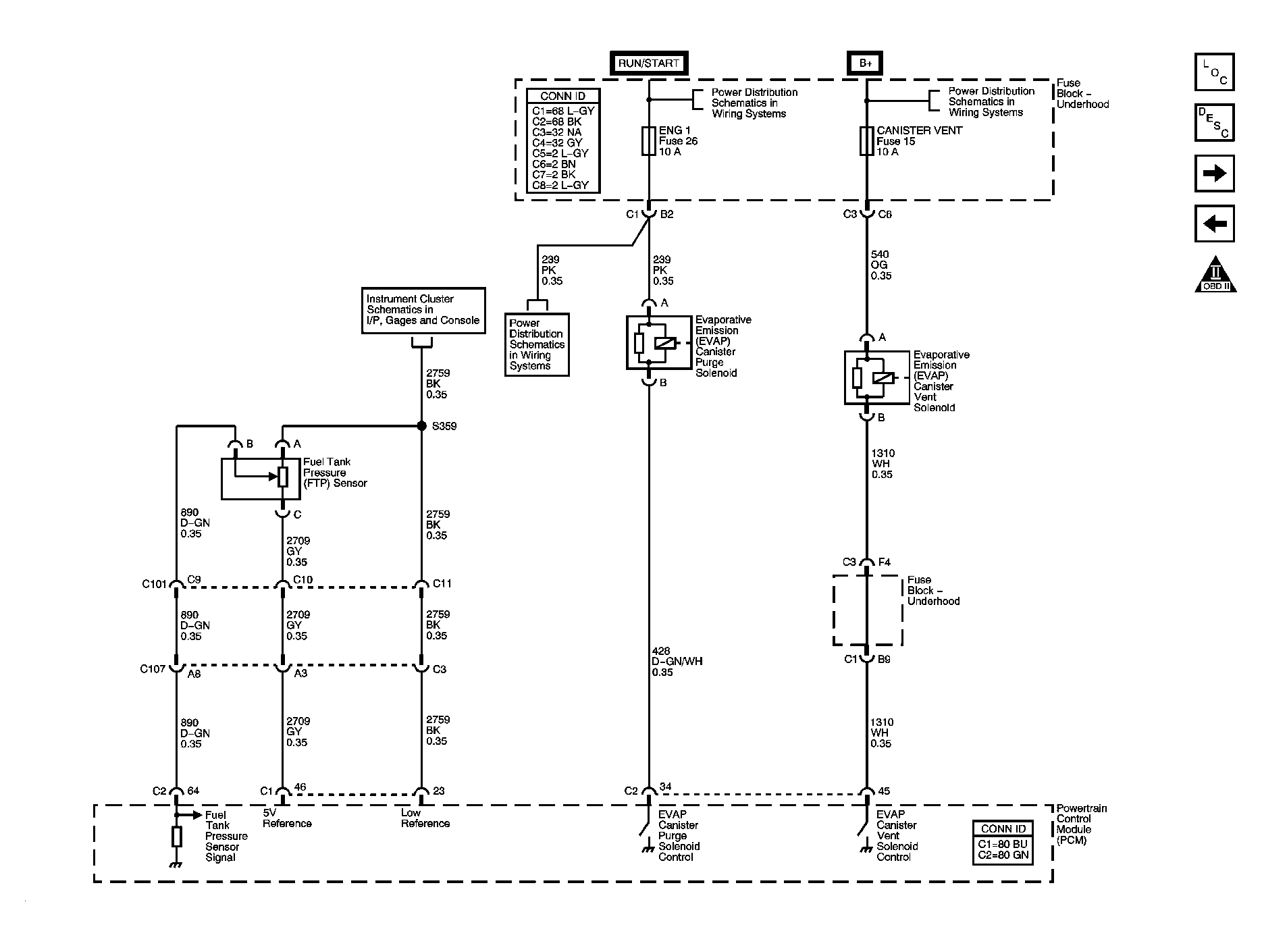

Fig 11: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

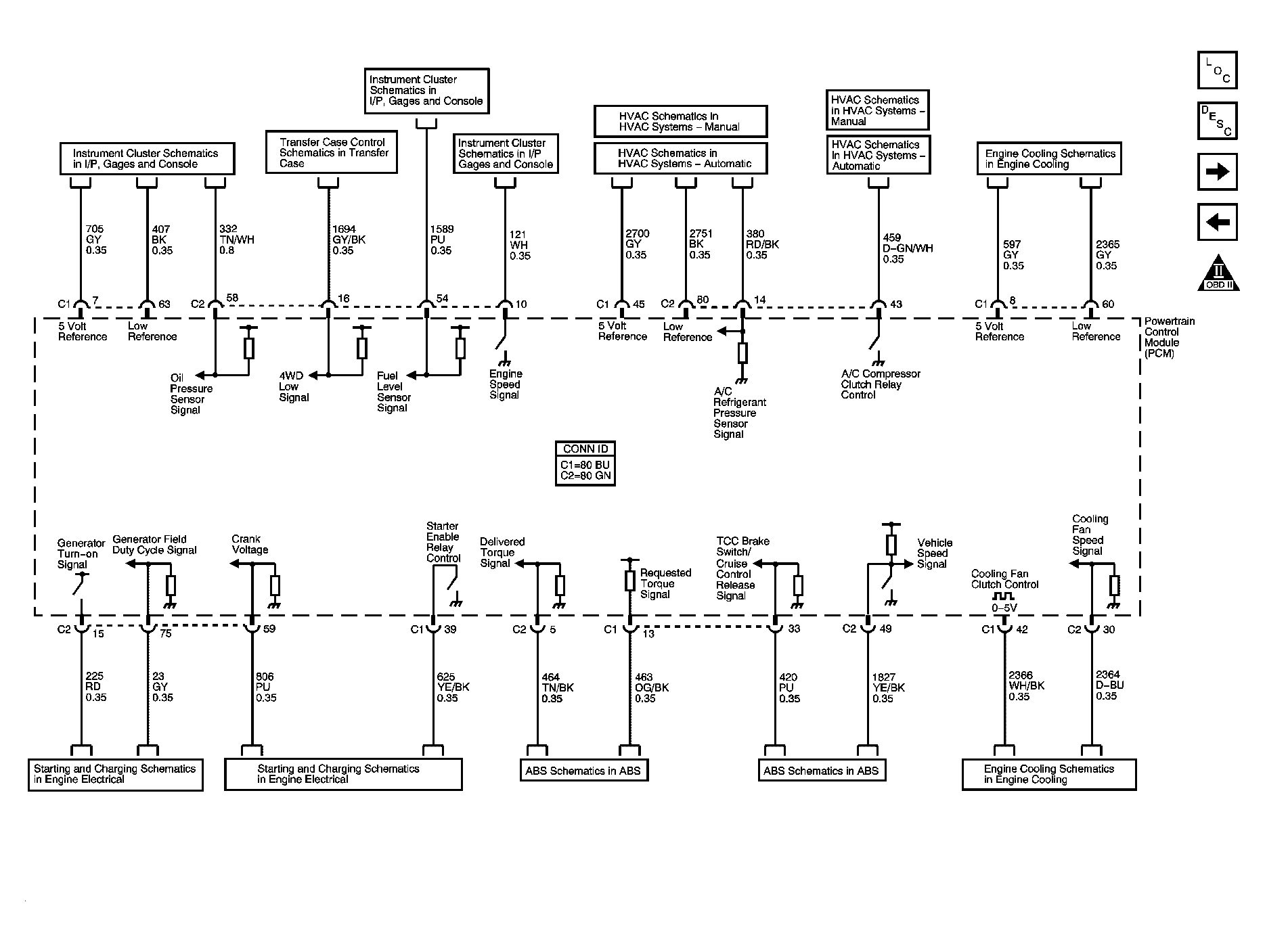

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

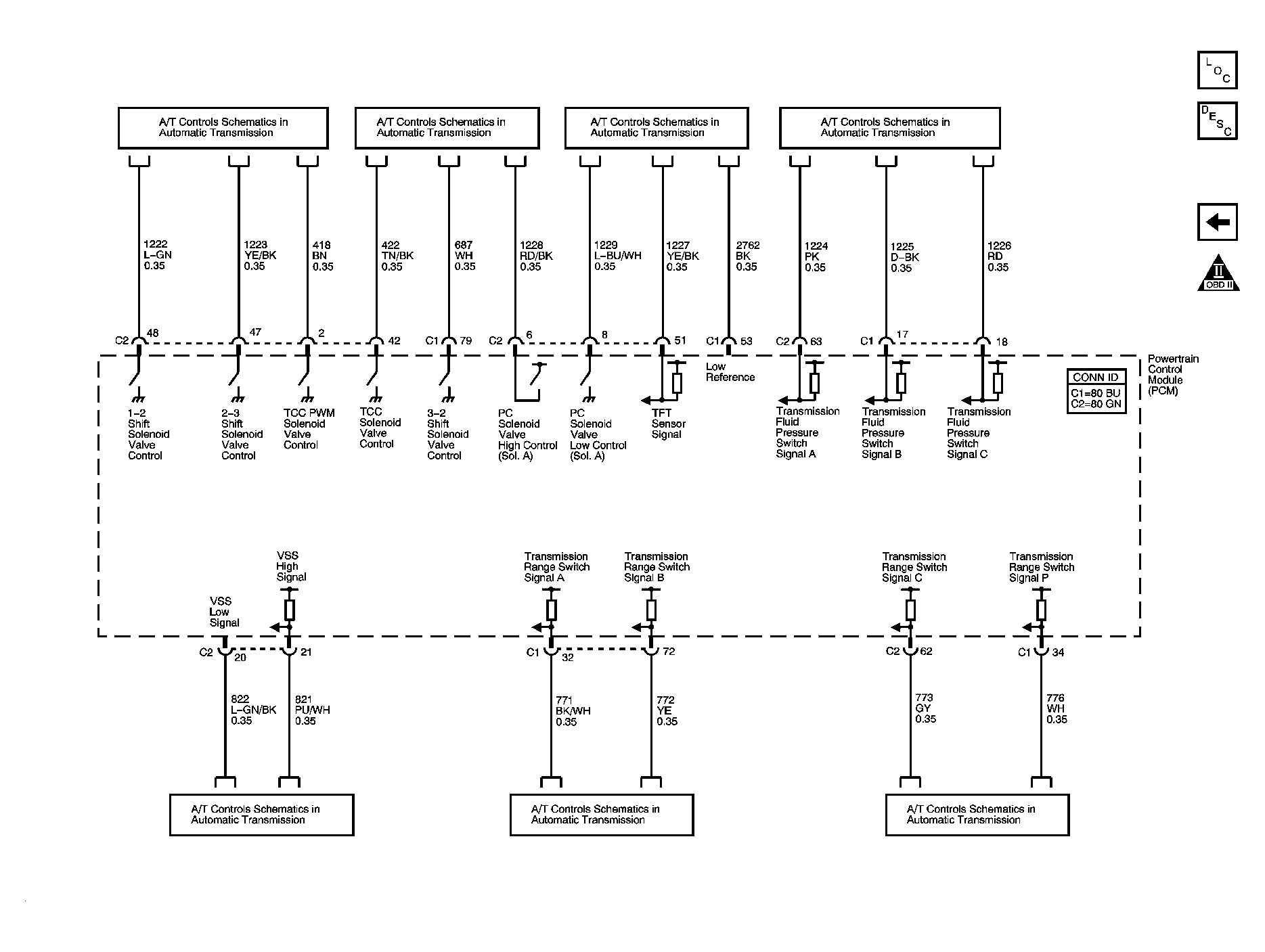

Fig 13: Transmission Control References - A/T

Courtesy of GENERAL MOTORS CORP.
