Engine Flywheel Installation

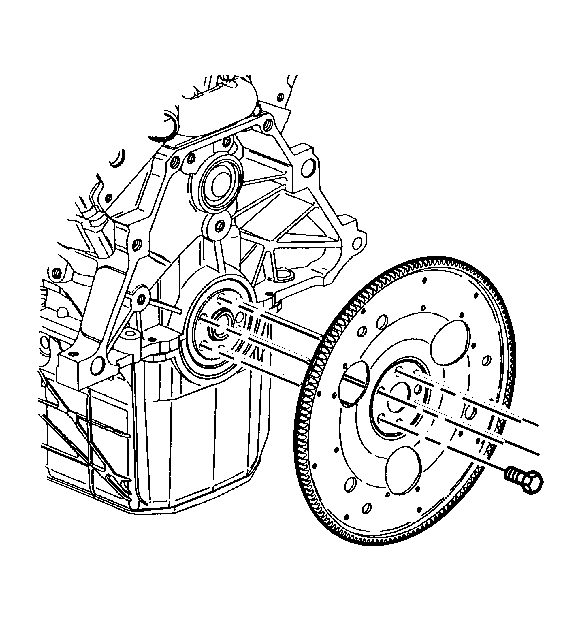

    Fig 1: View Of Engine Flywheel
    GM1275741Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the flywheel bolts.

    Tighten:  Tighten the flywheel bolts to 70 N.m (52 lb ft).
