Starting and Charging Schematics

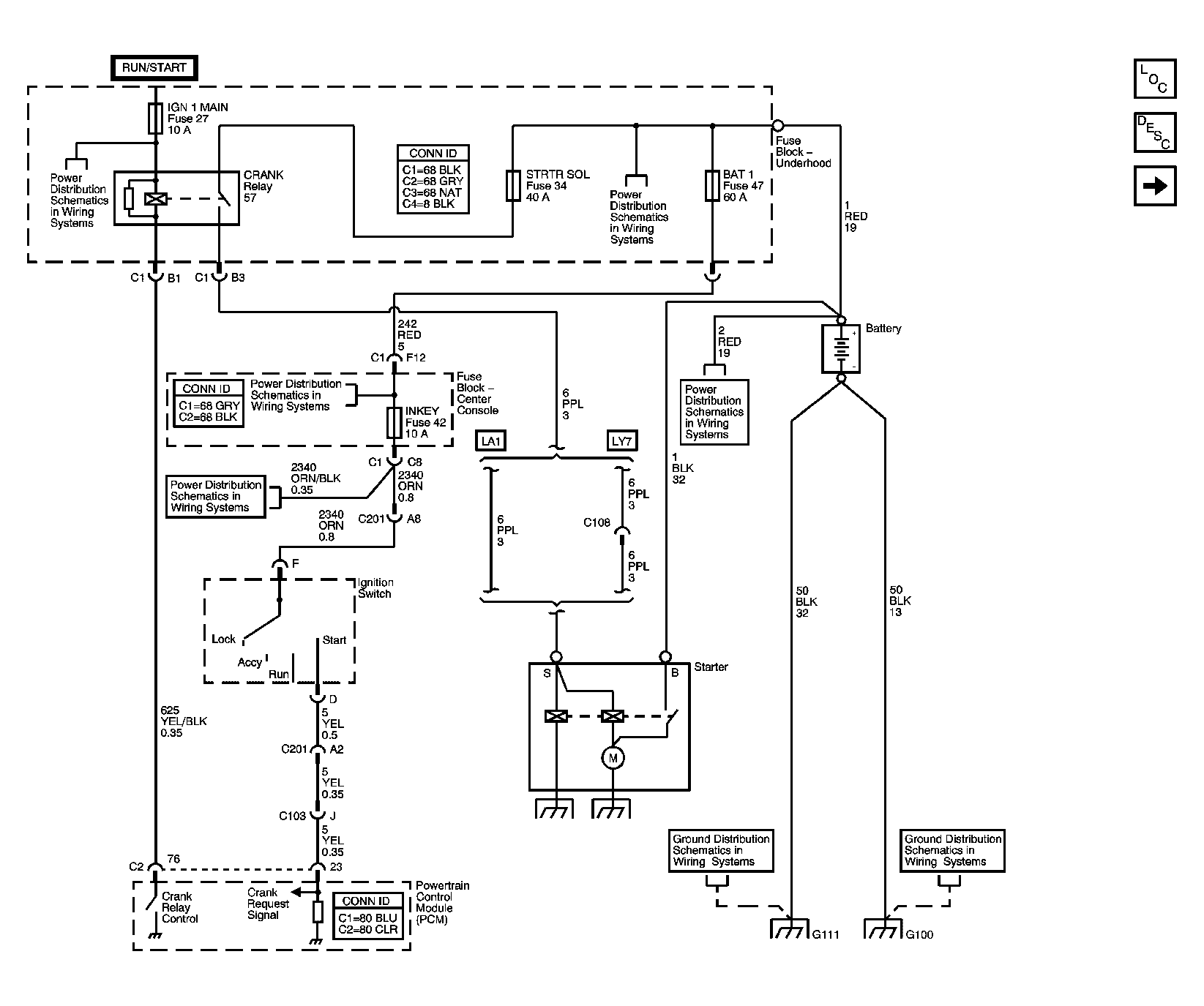

Fig 1: Engine Cranking Schematic

GM1406931

Courtesy of GENERAL MOTORS CORP.

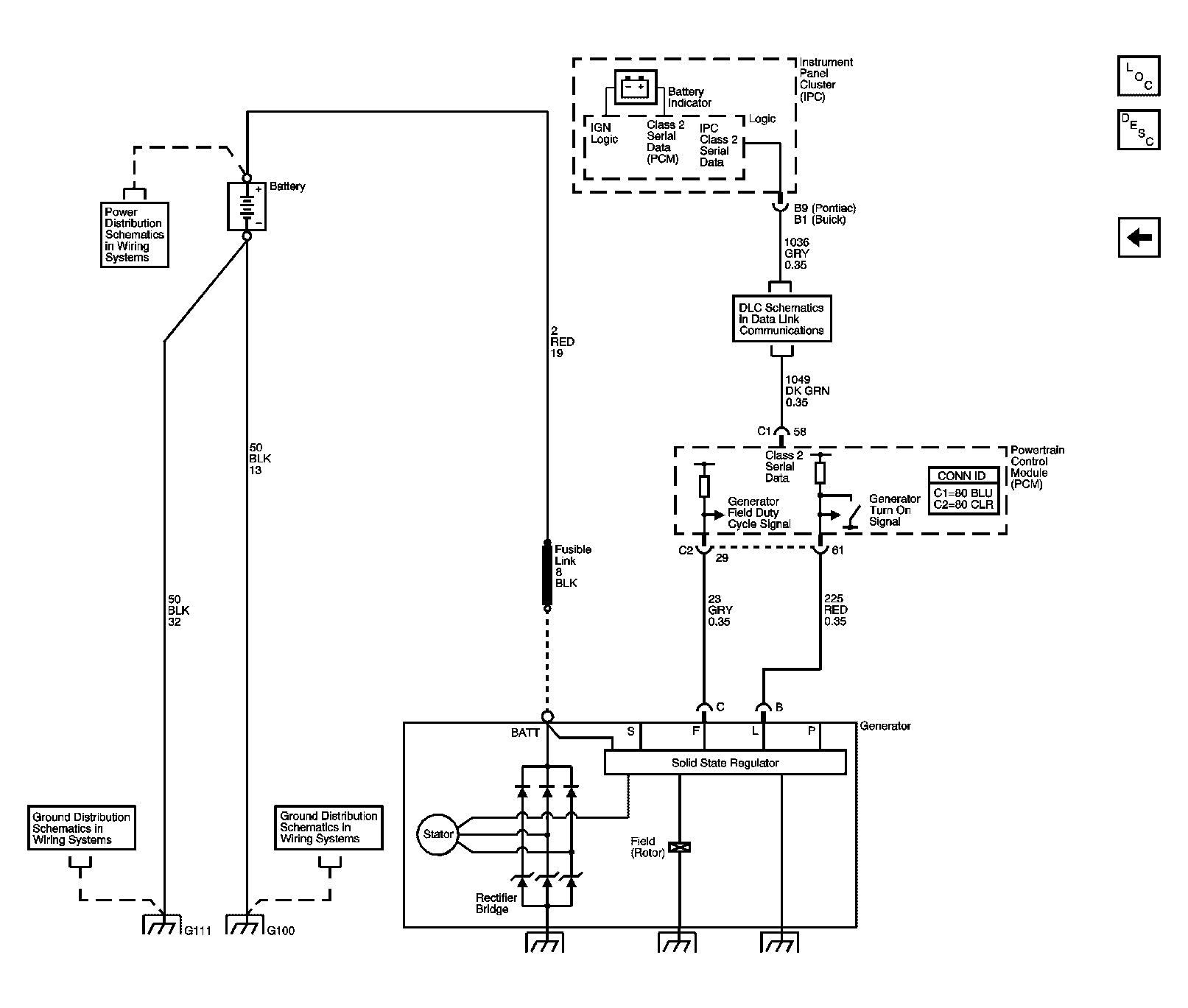

Fig 2: Charging Control, Indicator Schematic

GM626028

Courtesy of GENERAL MOTORS CORP.
