Retained Accessory Power (RAP) Schematics

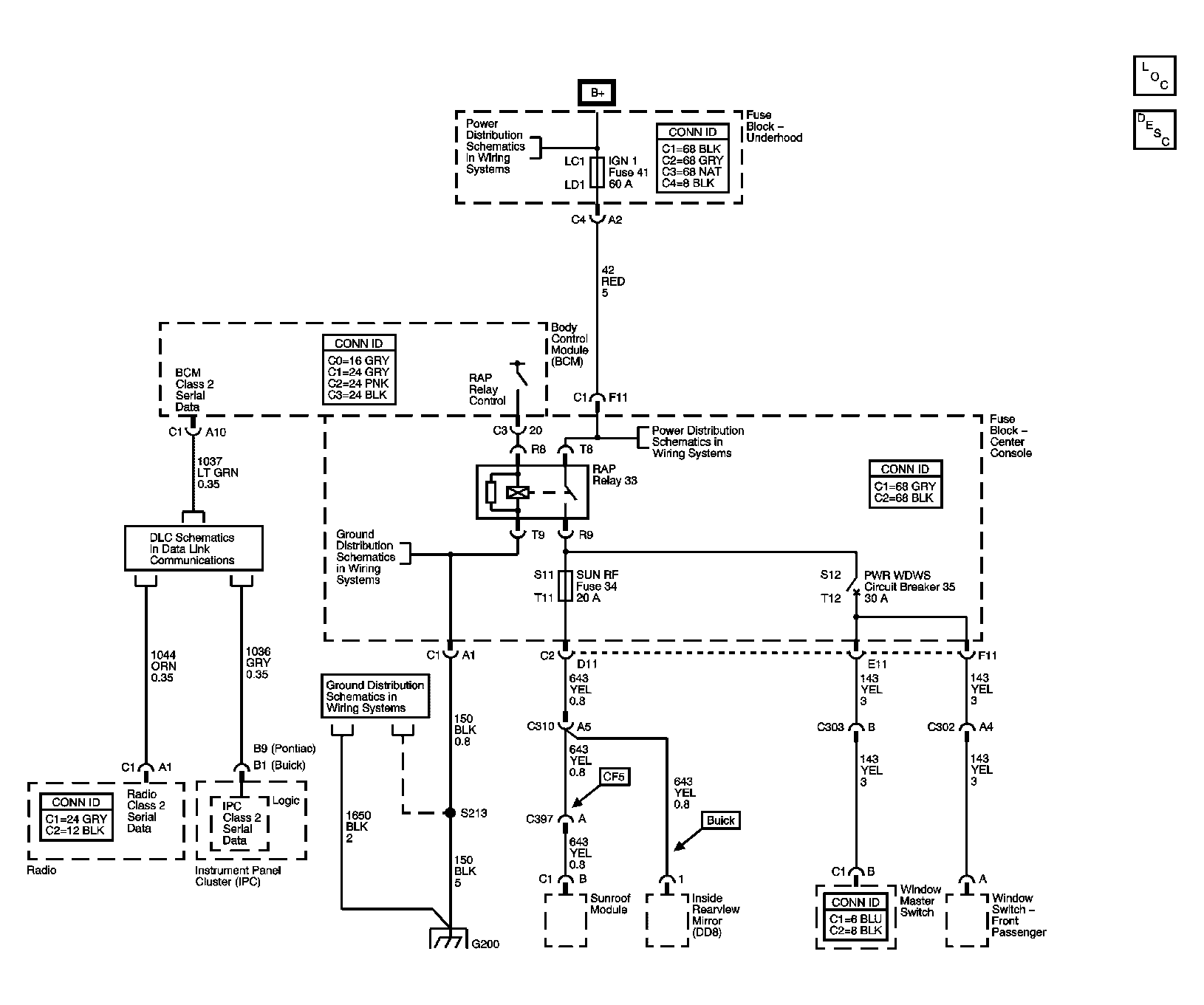

Fig 1: Retained Accessory Power (RAP) Schematic

GM629232

Courtesy of GENERAL MOTORS CORP.
