Door Lock/Indicator Schematics

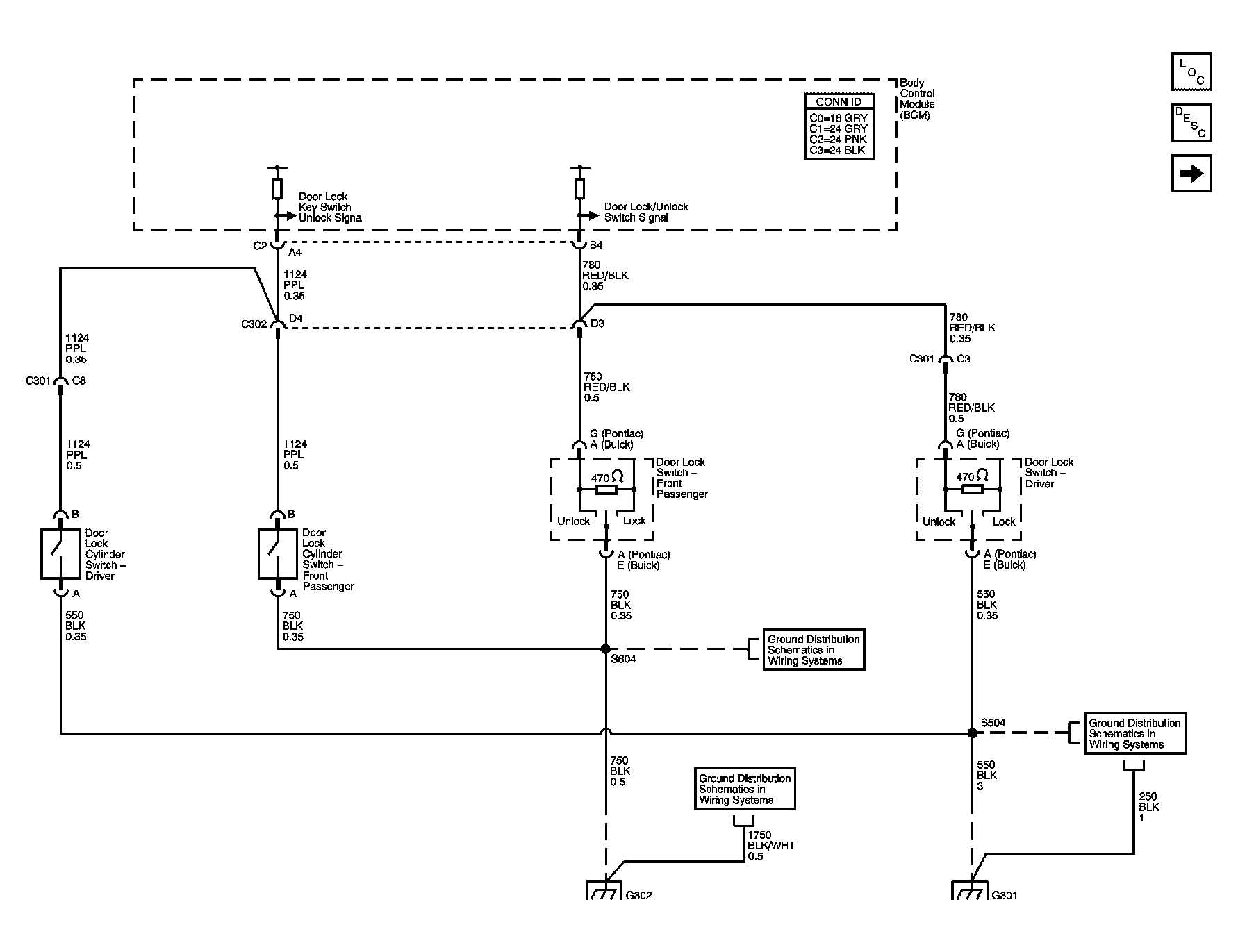

Fig 1: Door Lock Switches Schematic
GM830559Courtesy of GENERAL MOTORS CORP.

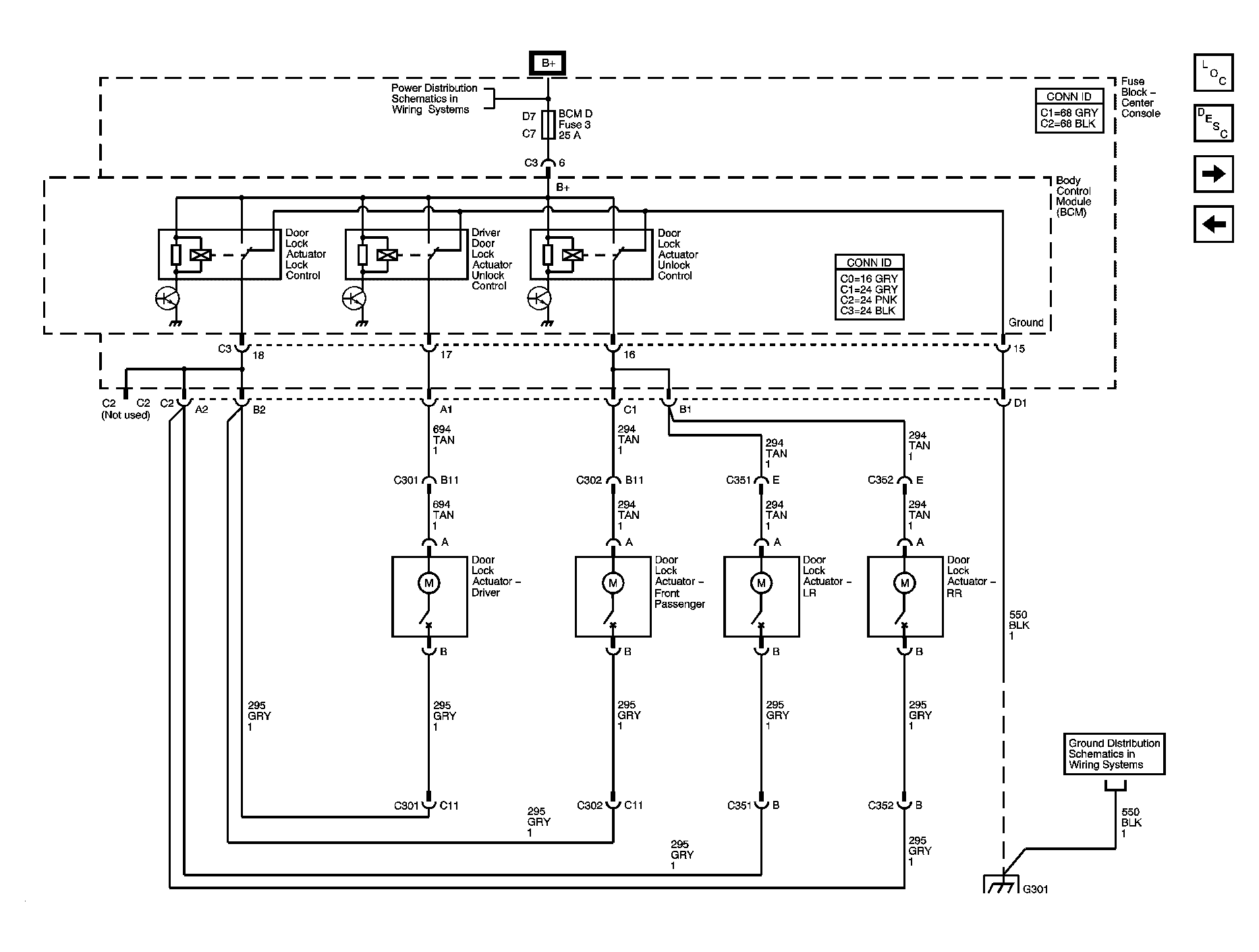

Fig 2: Door Lock Actuators Schematic
GM629507Courtesy of GENERAL MOTORS CORP.

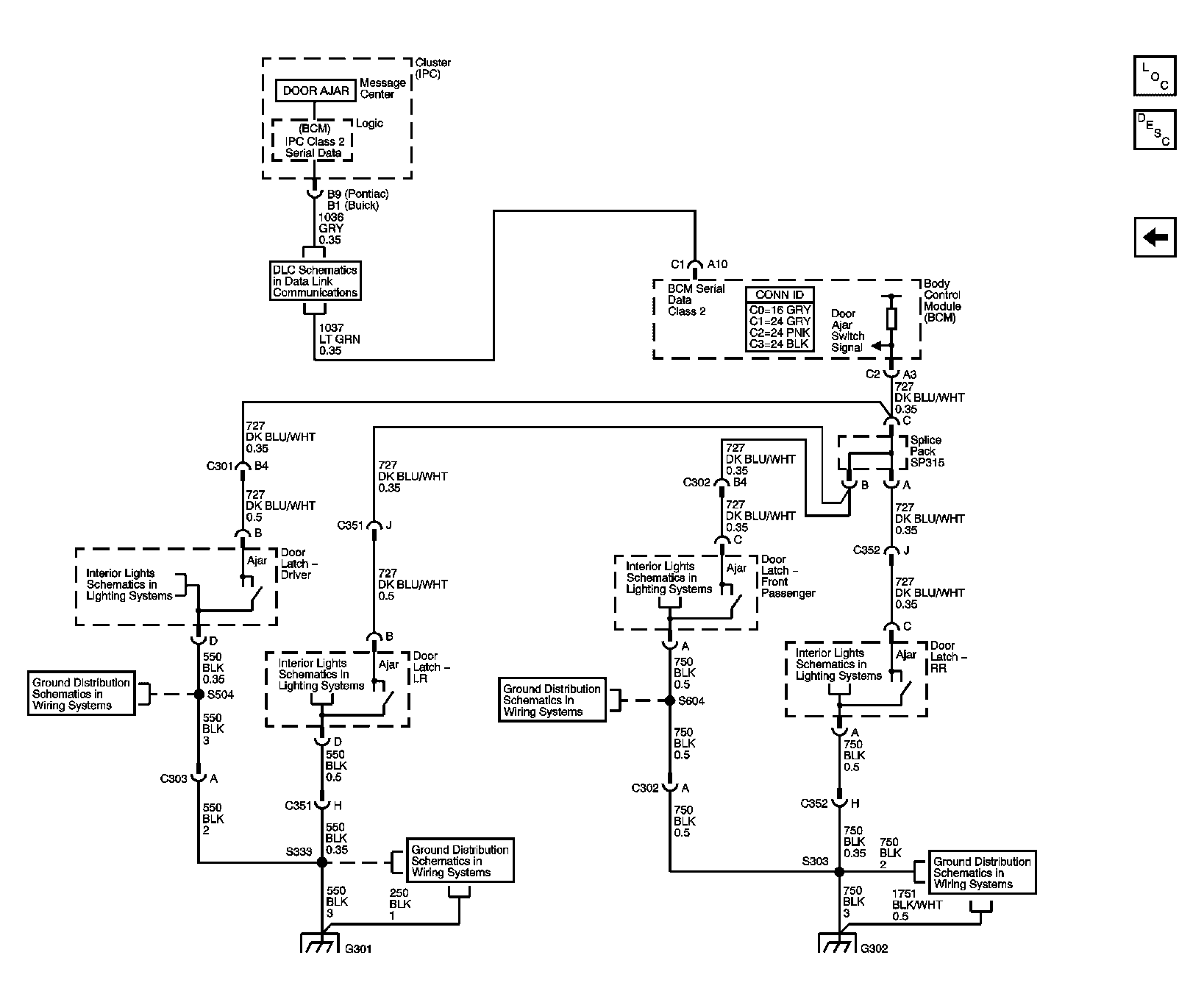

Fig 3: Door Ajar Indicator Schematic
GM813485Courtesy of GENERAL MOTORS CORP.
