Installation Procedure

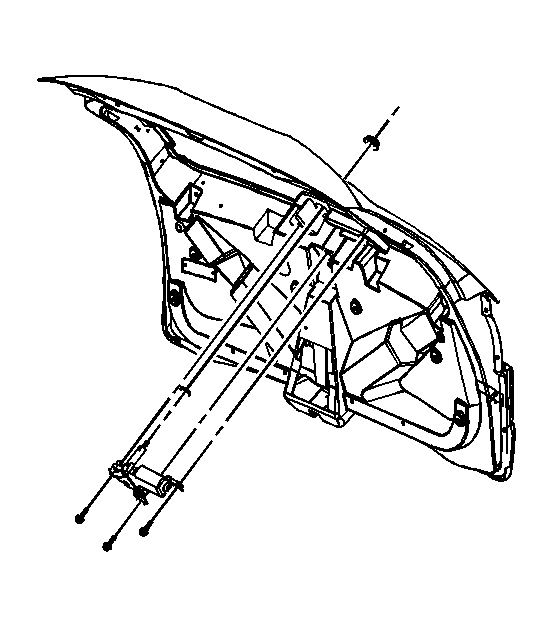

    Fig 1: View Of Rear Wiper Motor Components
    GM755866Courtesy of GENERAL MOTORS CORP.
  1. Connect the rear wiper motor electrical connector.
  2. Position the rear wiper motor to the liftgate.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the rear wiper motor screws.

    Tighten:  Tighten the screws to 6 N.m (53 lb in).

  4. Install the liftgate access trim panel.
  5. Install the seal onto the rear wiper motor driveshaft.
  6. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
