Removal Procedure

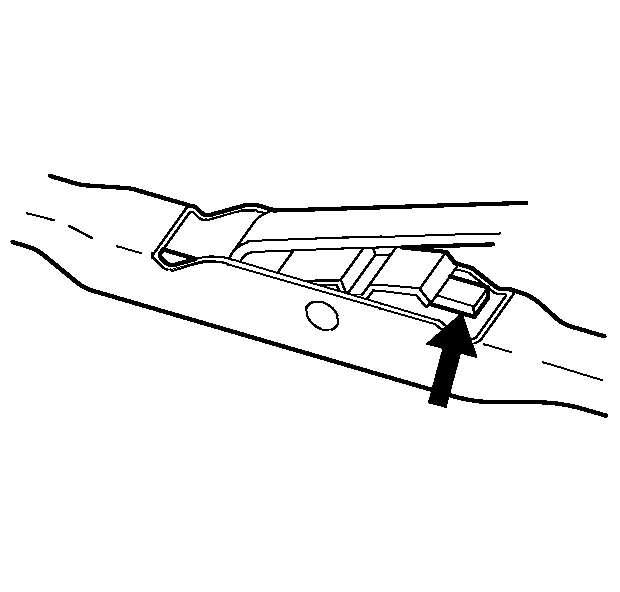

    Fig 1: Identifying Wiper Blade Release Clip
    GM497480Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition switch to the ACCY position.
  2. Turn the wiper switch to the DELAY position.
  3. Turn the ignition OFF when the wipers are in the innerwipe position and not moving.
  4. Push in the button of the wiper blade clip and remove the wiper blade from the inside radius of the wiper arm.
    5. Fig 2: Removing & Installing Wiper Blade At Wiper Arm Hook
    GM497492Courtesy of GENERAL MOTORS CORP.
  5. Bring the wiper arm out through the opening in the wiper blade.
