Removal Procedure

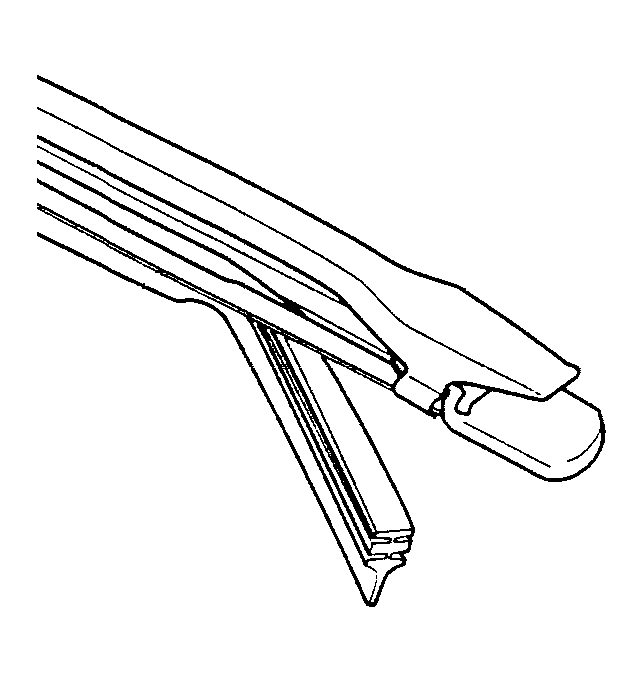

    Fig 1: Identifying Rear Wiper Blade
    GM512042Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear wiper blade from the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
  2. Remove the rubber wiper element from the element vertebra.

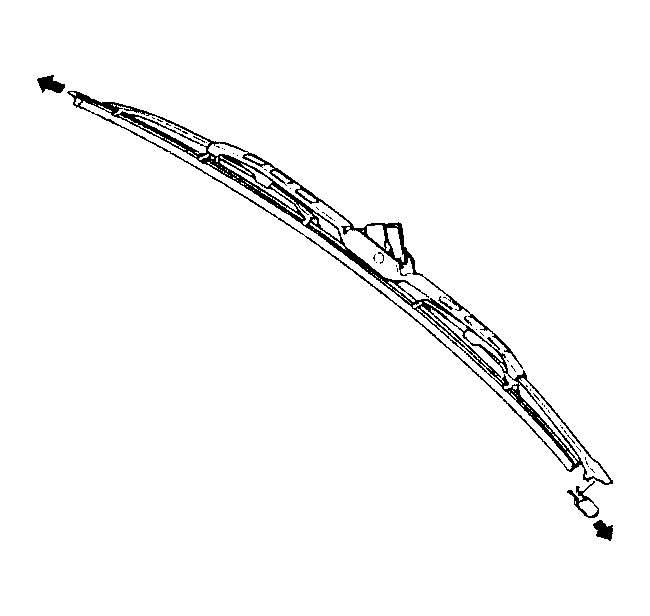

    3. Fig 2: Locating Rear Wiper Blade End Cap
    GM512043Courtesy of GENERAL MOTORS CORP.
  3. Remove the element vertebra and end cap from the rear wiper blade.
