Range Selector Displays Incorrect Range (3.6L): Notes

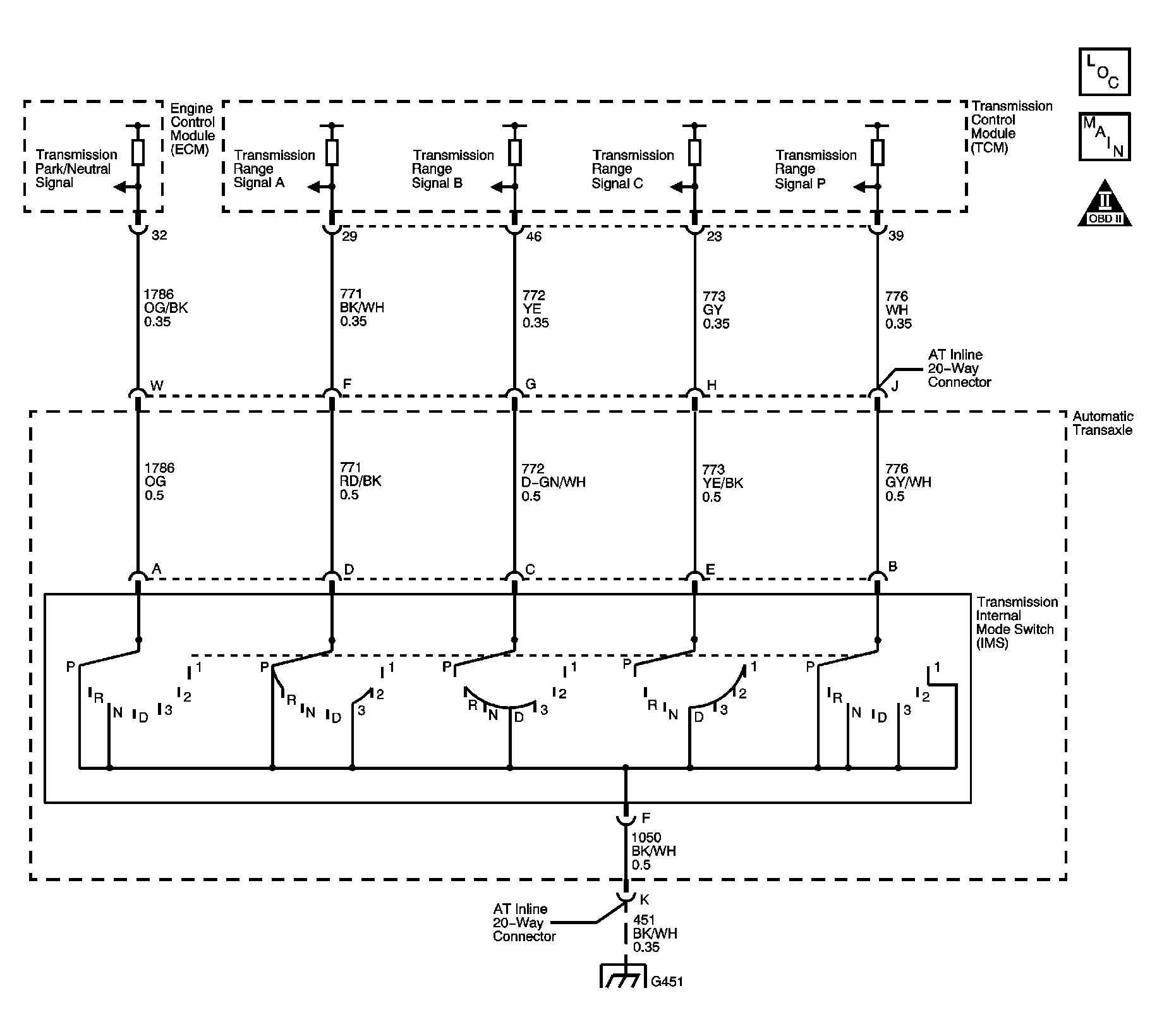

Fig 1: Transmission Internal Mode Switch (IMS) Schematic

GM1201827

Courtesy of GENERAL MOTORS CORP.
