Fuse Block - Underhood, Bottom View

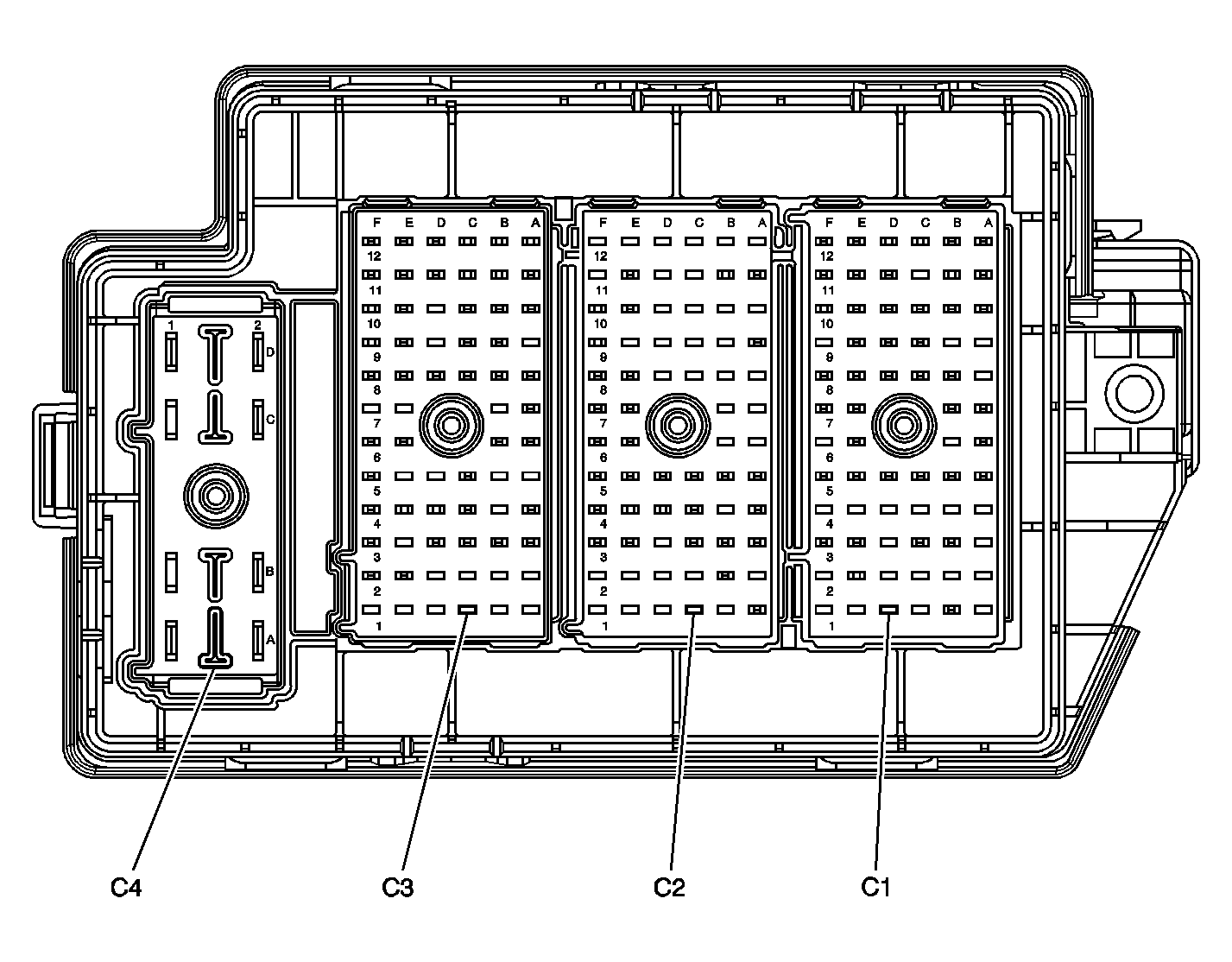

Fig 1: Fuse Block Identification View - Underhood, Bottom View
GM629462Courtesy of GENERAL MOTORS CORP.
Fuse Block Identification View - Underhood C1

GM647951Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319896
  • 68-Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A1-A11 - - Not Used
A12 RD 1442 Battery Positive Voltage (JL9)
B1 YE/BK 625 Starter Enable Relay Control
B2 - - Not Used
B3 PU 6 Starter Solenoid Crank Voltage
B4-B9 - - Not Used
B10 BK/WH 451 Ground
B11-B12 - - Not Used
C1-C2 - - Not Used
C3 PK 5290 Ignition 1 Voltage
C4-C7 - - Not Used
C8 PK 339 Ignition 1 Voltage
C9-C10 - - Not Used
C11 BN 5069 Engine Controls Main Relay Control (LY7)
C12 D- GN/WH 465 Fuel Pump Relay Control
D1-D4 - - Not Used
D5 OG 540 Battery Positive Voltage
D6-D8 - - Not Used
D9 PK 1039 Ignition 1 Voltage (JL9)
D10-D11 - - Not Used
D12 PK/BK 1339 Ignition 1 Voltage
E1 - - Not Used
E2 OG 4340 Battery Positive Voltage
E3 OG 1740 Battery Positive Voltage (JL9)
E4 - - Not Used
E5 D- GN/WH 459 A/C Clutch Relay Control
E6 PK 839 Ignition 1 Voltage
E7 - - Not Used
E8 D- GN 335 Low Speed Cooling Fan Relay Control
E9 PK/BK 839 Ignition 1 Voltage
E10-E11 - - Not Used
E12 PK/BK 639 Ignition 1 Voltage
F1-F2 - - Not Used
F3 D- BU 473 High Speed Cooling Fan 2 Relay Control
F4 PK 139 Ignition 1 Voltage
F5 D- GN 59 A/C Compressor Clutch Supply Voltage
F6 BK/WH 1050 Ground
F7 - - Not Used
F8 PK 439 Ignition 1 Voltage
F9-F11 - - Not Used
F12 PK/BK 239 Ignition 1 Voltage

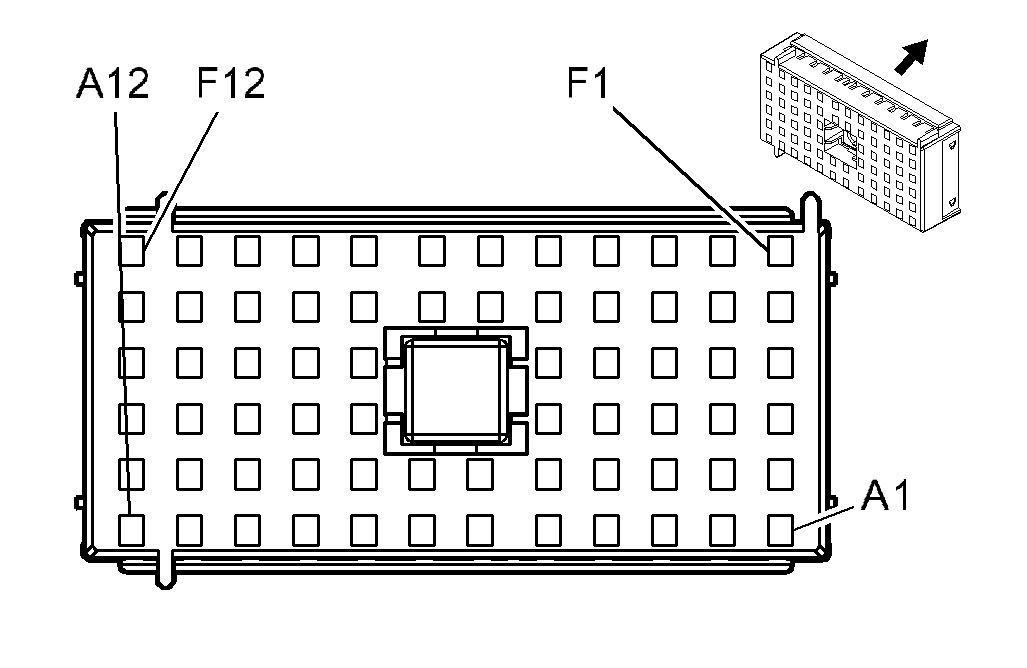

Fuse Block Identification View - Underhood C2

GM684889Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319895
  • 68-Way F Metri-Pack 280 Series Flexlock (MD GY)
Pin Wire Color Circuit No. Function
A1 WH 504 Cooling Fan Motor 1 Ground
A2-A3 - - Not Used
A4 D- GN 29 Horn Control
D- GN 29 Horn Control (Buick Only)
A5-A12 - - Not Used
B1 - - Not Used
B2 L- BU 409 Cooling Fan Motor 2 Supply Voltage
B3 BK 1250 Ground
B4-B12 - - Not Used
C1-C3 - - Not Used
C4 D- BU 593 DRL Headlamp High Beam Supply Voltage
C5-C12 - - Not Used
D1-D4 - - Not Used
D5 TN/WH 312 Right Headlamp Low Beam Supply Voltage
D6-D12 - - Not Used
E1-E4 - - Not Used
E5 YE 712 Left Headlamp Low Beam Supply Voltage
E6 - - Not Used
E7 BN 9 Park Lamp Supply Voltage
E8 PU 34 Front Fog Lamps Supply Voltage
PU 34 Front Fog Lamps Supply Voltage
E9-E10 - - Not Used
E11 L- BU 14 Left Turn Signal Lamps Supply Voltage
E12 - - Not Used
F1-F2 - - Not Used
F3 L- GN/BK 311 Right Headlamp High Beam Supply Voltage
F4 - - Not Used
F5 D- GN/WH 711 Left Headlamp High Beam Supply Voltage
F6 - - Not Used
F7 BN 9 Park Lamp Supply Voltage
F8 - - Not Used
F9 D- BU 15 Right Turn Signal Lamps Supply Voltage
F10 GY 532 Cooling Fan Motor Supply Voltage
F11-F12 - - Not Used
Fuse Block Identification View - Underhood C3

GM647949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319894
  • 68-Way F Metri-Pack 280 Series Flexlock (WH)
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 OG 1040 Battery Positive Voltage
A5-A7 - - Not Used
A8 BK 28 Horn Relay Control
BK 28 Horn Relay Control (Buick Only)
A9-A10 - - Not Used
A11 L- BU 14 Left Turn Signal Lamps Supply Voltage
A12 - - Not Used
B1-B2 - - Not Used
B3 PK/WH 1970 Headlamp Low Beam Relay Control
B4-B7 - - Not Used
B8 WH 1080 Park Lamp Relay Control
B9 D- BU 15 Right Turn Signal Lamps Supply Voltage
B10-B12 - - Not Used
C1-C4 - - Not Used
C5 L- GN/BK 311 Right Headlamp High Beam Supply Voltage
C6-C7 - - Not Used
C8 BN 9 Park Lamp Supply Voltage
C9-C10 - - Not Used
C11 OG 4540 Battery Positive Voltage
C12 - - Not Used
D1-D2 - - Not Used
D3 BK/WH 1969 Headlamp High Beam Relay Control
D4 OG 4240 Battery Positive Voltage (w/U32)
D5-D12 - - Not Used
E1 - - Not Used
E2 OG 3240 Battery Positive Voltage
E3 - - Not Used
E4 OG 3340 Battery Positive Voltage
E5 - - Not Used
E6 D- GN/WH 1317 Fog Lamp Relay Control
E7-E8 - - Not Used
E9 PK 1439 Ignition 1 Voltage
E10 - - Not Used
E11 PK 39 Ignition 1 Voltage
E12 PK 3 Ignition 1 Voltage
F1 - - Not Used
F2 OG 2740 Battery Positive Voltage
F3 - - Not Used
F4 OG/BK 1786 Park/Neutral Signal
F5 L- GN/BK 592 DRL Relay Control
F6 PU 34 Front Fog Lamps Supply Voltage
F7-F10 - - Not Used
F11 PK 39 Ignition 1 Voltage
PK 39 Ignition 1 Voltage
F12 GY 120 Fuel Pump Supply Voltage

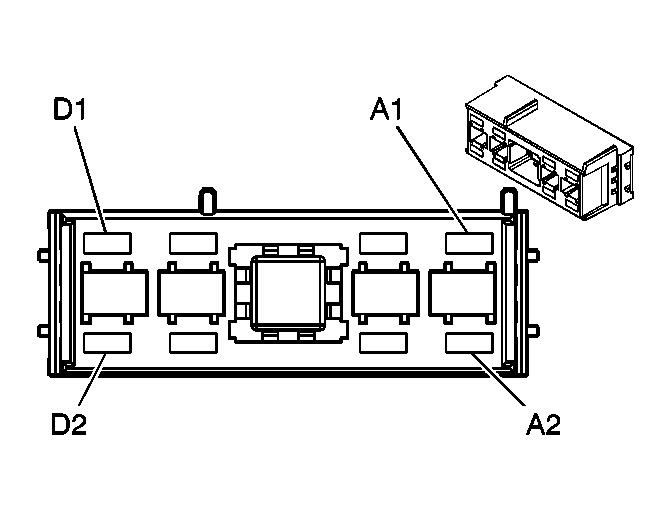

Fuse Block Identification View - Underhood C4

GM684927Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15329012
  • 8-Way F Metri-Pack 800 Series (BK)
Pin Wire Color Circuit No. Function
A1 RD 642 Battery Positive Voltage
A2 RD 42 Battery Positive Voltage
B1 - - Not Used
B2 RD 742 Battery Positive Voltage
C1 RD 442 Battery Positive Voltage
RD 442 Battery Positive Voltage
C2 - - Not Used
D1 RD 242 Battery Positive Voltage
D2 - - Not Used
