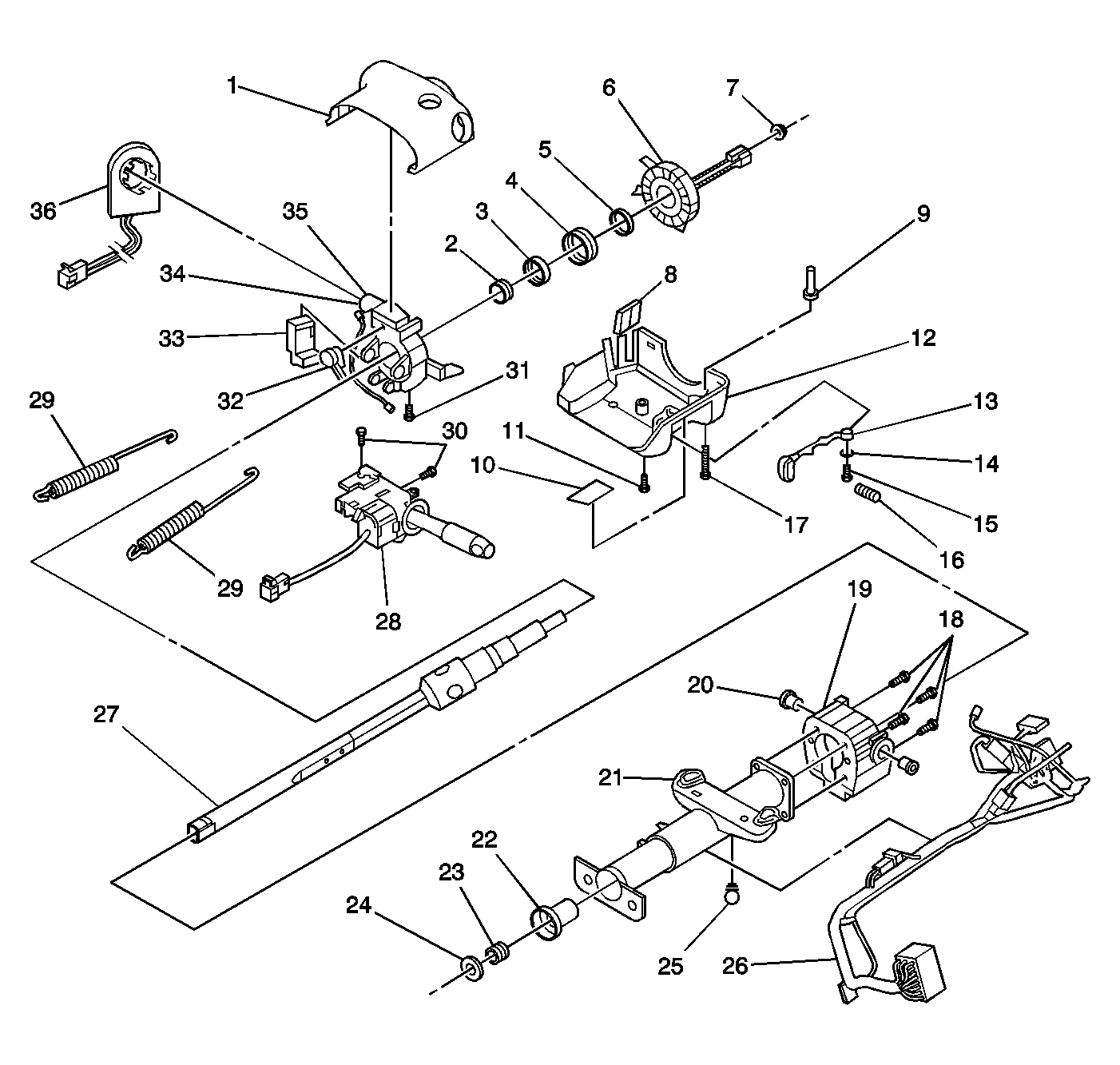

| 1 |
Upper Trim Cover |
| 2 |
Upper Bearing |
| 3 |
Upper Bearing Seat |
| 4 |
Steering Shaft Upper Bearing Spring |
| 5 |
Inflatable Restraint Steering Wheel Module Coil |
| 6 |
Bearing Retainer |
| 7 |
Steering Wheel Nut |
| 8 |
Trim Cover Protector |
| 9 |
Sleeve |
| 10 |
Cover, Housing Trim Extension |
| 11 |
Lower Trim Cover Screws |
| 12 |
Lower Trim Cover |
| 13 |
Tilt Lever |
| 14 |
Tilt Lever Spring |
| 15 |
Tilt Lever Bolt |
| 16 |
Tilt Lever Spring |
| 17 |
Lower Trim Cover Screw |
| 18 |
Lower Tilt Head Mounting Bolts |
| 19 |
Lower Tilt Head |
| 20 |
Tilt Head Pivot Pins |
| 21 |
Steering Column Jacket Assembly |
| 22 |
Adapter and Bearing Assembly |
| 23 |
Lower Bearing Seat |
| 24 |
Lower Bearing Retainer |
| 25 |
Wire Harness Retainer |
| 26 |
Wire Harness Assembly |
| 27 |
Shaft Assembly |
| 28 |
Multifunction Switch |
| 29 |
Tilt Head Springs |
| 30 |
Multifunction Switch Screws |
| 31 |
Trim Cover Screw |
| 32 |
Actuator, Automatic Transmission Shift Lock Control |
| 33 |
Ignition Switch |
| 34 |
Ignition Key Alarm Switch |
| 35 |
Upper Tilt Head |
| 36 |
Theft Deterrent Module |
