Wiper/Washer System Schematics

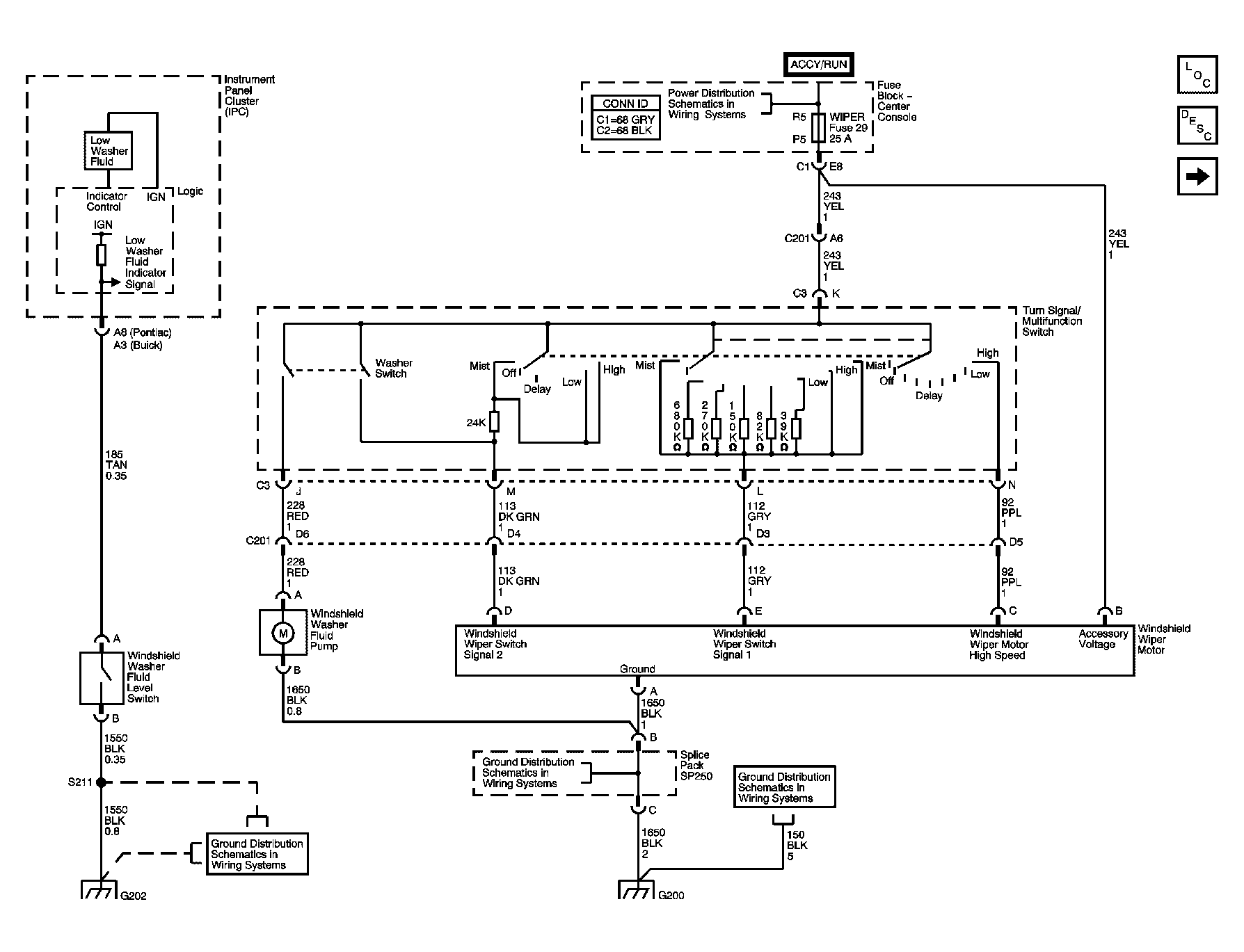

Fig 1: Windshield Wiper/Washer Schematic

GM628109

Courtesy of GENERAL MOTORS CORP.

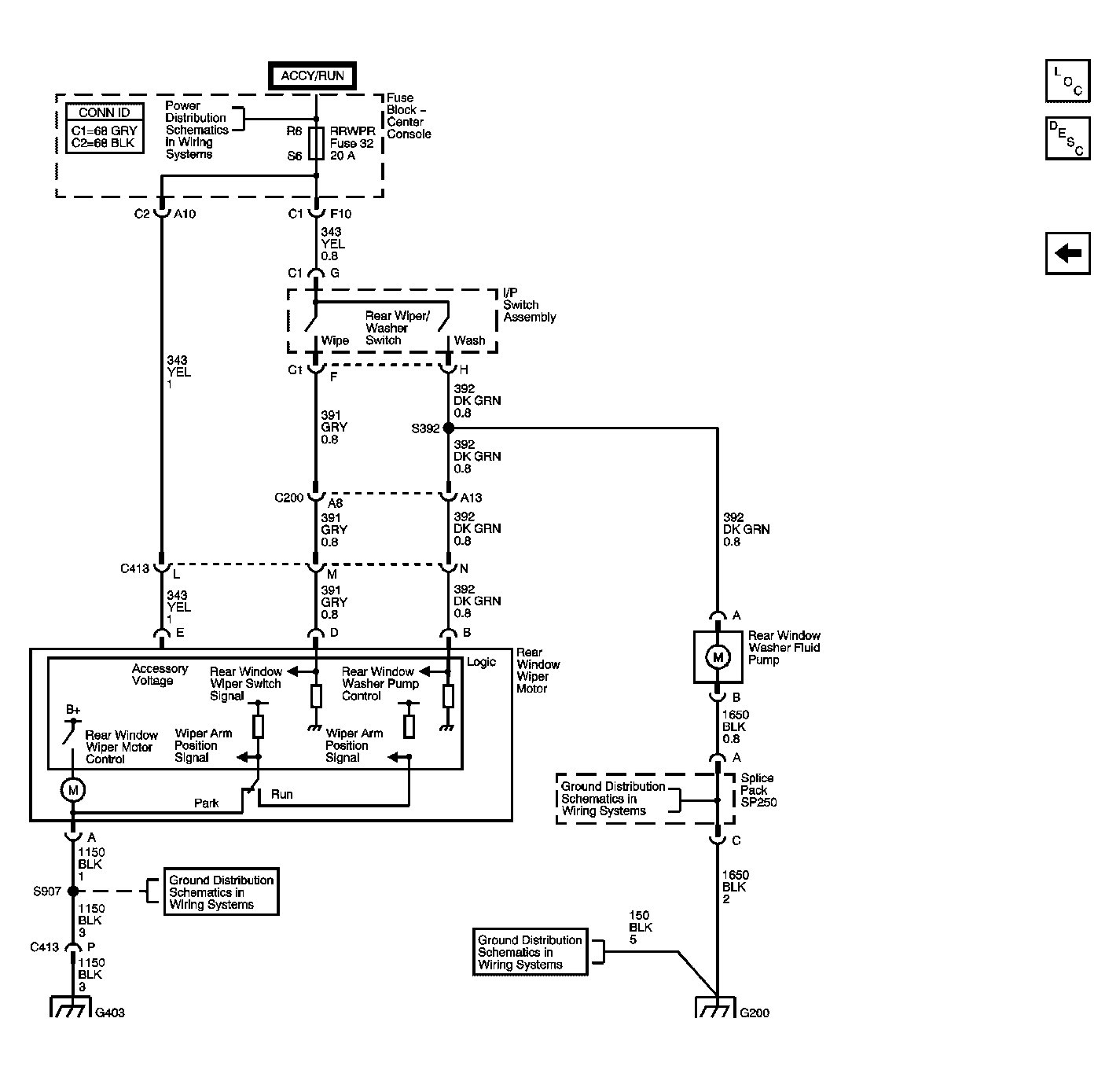

Fig 2: Rear Wiper/Washer Schematic

GM792011

Courtesy of GENERAL MOTORS CORP.
