Installation Procedure

  1. Lubricate the clutch release bearing using a thin coat of wheel bearing grease of GM P/N 1051344 (Canadian P/N 9930337) or the equivalent.
  2. Install the clutch release bearing to the clutch release fork.
  3. Install the clutch release bearing and the clutch release fork assembly onto the transaxle assembly.

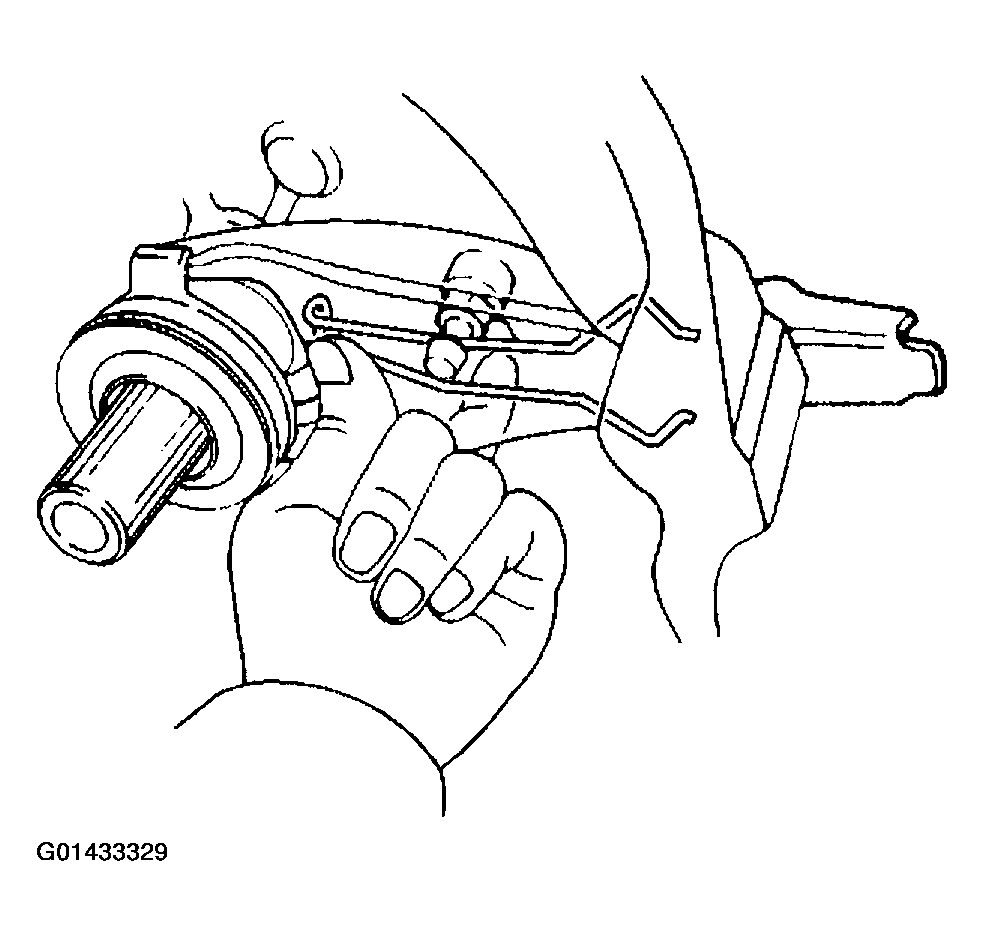

    Fig 1: Installing Clutch Release Bearing And Clutch Release Fork Assembly
    G01433329Courtesy of GENERAL MOTORS CORP.
  4. Install the manual transaxle from the vehicle. Refer to TRANSAXLE REPLACEMENT in Manual Transmission -MK5 or TRANSAXLE REPLACEMENT in Manual Transmission - MTN.
