Transfer Case - Vibe (Unit Repair)
>>
Specifications
>>
General Specifications
>>
Ring Gear Backlash Shim Selection
Ring Gear Backlash Shim Selection

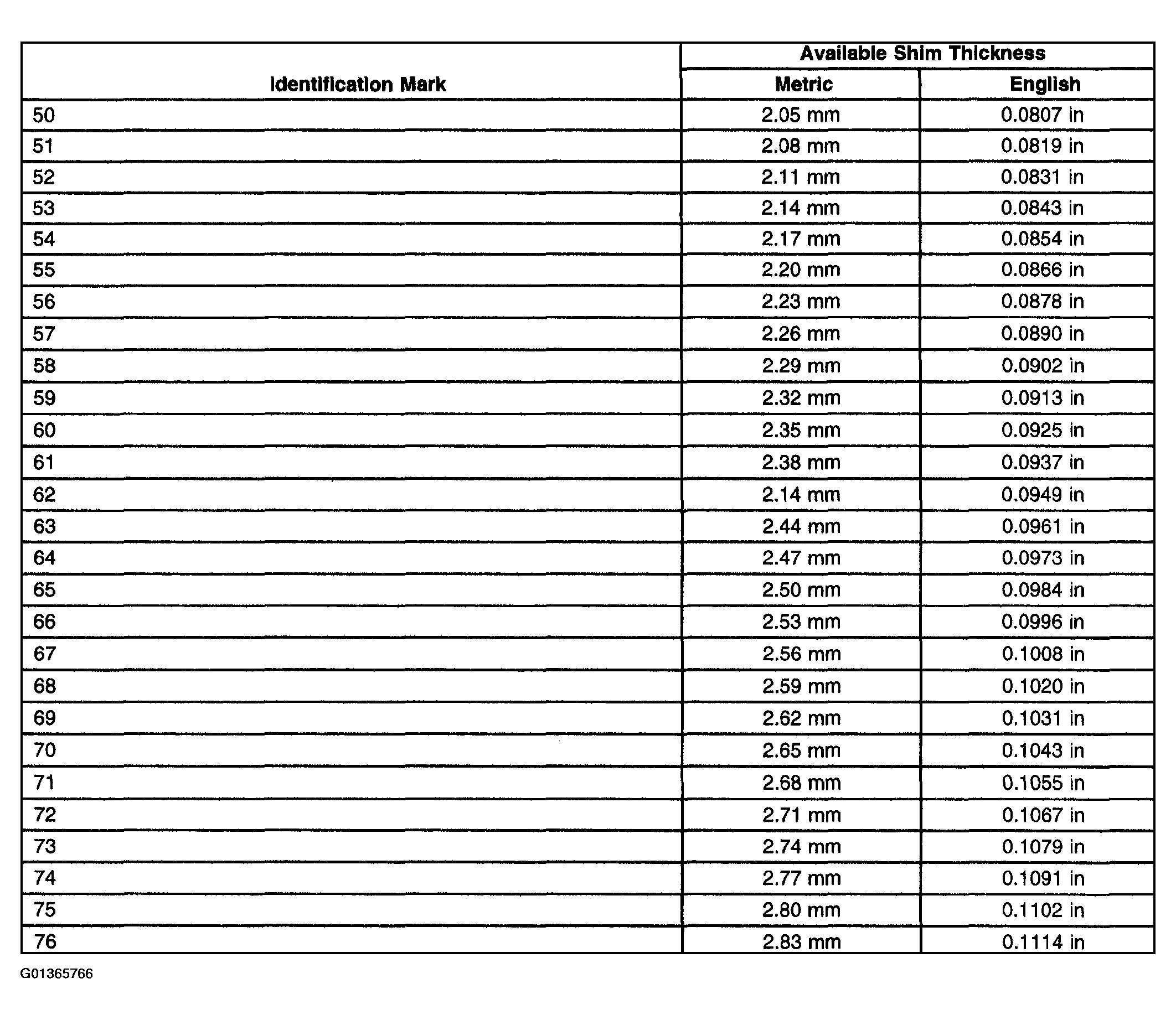

Fig 1: Ring Gear Backlash Shim Selection (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

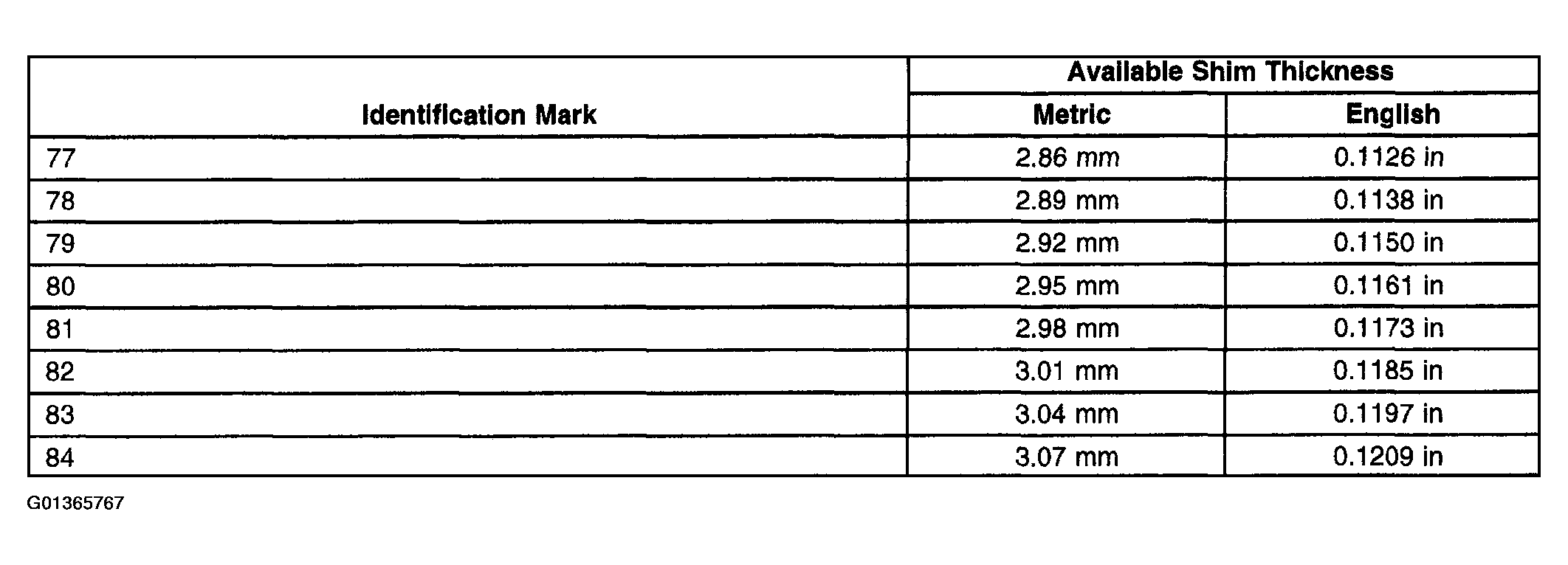

Fig 2: Ring Gear Backlash Shim Selection (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
