Home >> Pontiac >> 2003 >> Vibe Base, FWD, Automatic >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case - Vibe (Unit Repair) >> Specifications >> General Specifications >> Output Shaft Shim Selection

Output Shaft Shim Selection

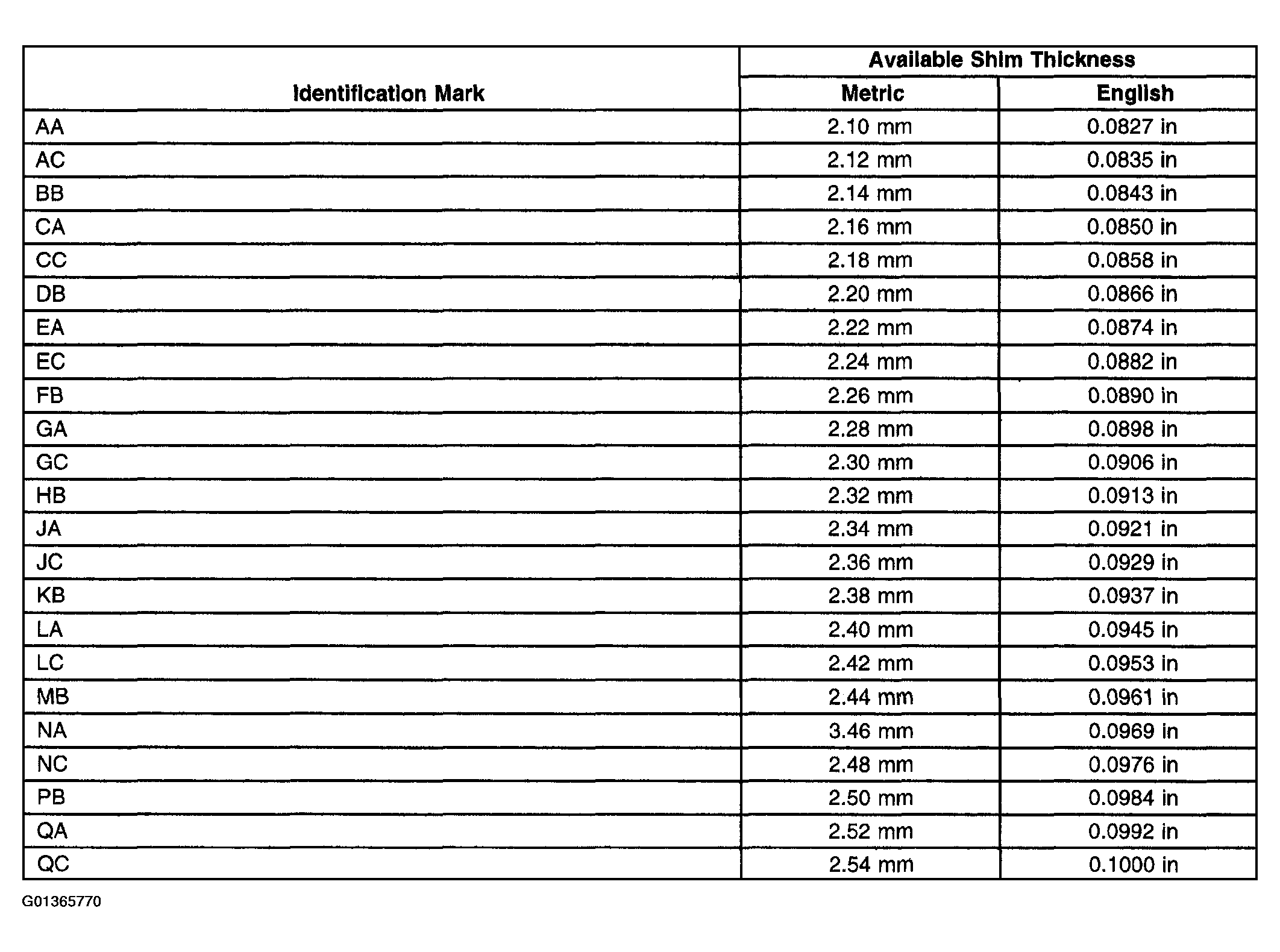

Fig 1: Output Shaft Shim Selection

G01365770

Courtesy of GENERAL MOTORS CORP.
