Checking Fluid Levels

Remove the transfer case oil level/fill plug (2) from the transfer case. See Fig 1 . The oil level should be even with the bottom of the oil level/fill plug hole. Reinstall fill plug. Tighten to specification. See TORQUE SPECIFICATIONS  .

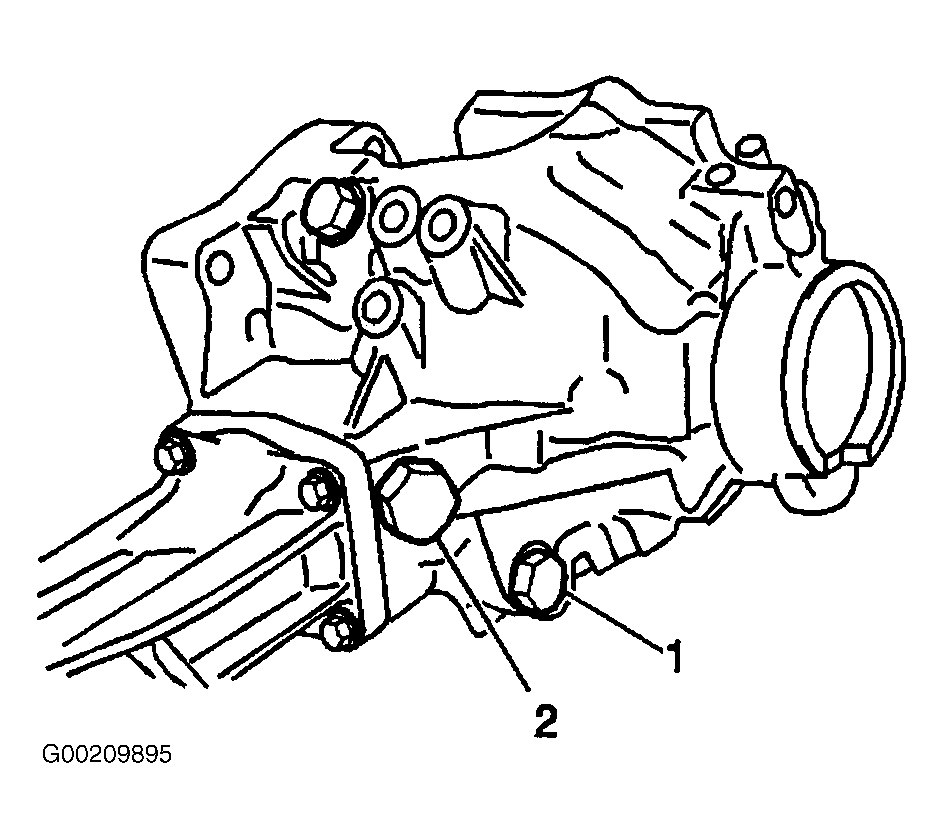

Fig 1: Locating Transfer Case Fill & Drain Plugs

Courtesy of GENERAL MOTORS CORP.
