Installation Procedure

  1. Install the manual selector into the vehicle. Secure the manual selector with 4 nuts.

    Tighten

    Tighten the manual selector bolts to 12N.m(12 lb ft).

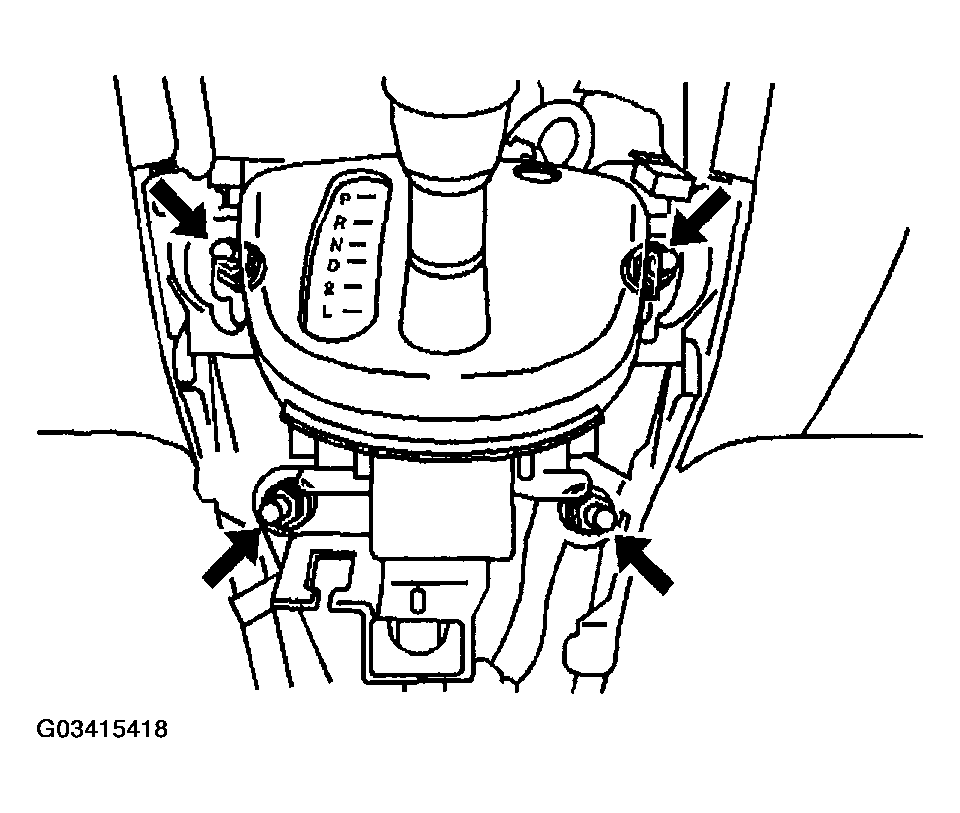

    Fig 1: Installing Manual Selector Into Vehicle Securing Manual Selector With 4 Nuts
    G03415418Courtesy of GENERAL MOTORS CORP.
  2. Connect the manual selector electrical connectors.

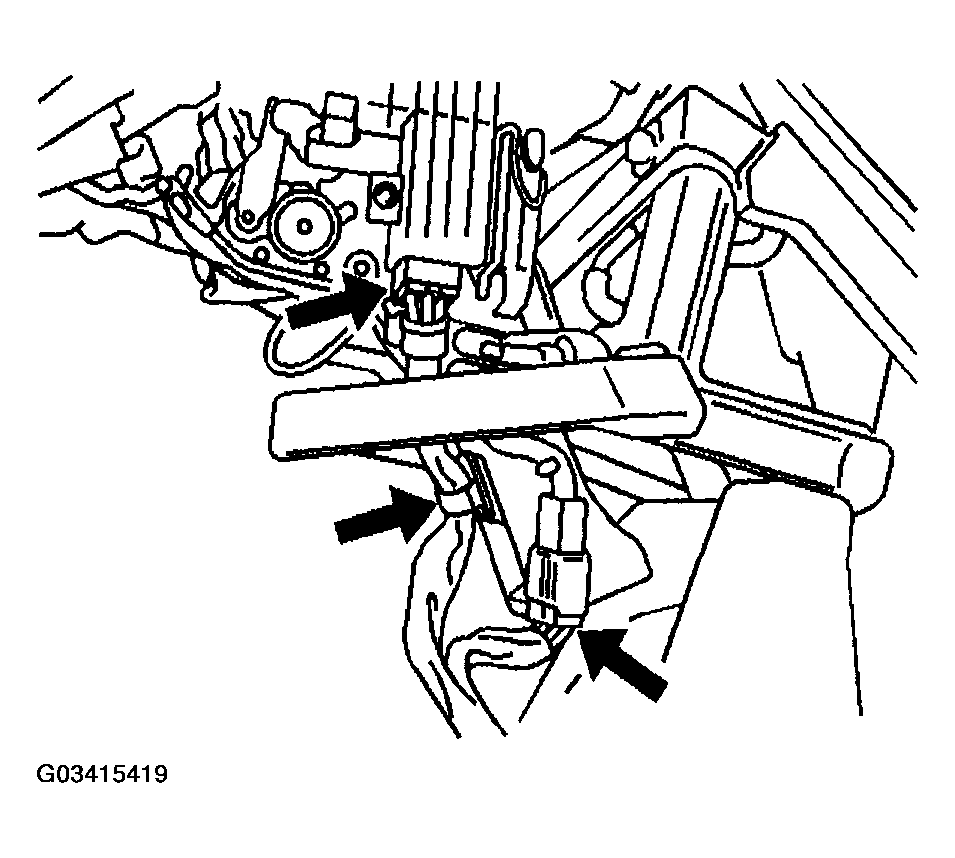

    Fig 2: Connecting Manual Selector Electrical Connectors
    G03415419Courtesy of GENERAL MOTORS CORP.
  3. Install the shift select cable into the shift lever plate.

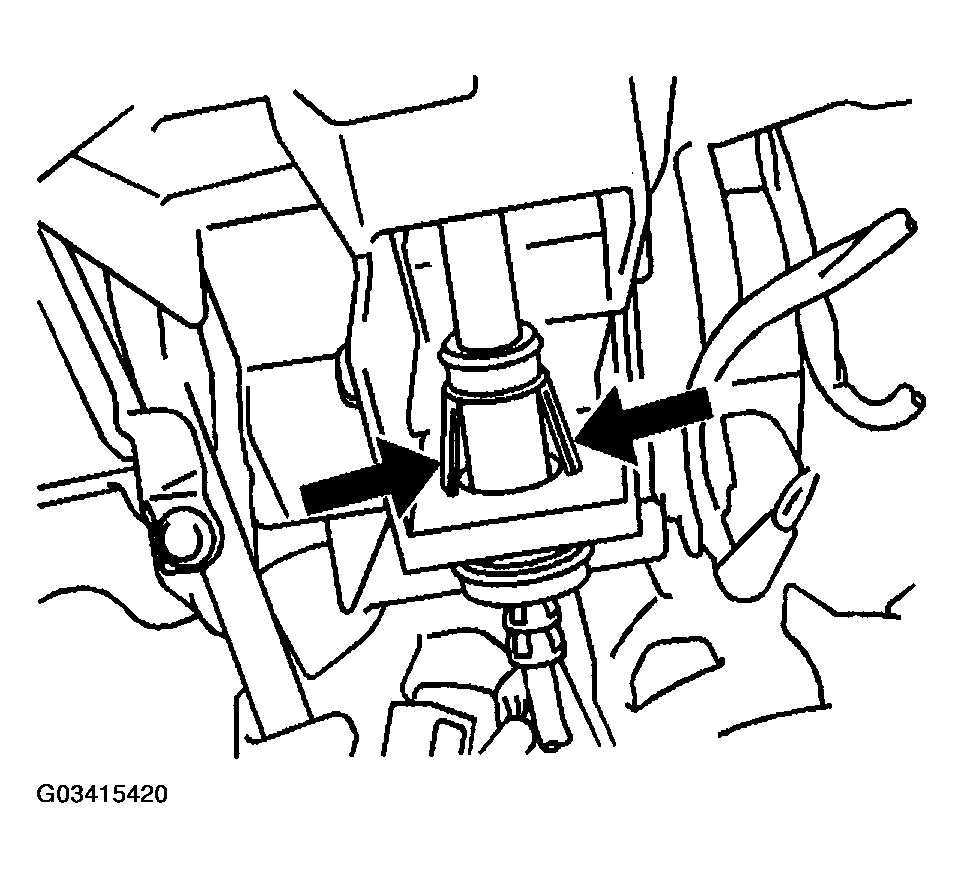

    Fig 3: Installing Shift Select Cable Into Shift Lever Plate
    G03415420Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift select cable to the manual selector lever.

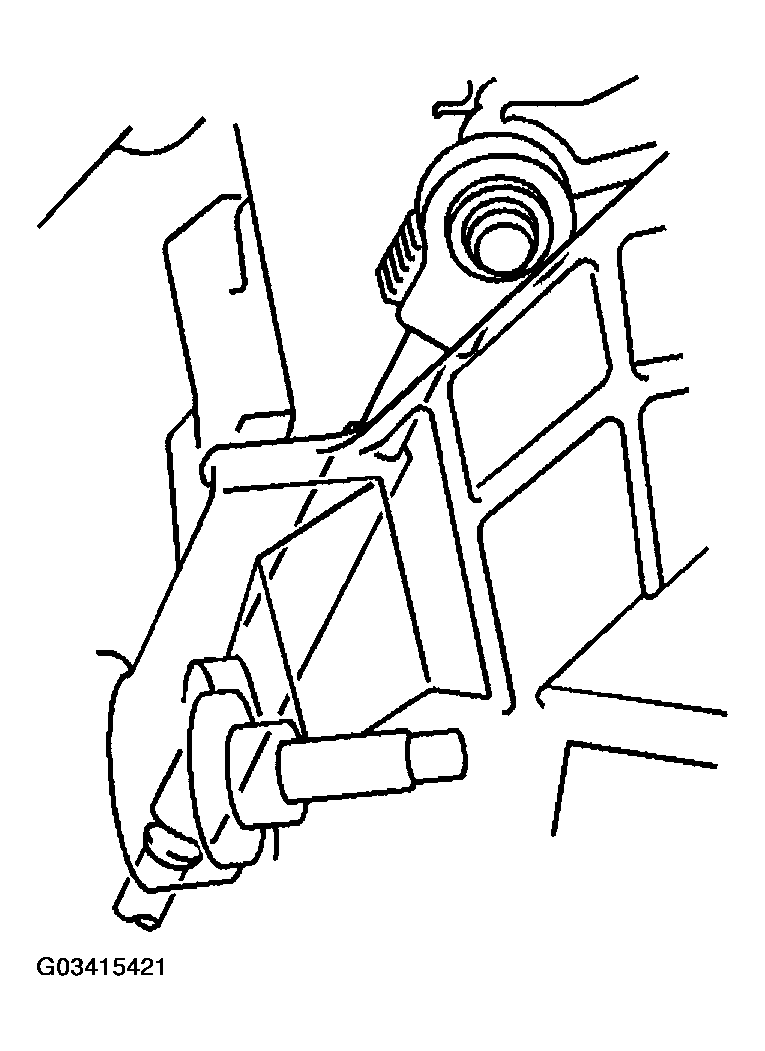

    Fig 4: Connecting Shift Select Cable To Manual Selector Lever
    G03415421Courtesy of GENERAL MOTORS CORP.
  5. Install the park lock cable to the shift lever plate.

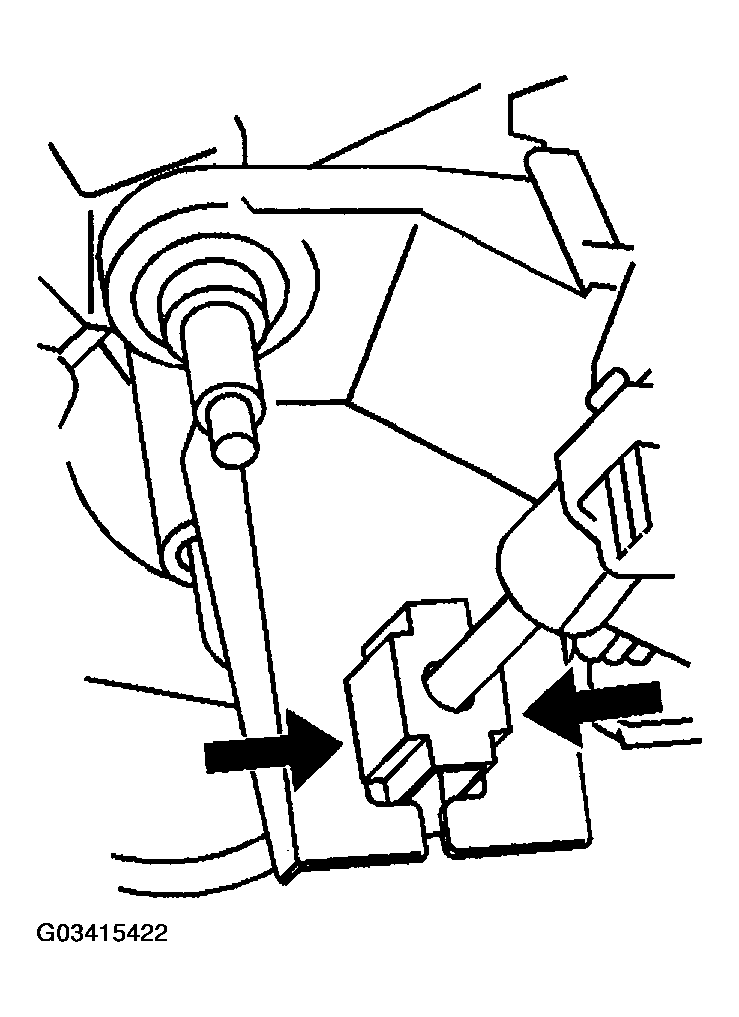

    Fig 5: Installing Park Lock Cable To Shift Lever Plate
    G03415422Courtesy of GENERAL MOTORS CORP.
  6. Connect the park lock cable to the manual selector lever.
  7. Install the center instrument trim panel. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY LEFT in Instrument Panel, Gages and Console.
  8. Install the instrument compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  9. Install the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.
  10. Connect the negative battery cable.

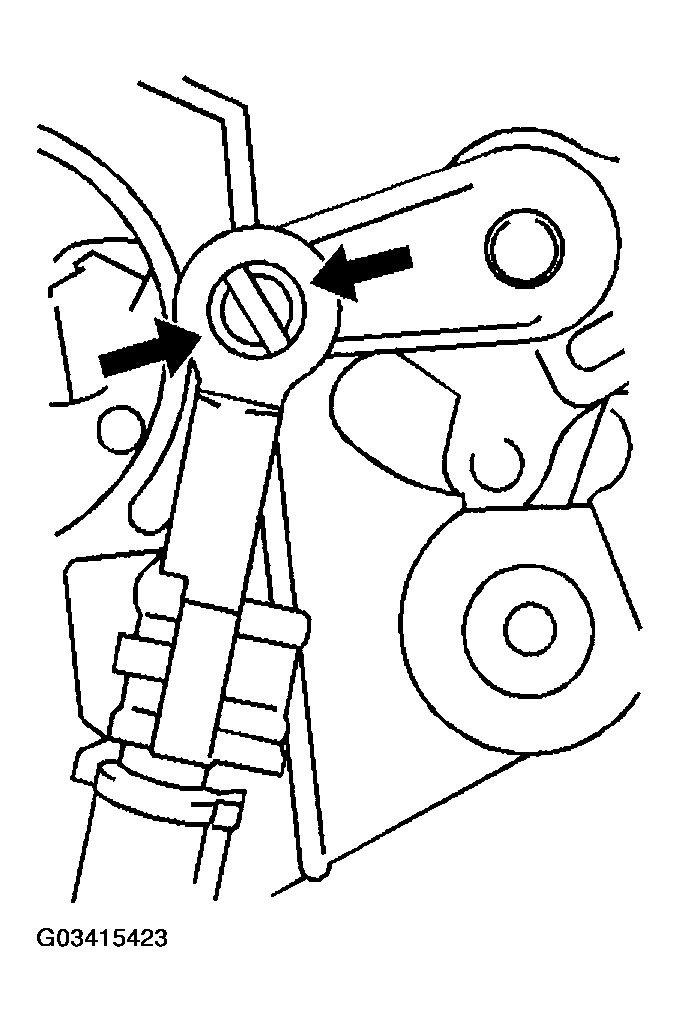

    Fig 6: Connecting Park Lock Cable To Manual Selector Lever
    G03415423Courtesy of GENERAL MOTORS CORP.
