Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the trim covers from the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Disconnect the ignition switch electrical connector.
  4. Remove the 2 screws (8,9) and the ignition switch (7).

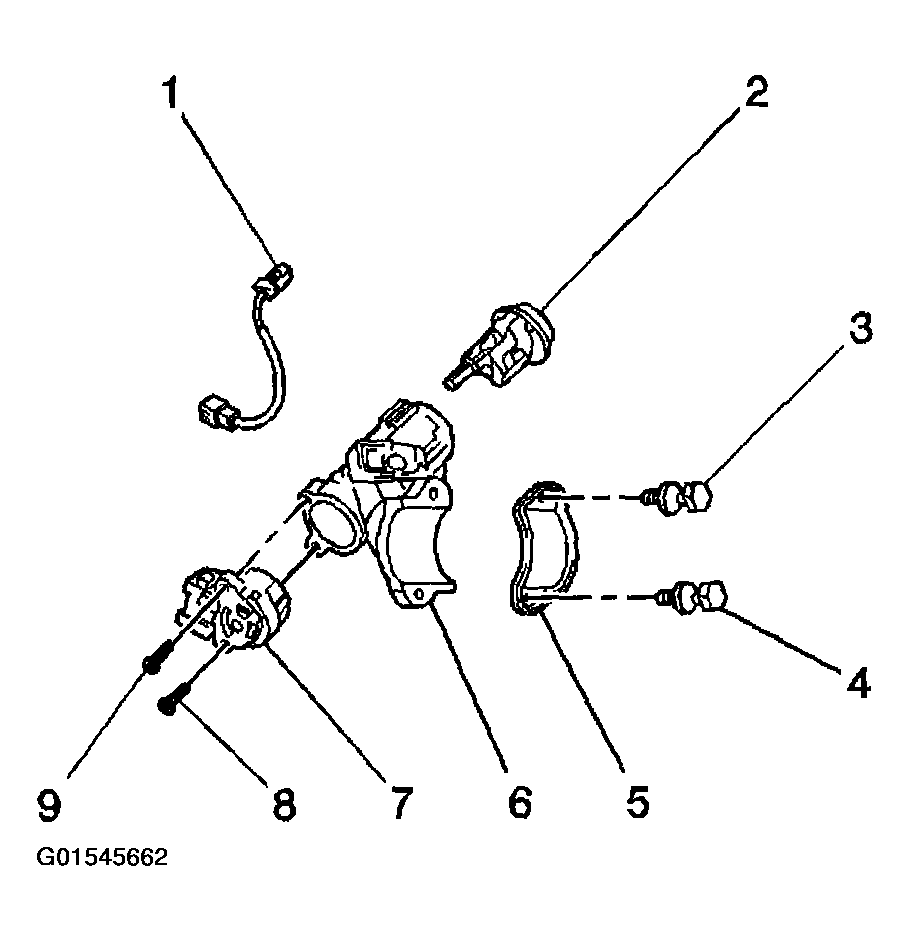

Fig 1: Removing Ignition Switch
G01545662Courtesy of GENERAL MOTORS CORP.
