Lock System Does Not Lock

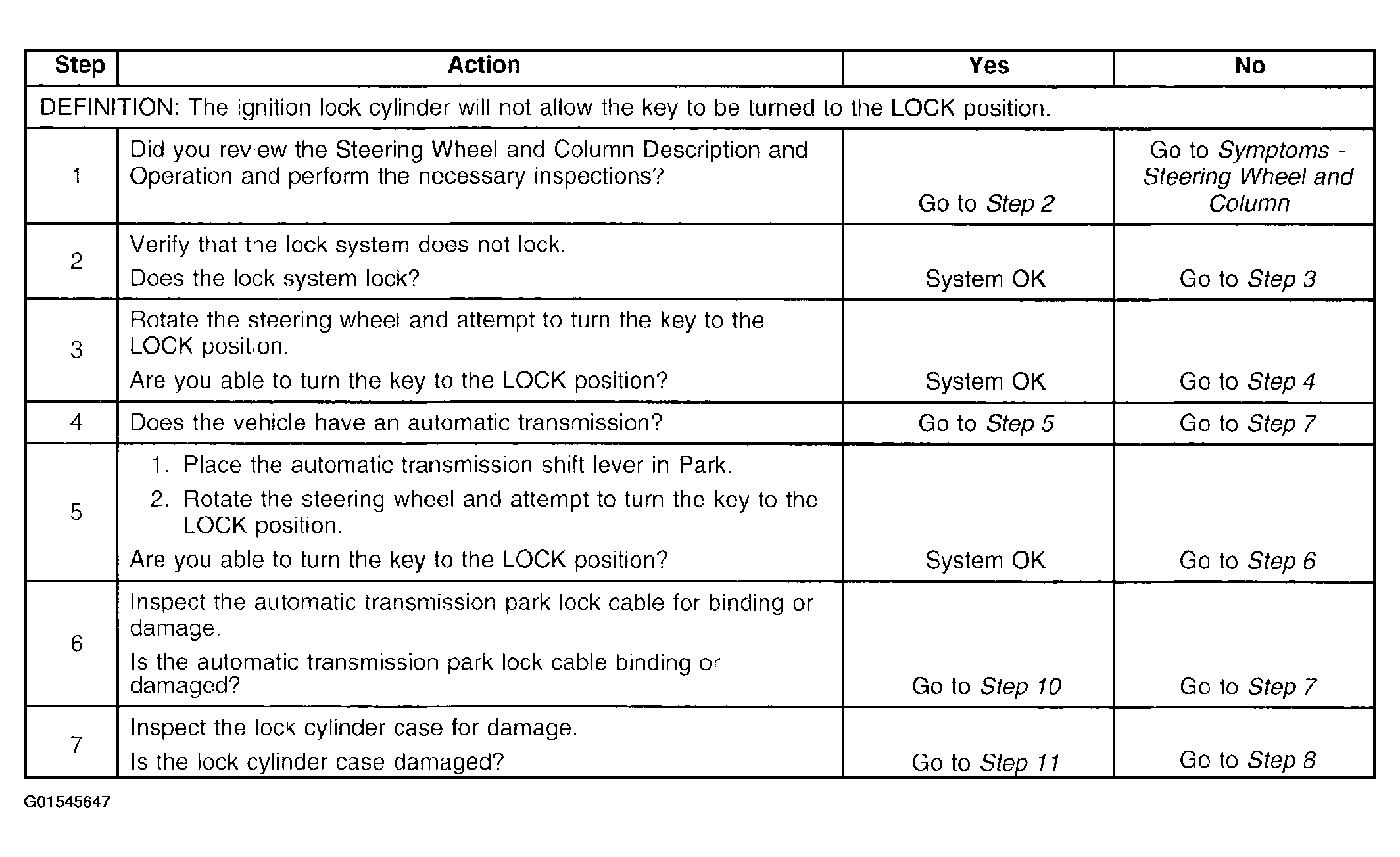

Fig 1: Lock System Does Not Lock Diagnostic Chart (Step 1-7)
G01545647Courtesy of GENERAL MOTORS CORP.

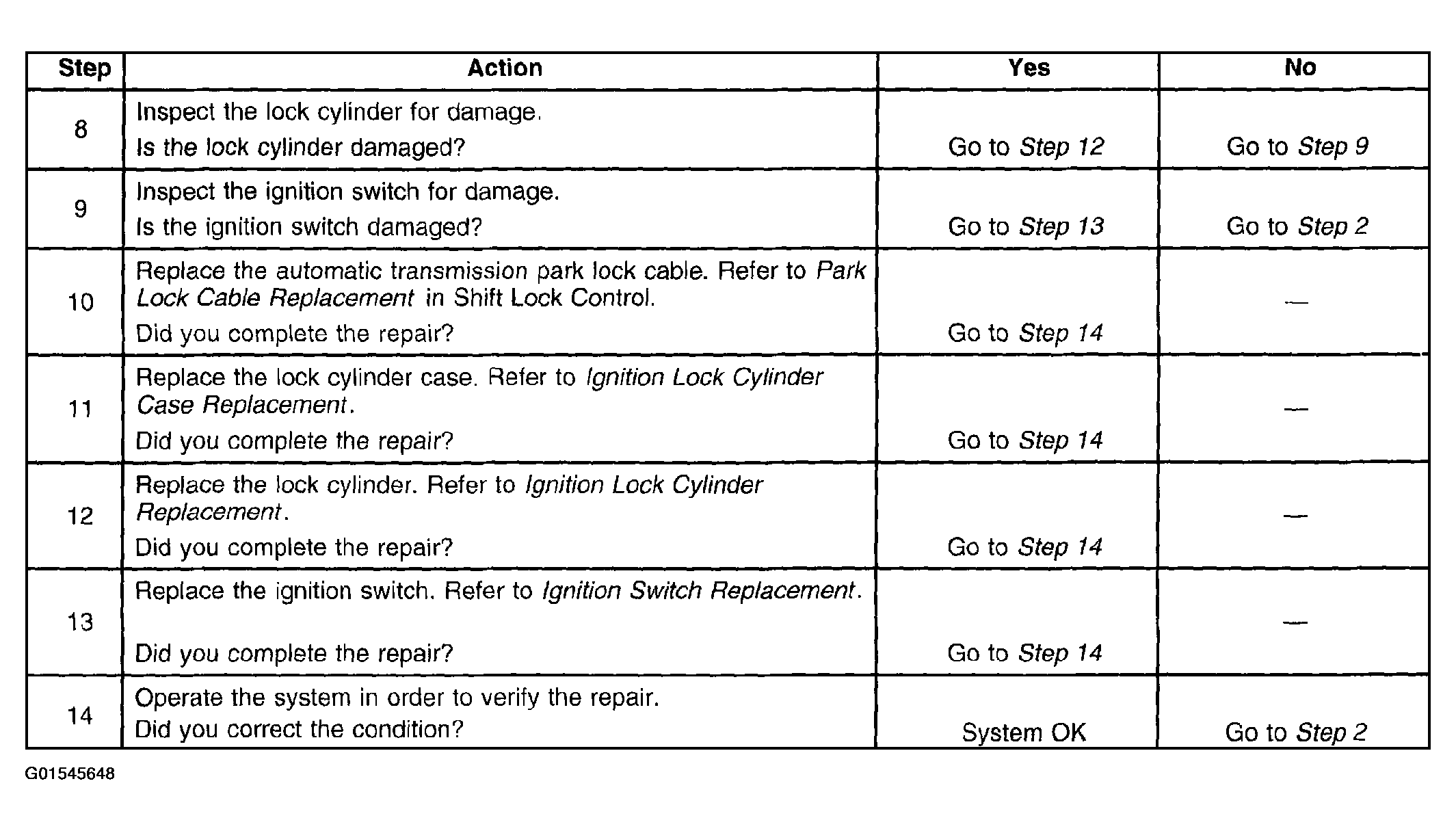

Fig 2: Lock System Does Not Lock Diagnostic Chart (Step 8-14)
G01545648Courtesy of GENERAL MOTORS CORP.
