Rear Wiper Relay Connector End View
Rear Wiper Relay Connector End View

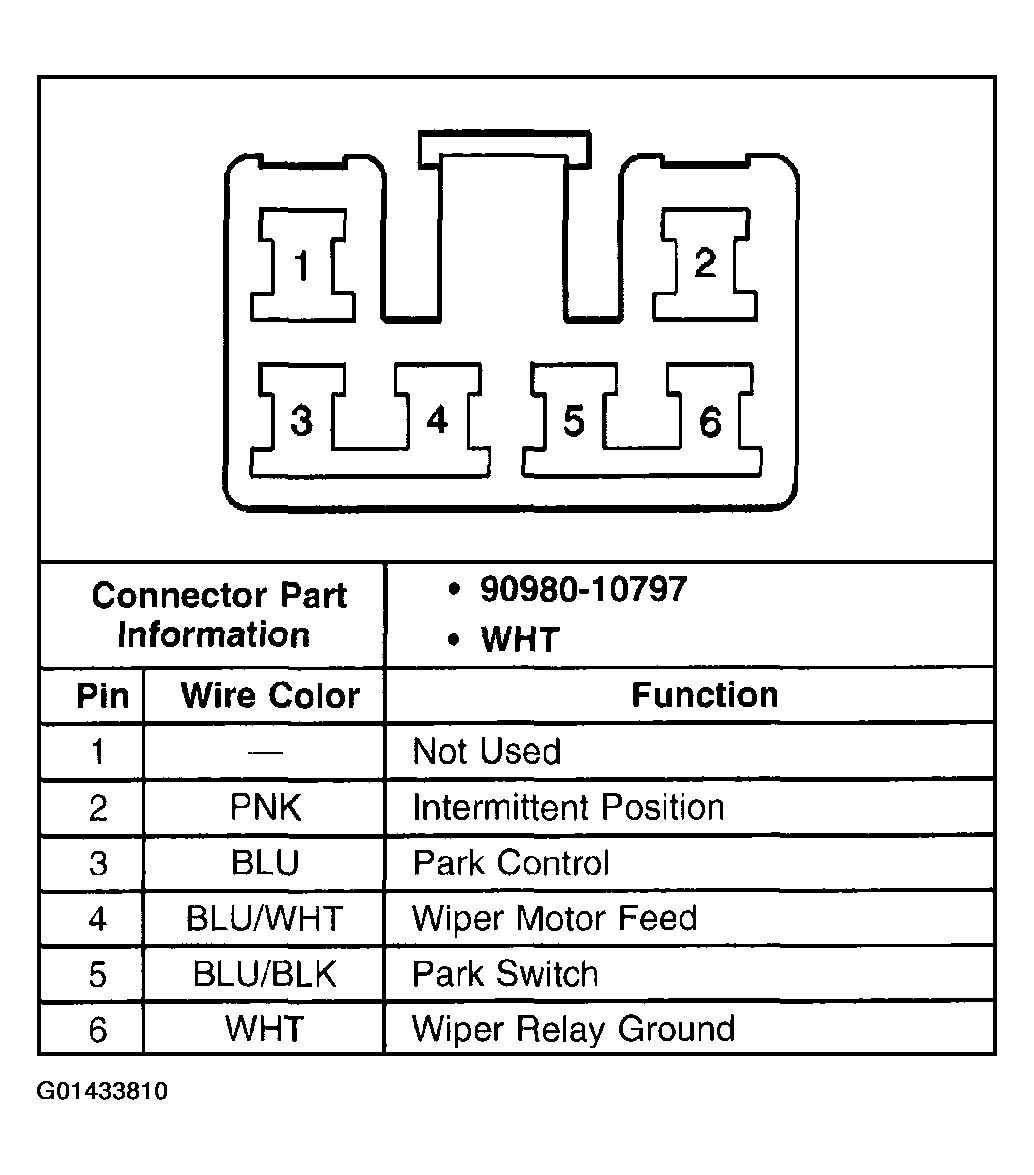

Fig 1: Rear Wiper Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
