Rear Hatch Glass Connector End View
Rear Hatch Glass Connector End View

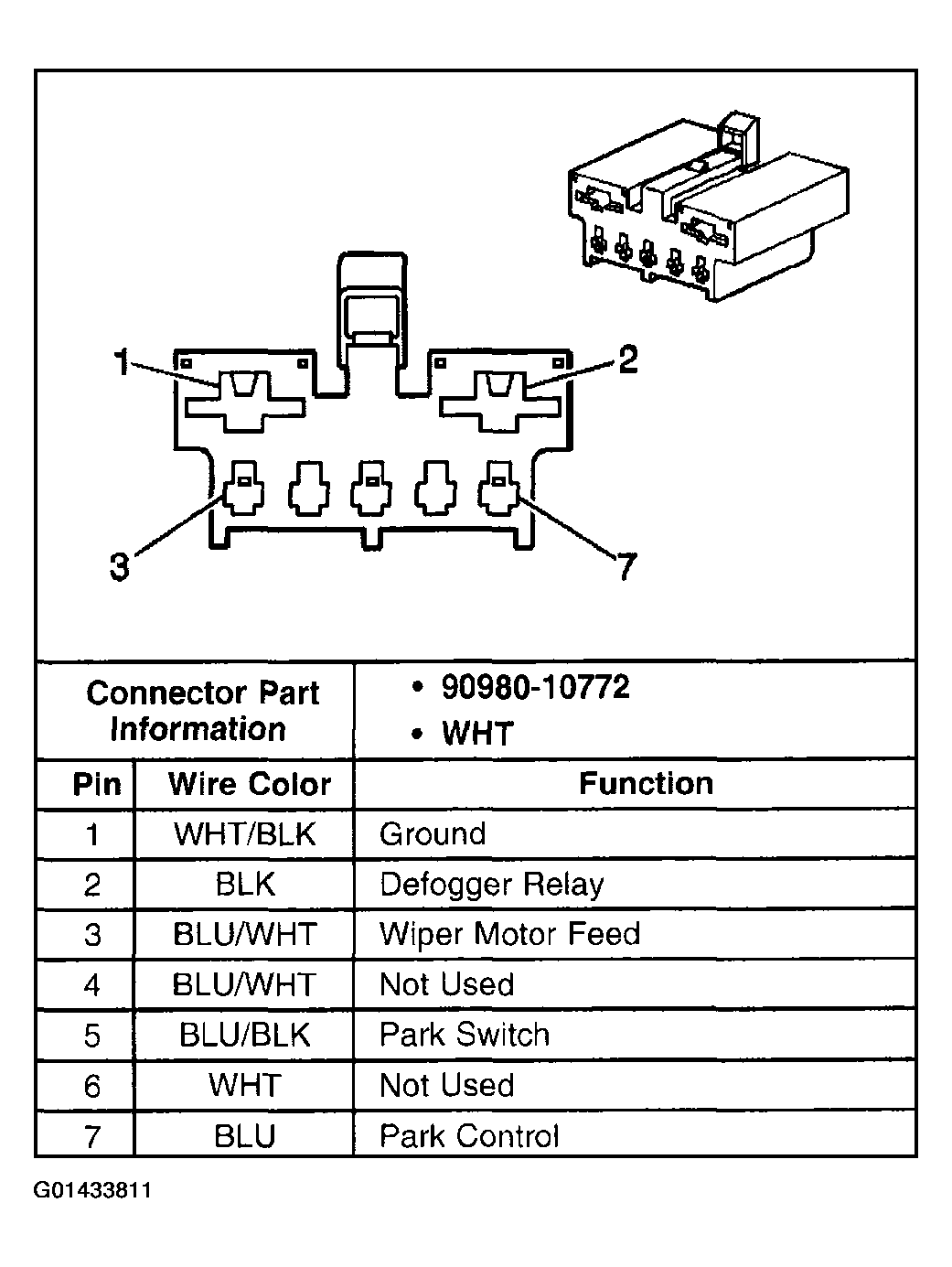

Fig 1: Rear Hatch Glass Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
