Installation Procedure

  1. Install the fan No. 1 relay (2) relay or the engine main relay in fuse and relay block.
  2. Install the cover to fuse and relay block.

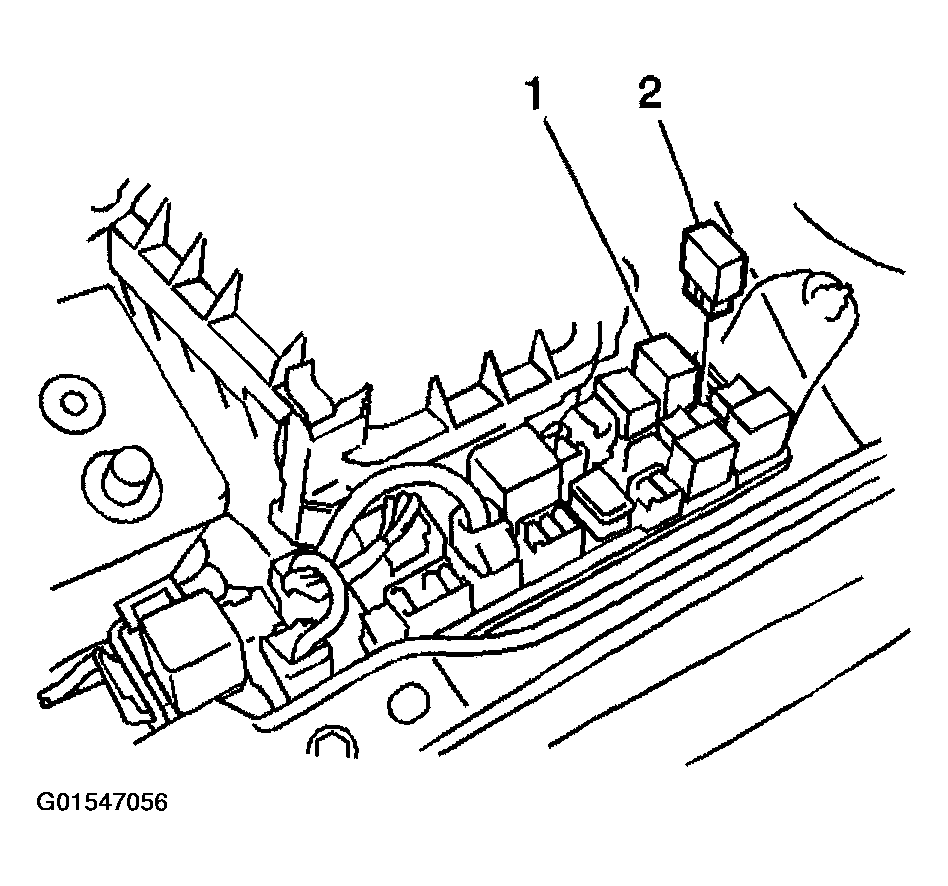

    Fig 1: Installing Fan No Relay Or Engine Main Relay In Fuse And Relay Block
    G01547056Courtesy of GENERAL MOTORS CORP.
