Home >> Pontiac >> 2003 >> Vibe Base, FWD, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Cruise Control Switch Connector End View

Cruise Control Switch Connector End View

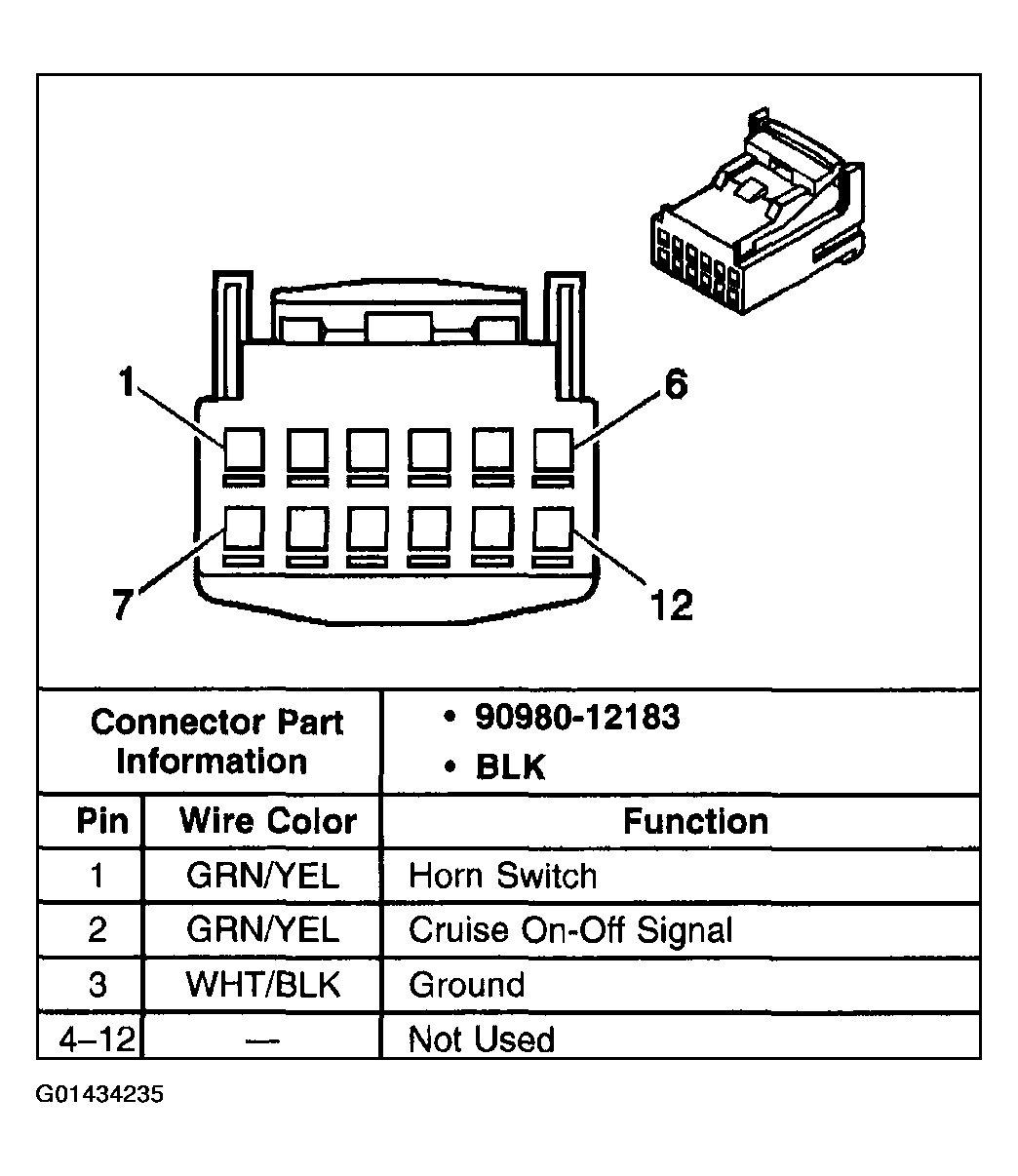

Fig 1: Cruise Control Switch Connector End View

G01434235

Courtesy of GENERAL MOTORS CORP.
