Cruise Control Module Connector End View

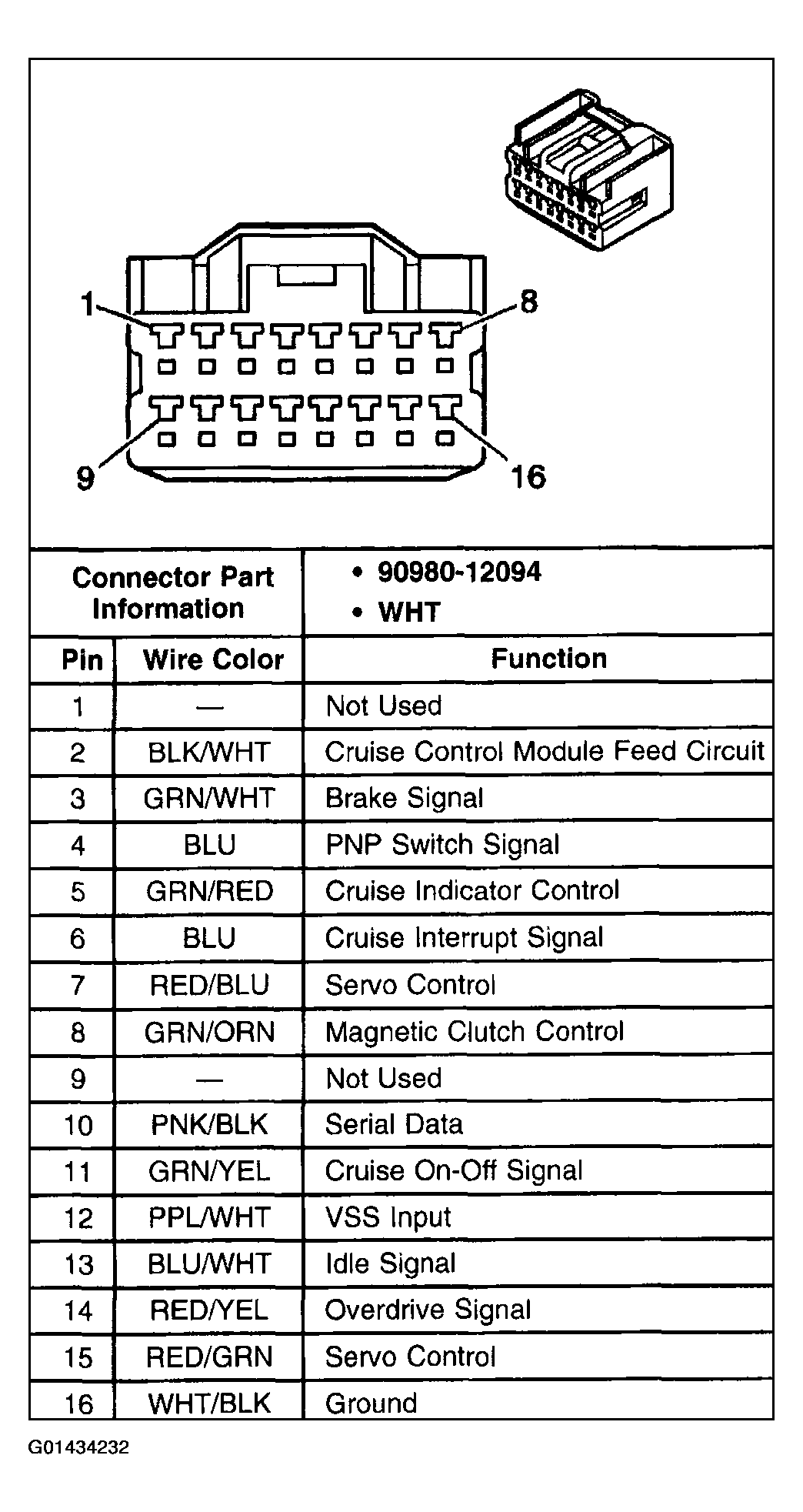

Fig 1: Cruise Control Module Connector End View

G01434232

Courtesy of GENERAL MOTORS CORP.
