Installation Procedure

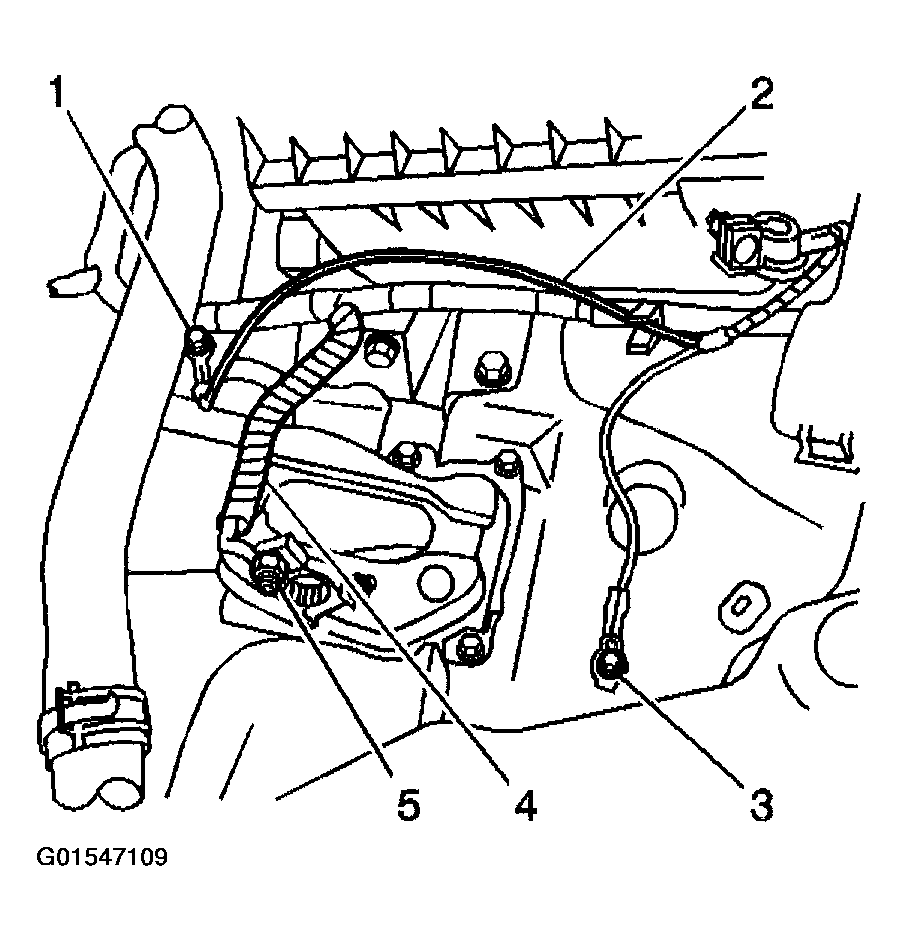

Fig 1: Removing Positive (+) Battery Cable From Harness Loom
G01547109Courtesy of GENERAL MOTORS CORP.
  1. Position the positive (+) battery cable (4) into the vehicle.
  2. Route the positive (+) cable into the harness loom.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Connect the cable to the starter solenoid. Secure the cable with the retaining nut.

    Tighten

    Tighten the positive (+) battery cable-to-starter solenoid retaining nut to 9 N.m (78 lb in).

  4. Install the battery positive fuse block feed cable to positive (+) battery cable. Secure with the nut (5).

    Tighten

    Tighten the positive (+) battery cable-to-relay block 1 feed cable retaining nut to 9 N.m (78 lb in).

  5. Tape the loom to prevent dirt and moisture from entering the harness.
  6. Install the positive (+) battery cable harness loom to the harness retainers.
  7. Install the plastic insulator to the positive (+) battery cable.
  8. Install the battery to the vehicle. Refer to BATTERY REPLACEMENT   .
Fig 2: Installing Positive (+) Battery Cable Harness Loom
G01547110Courtesy of GENERAL MOTORS CORP.
