Installation Procedure

  1. Position the negative battery cable (2) into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Connect the cable to the transaxle housing. Secure with the ground bolt (1).

    Tighten

    Tighten the ground bolt to 23 N.m (17 lb ft).

  3. Connect the cable to the body. Secure with the ground bolt (3).

    Tighten

    Tighten the body ground bolt to 14 N.m (124 lb in).

  4. Route the cable and secure it in the harness retainer.
  5. Install the battery tray.
  6. Install the battery. Refer to BATTERY REPLACEMENT   .

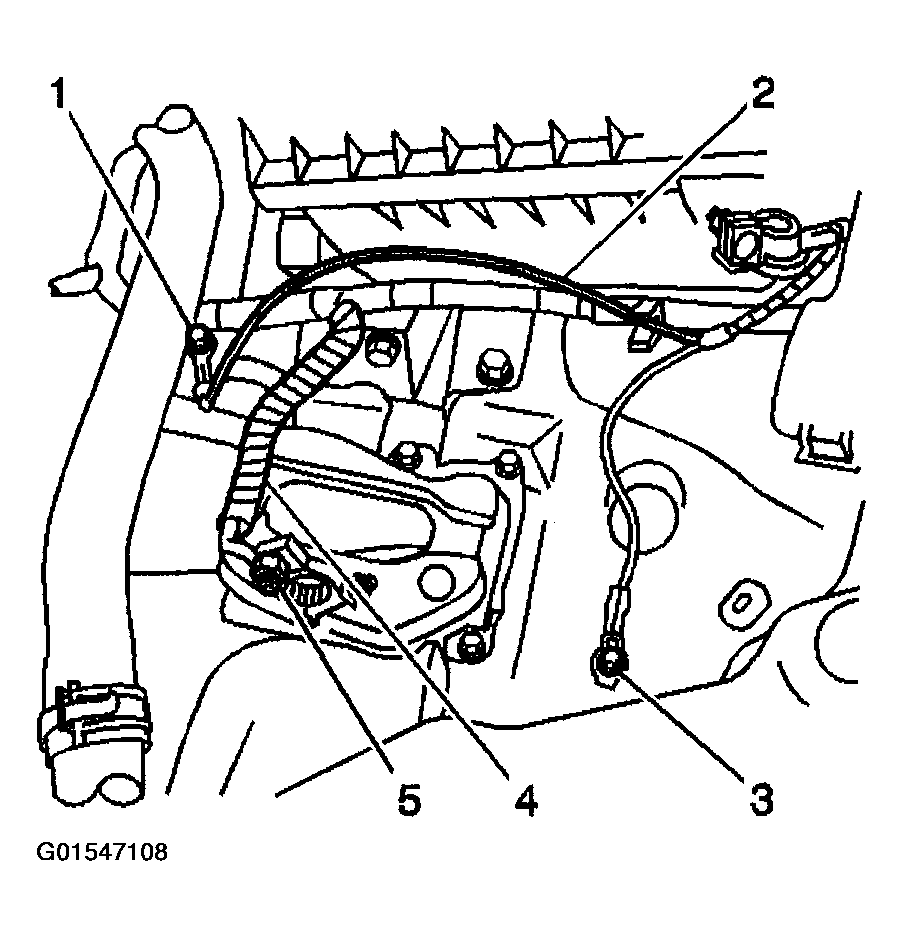

Fig 1: Installing Battery Cable
G01547108Courtesy of GENERAL MOTORS CORP.
