Engine Electrical Connector End Views

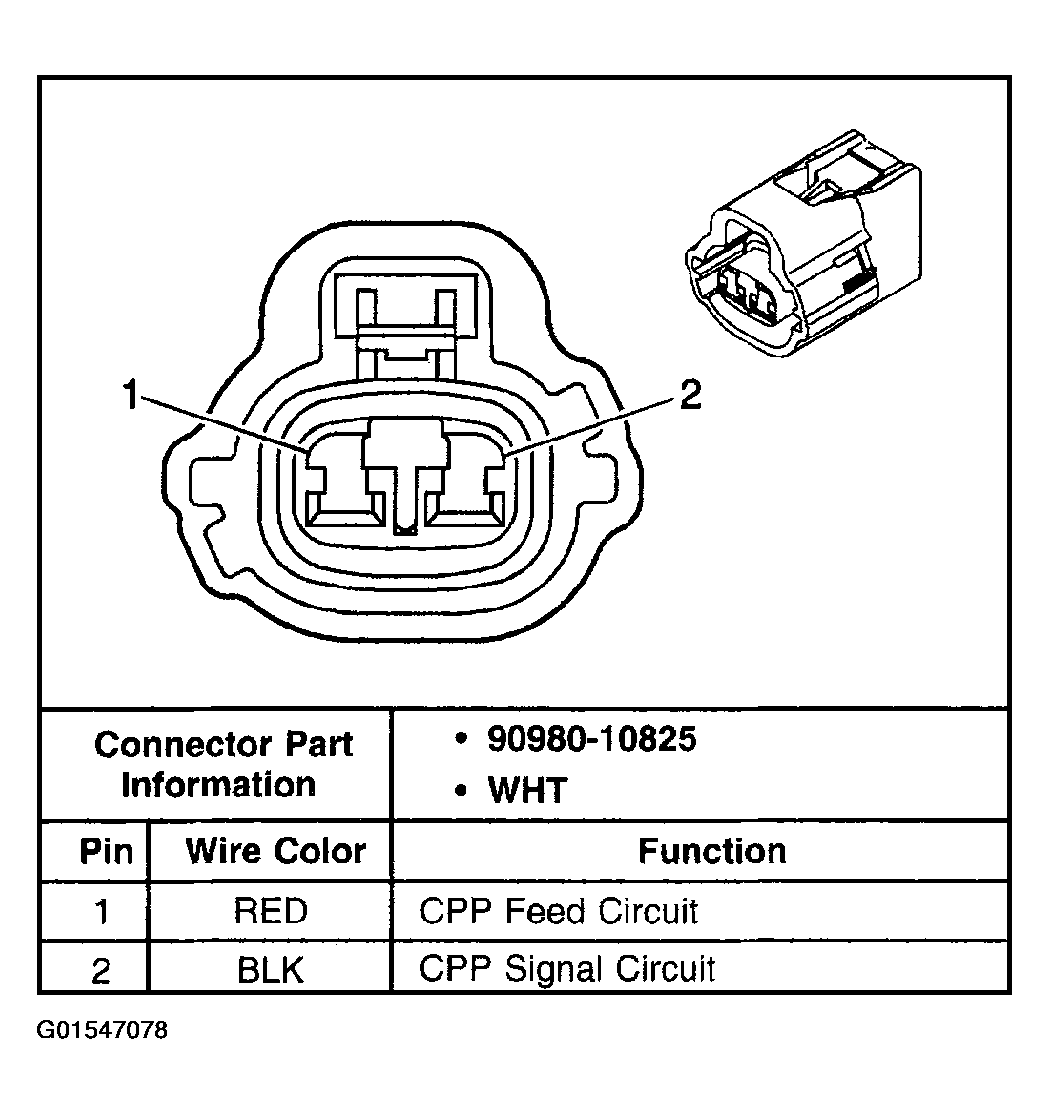

Fig 1: Locating Clutch Pedal Position Switch Connector End View
G01547078Courtesy of GENERAL MOTORS CORP.

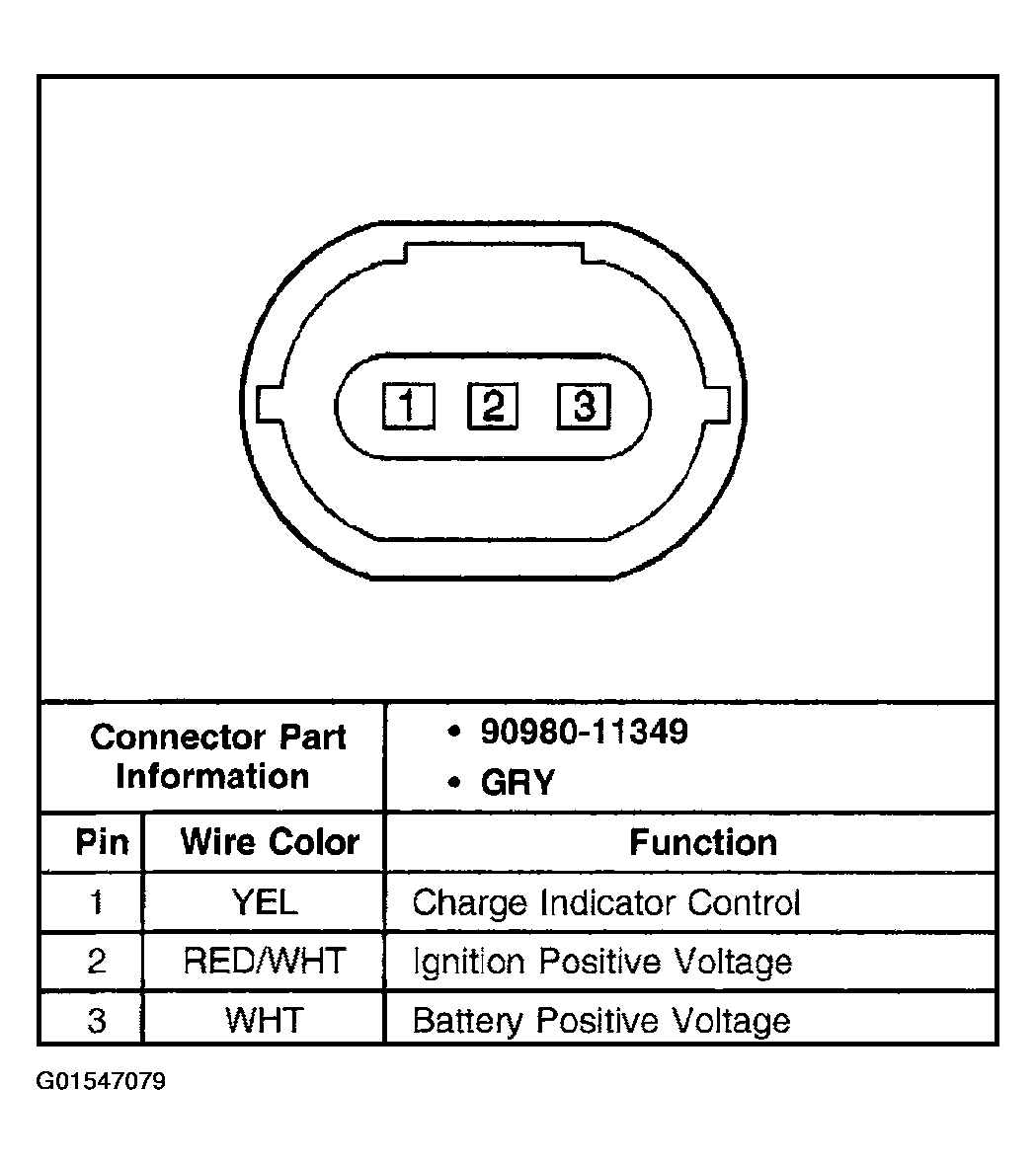

Fig 2: Locating Generator Connector End View
G01547079Courtesy of GENERAL MOTORS CORP.

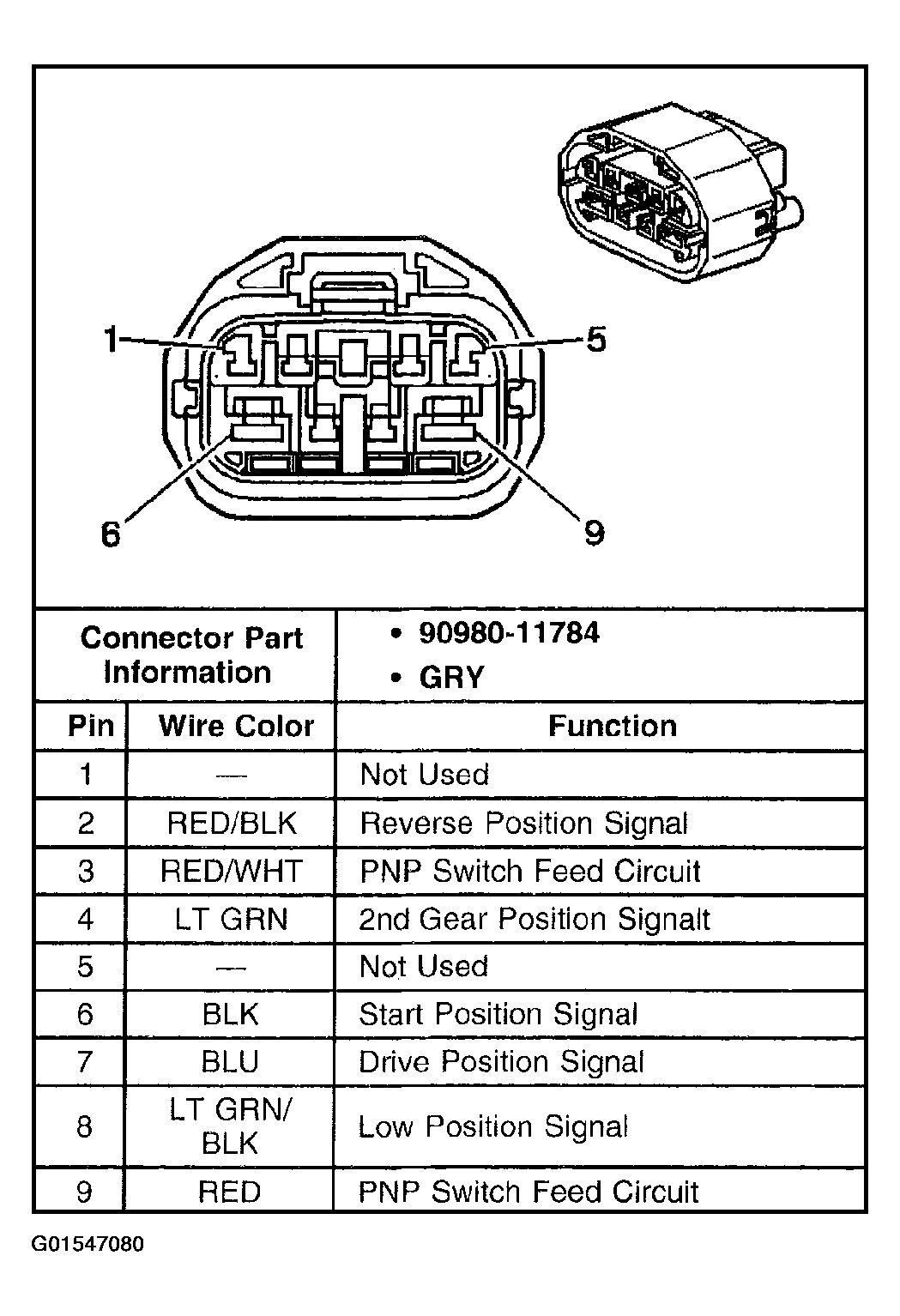

Fig 3: Locating Park/Neutral Position Switch Connector End View
G01547080Courtesy of GENERAL MOTORS CORP.
