Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the wheel speed sensor (2) to the steering knuckle. Secure with 1 bolt.

    Tighten

    Tighten the front wheel speed sensor bolt to 8 N.m (71 lb in).

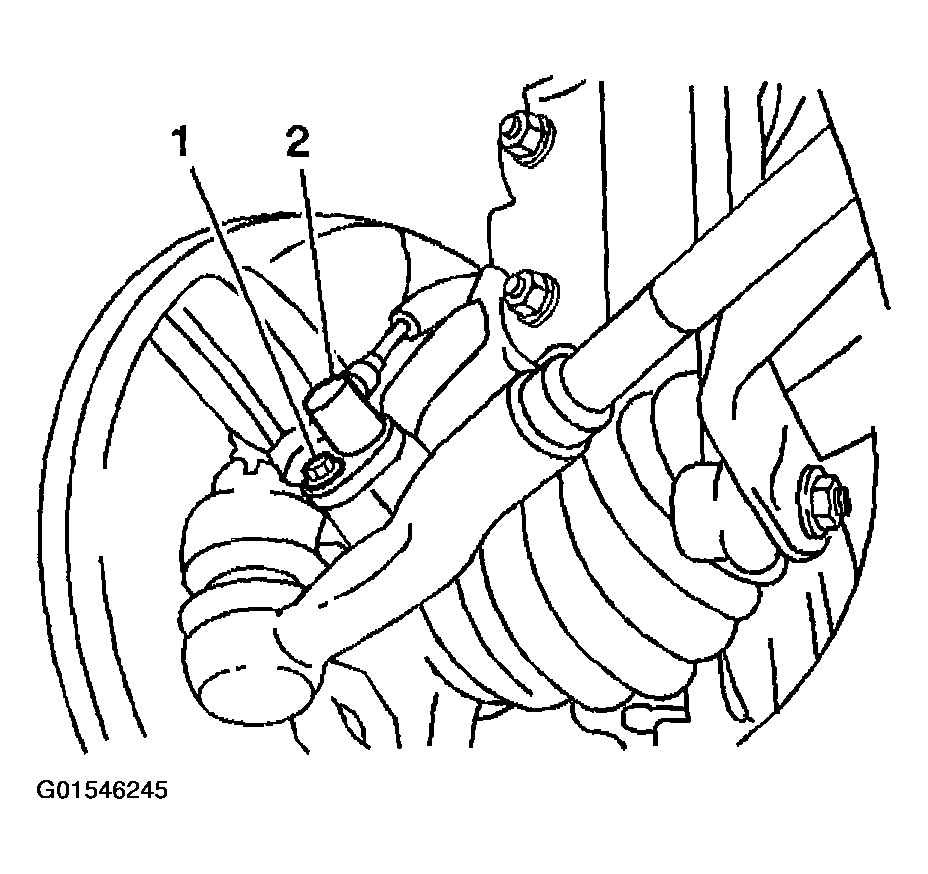

    Fig 1: Installing Wheel Speed Sensor
    G01546245Courtesy of GENERAL MOTORS CORP.
  2. Connect the wheel speed wiring harness (1) to the vehicle. Secure with 2 bolts.

    Tighten

    Tighten the pigtail harness nut (2) to 8 N.m (71 lb in) and pigtail harness nut (3) to 29 N.m (21 lb ft).

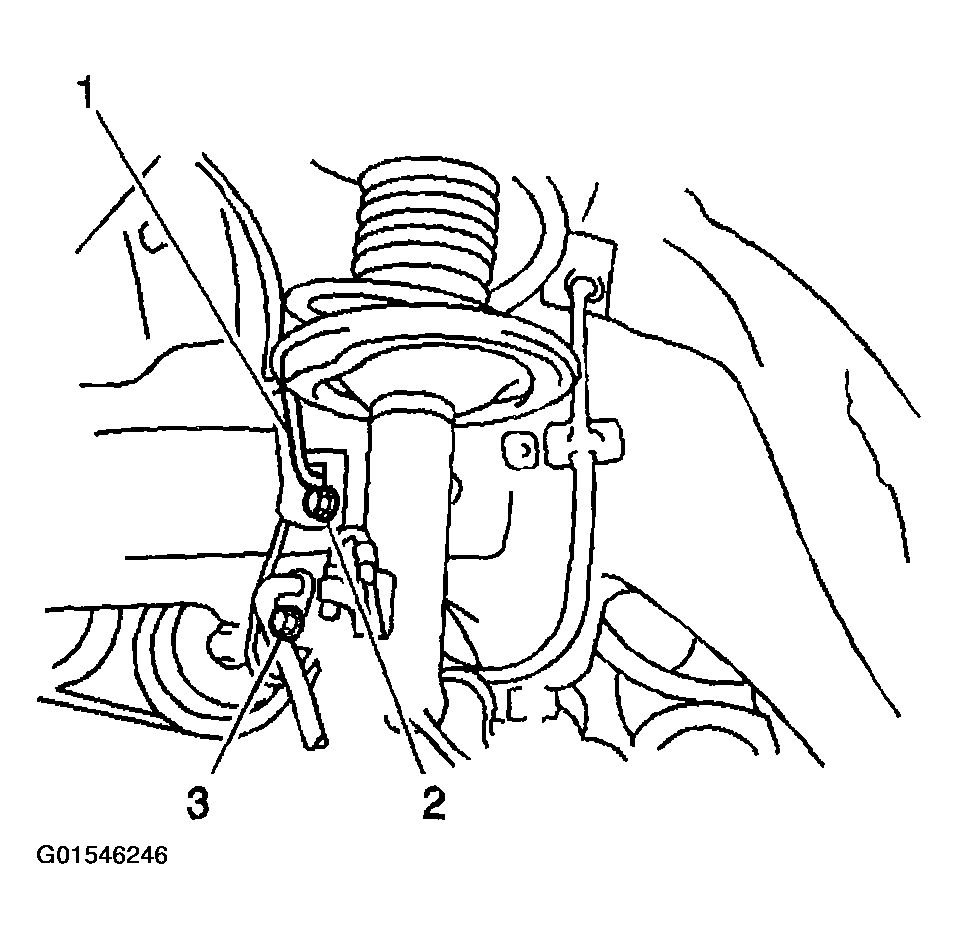

    Fig 2: Locating Pigtail Harness Nuts And Wheel Speed Wiring Harness
    G01546246Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector (1).

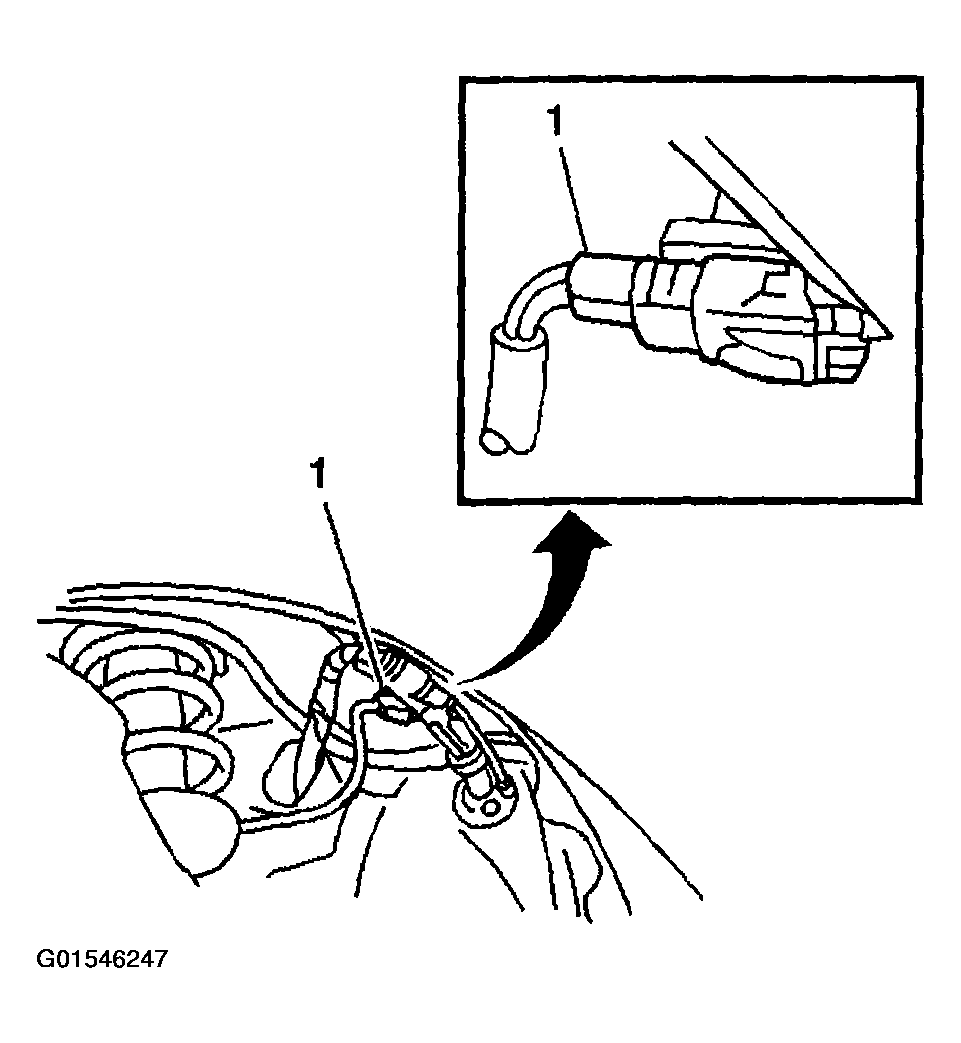

    Fig 3: Connecting Wheel Speed Sensor Electrical Connector
    G01546247Courtesy of GENERAL MOTORS CORP.
  4. Install the wheelhousing. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
  5. Perform DIAGNOSTIC SYSTEM CHECK - ABS  .
