Removal Procedure

  1. Remove the LH front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  2. Remove the bolt (1) and the upper deceleration sensor bracket (2).
    Fig 1: Removing Bolt And Upper Deceleration Sensor Bracket
    G01546257Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the deceleration sensor electrical connector.
  4. Remove the two bolts (1) that retain the deceleration sensor (2).
  5. Remove the deceleration sensor (2) from the vehicle.

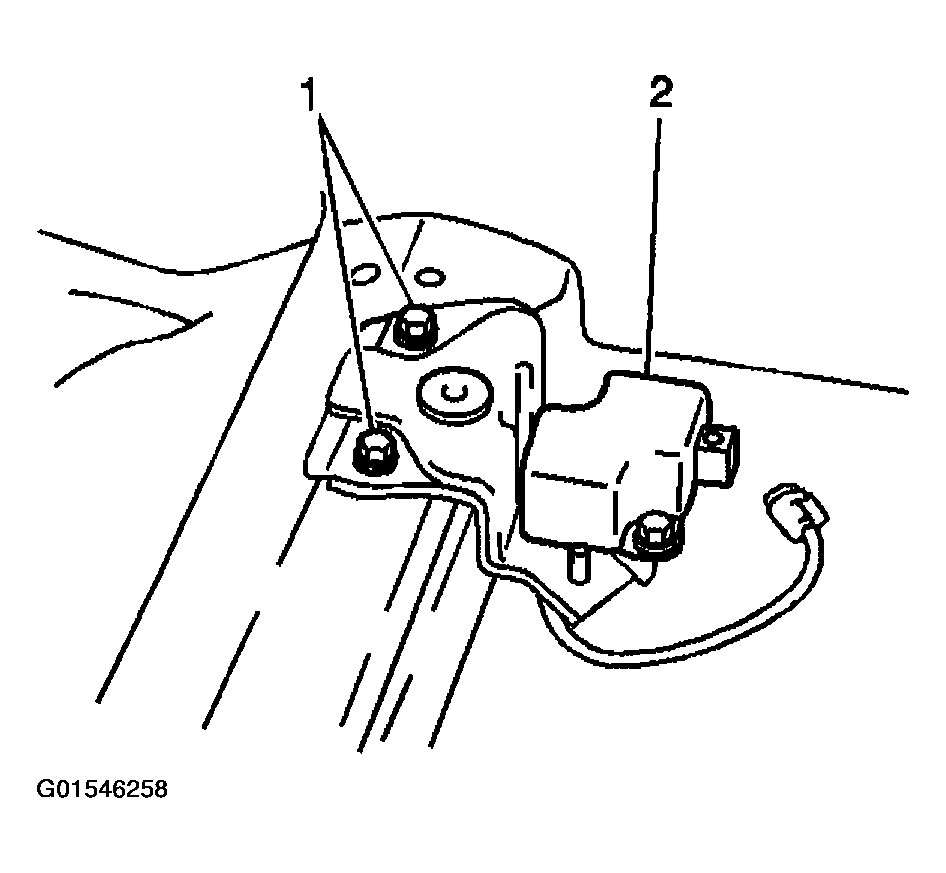

Fig 2: Removing Deceleration Sensor
G01546258Courtesy of GENERAL MOTORS CORP.
