Removal Procedure

  1. Disconnect the electronic brake control module (EBCM) harness connector.
  2. Remove the 6 brake pipes from the brake modulator assembly (1).
  3. Plug the brake pipes in order to prevent loss or contamination of brake fluid.
  4. Remove 2 bolts (2) from the brake pressure modulator bracket (3).

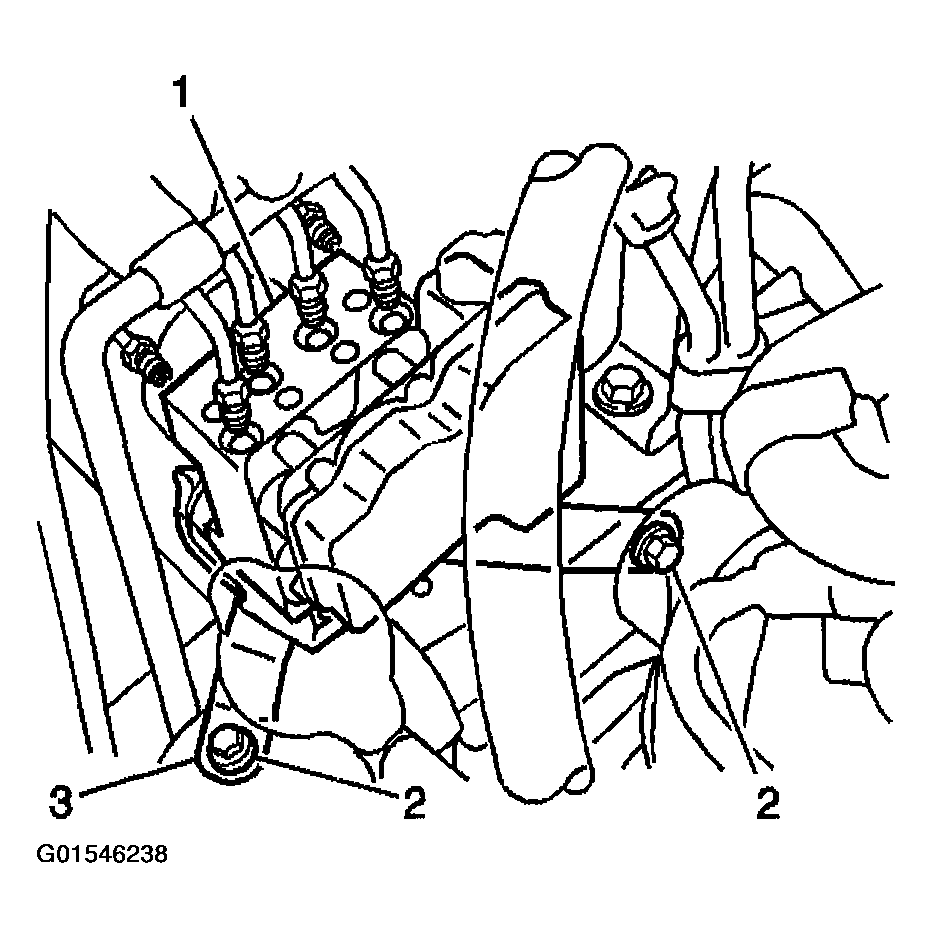

    Fig 1: Removing Brake Pipes & Modulator Bracket
    G01546238Courtesy of GENERAL MOTORS CORP.
  5. Remove nut (1) and the brake pressure modulator assembly and bracket.
  6. Remove 3 nuts and the brake pressure modulator assembly from the bracket.

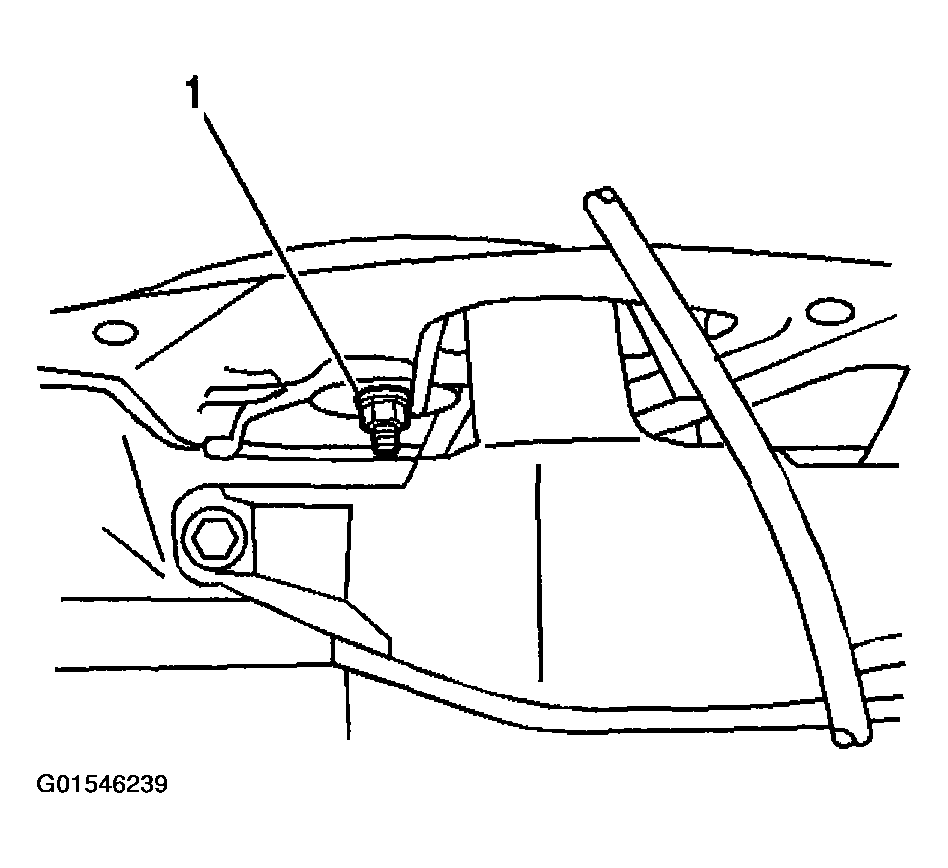

Fig 2: Removing Brake Pressure Modulator Assembly
G01546239Courtesy of GENERAL MOTORS CORP.
