Installation Procedure

  1. Connect the electrical connector to the lighted rearview mirror, if equipped.
  2. Install the rearview mirror into the rearview mirror support.

    Ensure that the mirror is fully seated.

  3. Install the wire harness cover to the lighted rearview mirror, if equipped.

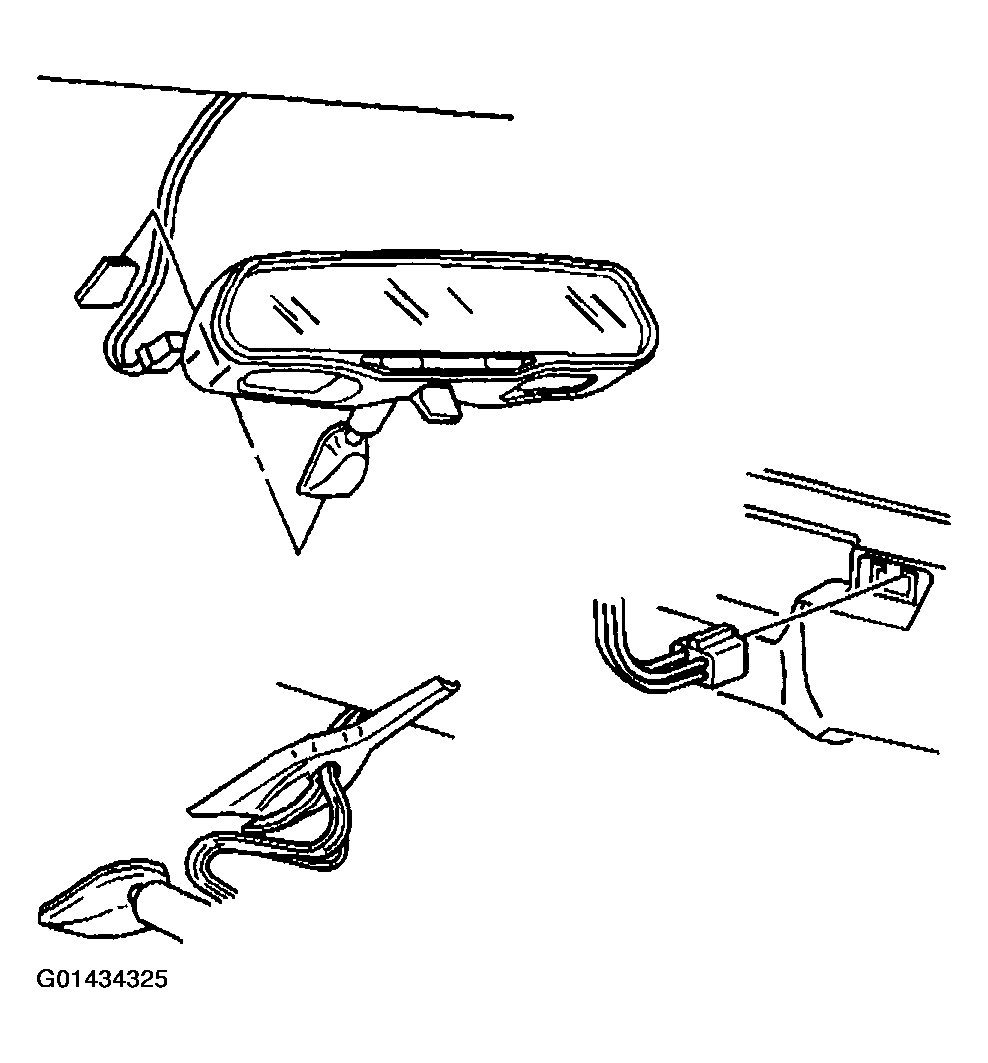

    Fig 1: Installing Rearview Mirror Into Rearview Mirror Support
    G01434325Courtesy of GENERAL MOTORS CORP.
