Removal Procedure

  1. Remove the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.
  2. Disconnect the defogger switch electrical connector (2).

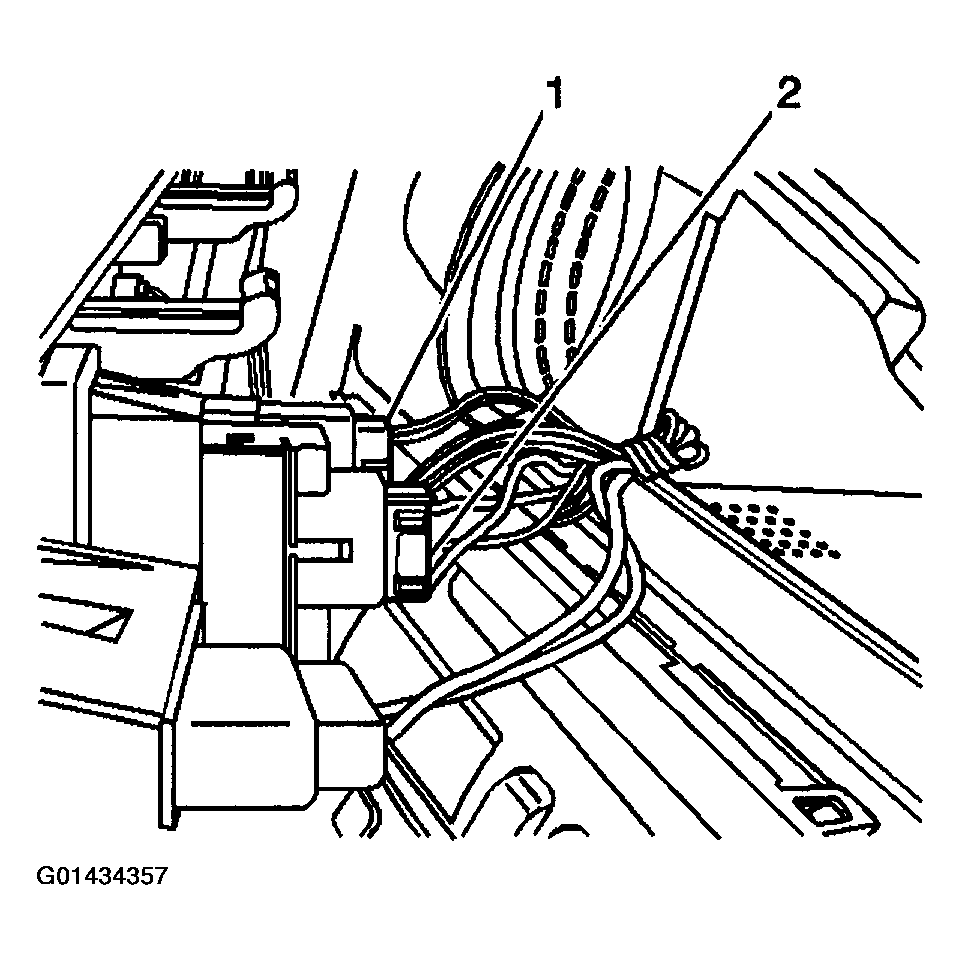

    Fig 1: Disconnecting Defogger Switch Electrical Connector
    G01434357Courtesy of GENERAL MOTORS CORP.
  3. Press down on the tabs (1) and remove the defogger switch (4) from the IP center trim panel.

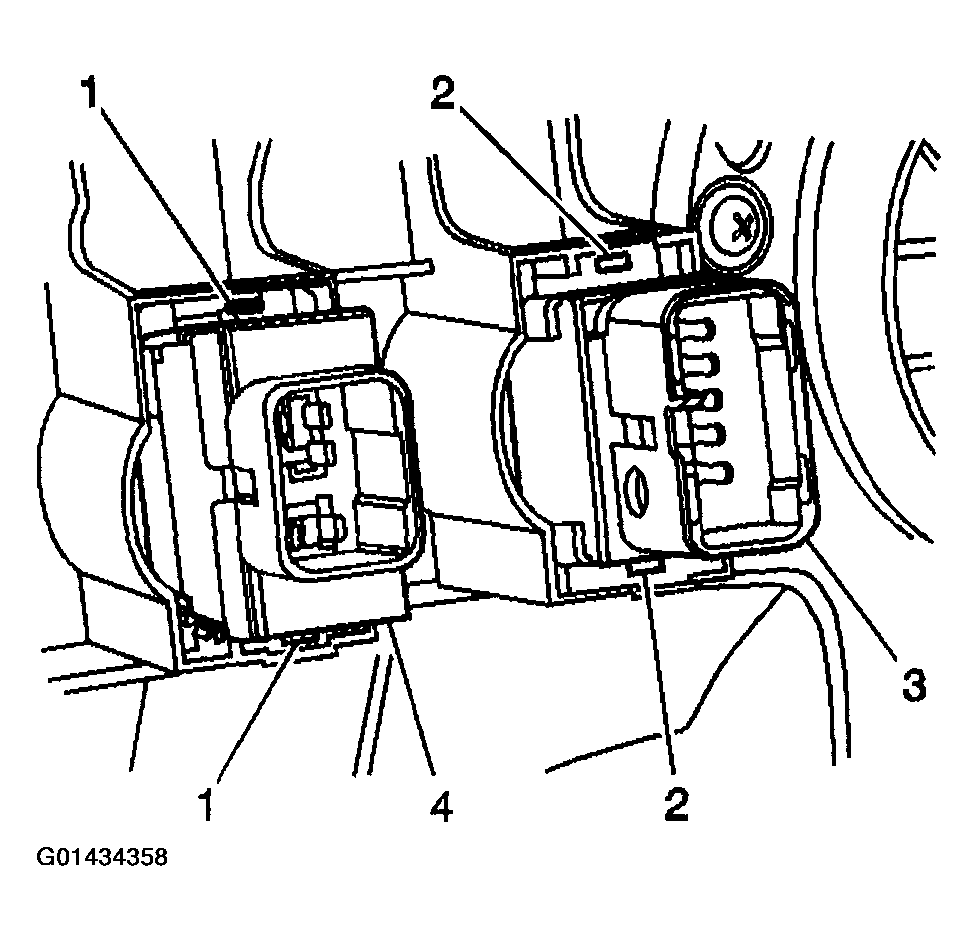

    Fig 2: Removing Defogger Switch From IP Center Trim Panel
    G01434358Courtesy of GENERAL MOTORS CORP.
