Installation Procedure

  1. Install the defogger switch (4) to the IP center trim panel.

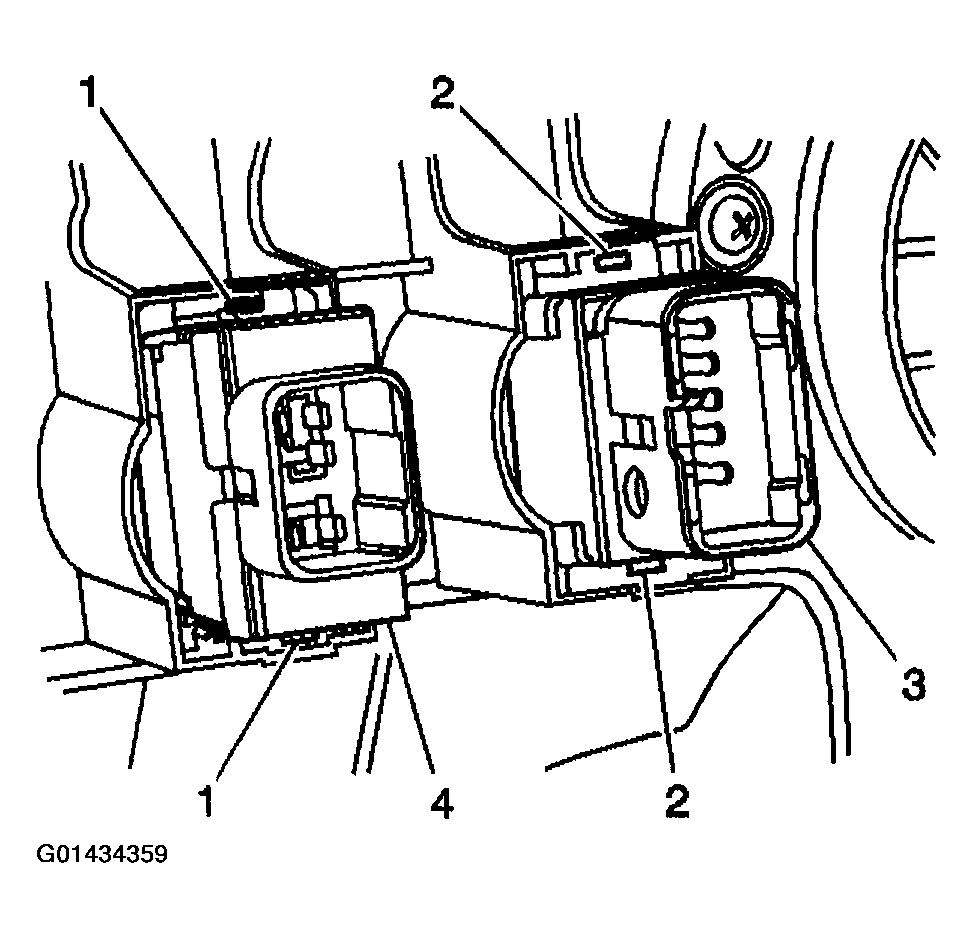

    Fig 1: Installing Defogger Switch To IP Center Trim Panel
    G01434359Courtesy of GENERAL MOTORS CORP.
  2. Connect the defogger switch electrical connector (2).
  3. Install the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.

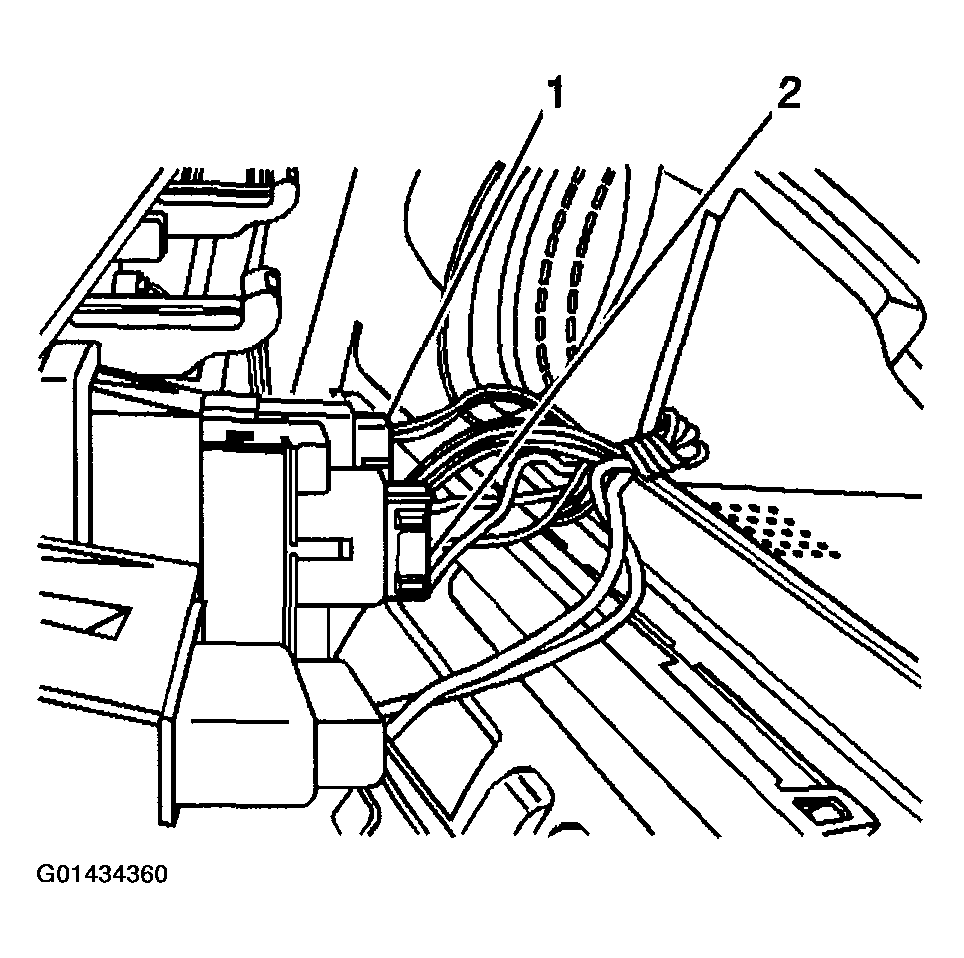

    Fig 2: Connecting Defogger Switch Electrical Connector
    G01434360Courtesy of GENERAL MOTORS CORP.
