Stationary Windows Connector End Views

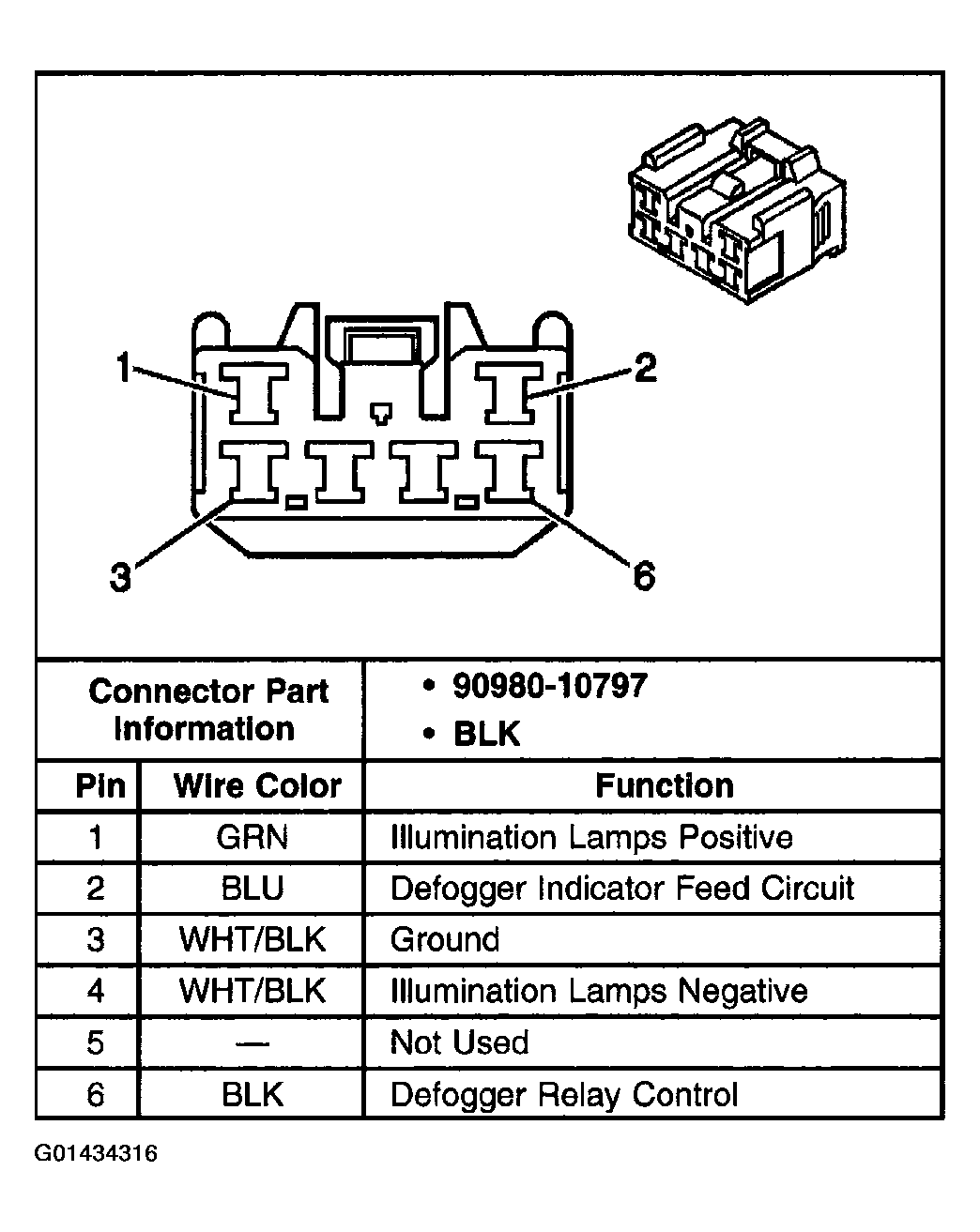

Fig 1: Identifying Defogger Switch Connector End

G01434316

Courtesy of GENERAL MOTORS CORP.
