Power Door Systems Component Views

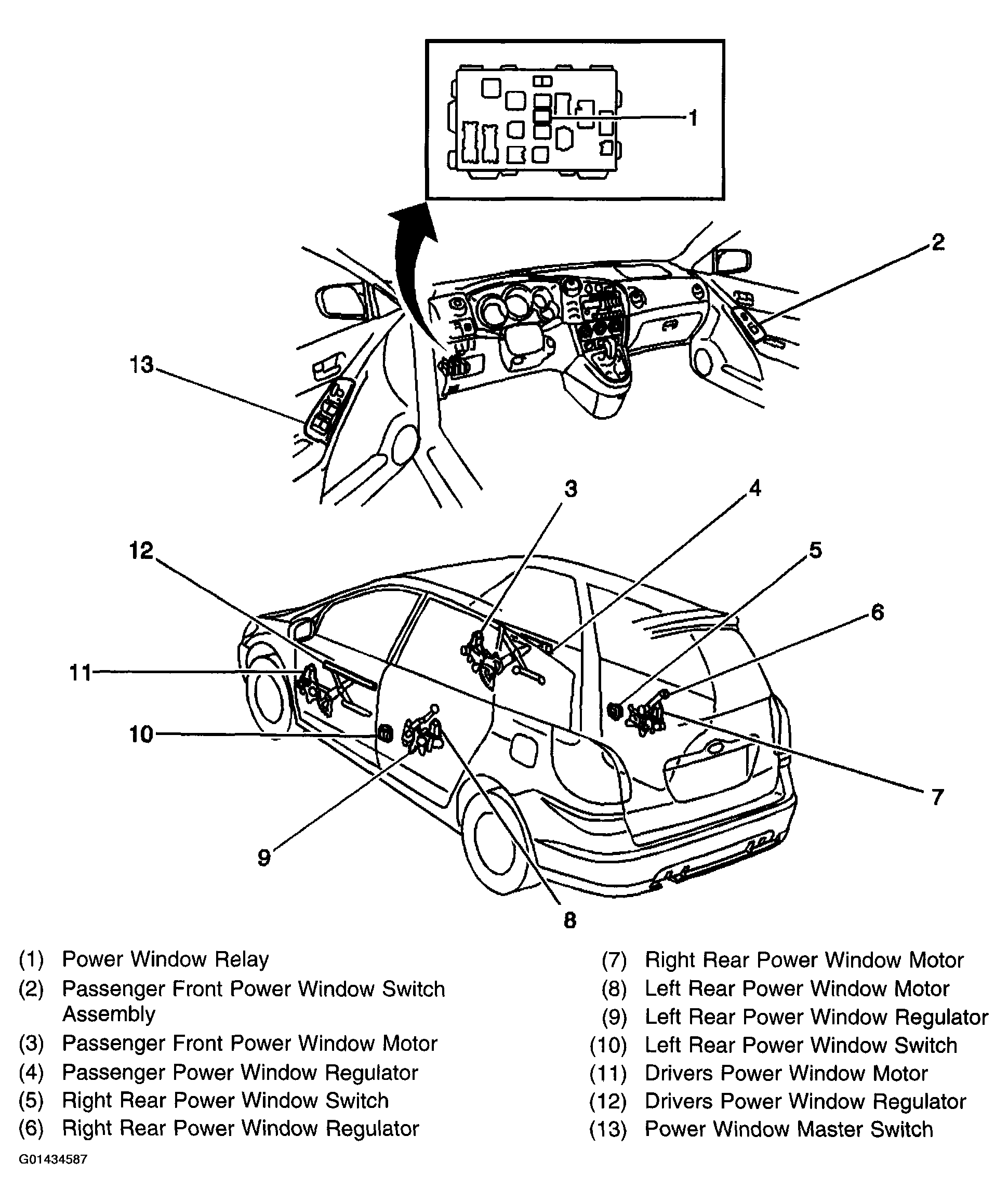

Fig 1: Power Door Systems Component View - Power Windows
G01434587Courtesy of GENERAL MOTORS CORP.

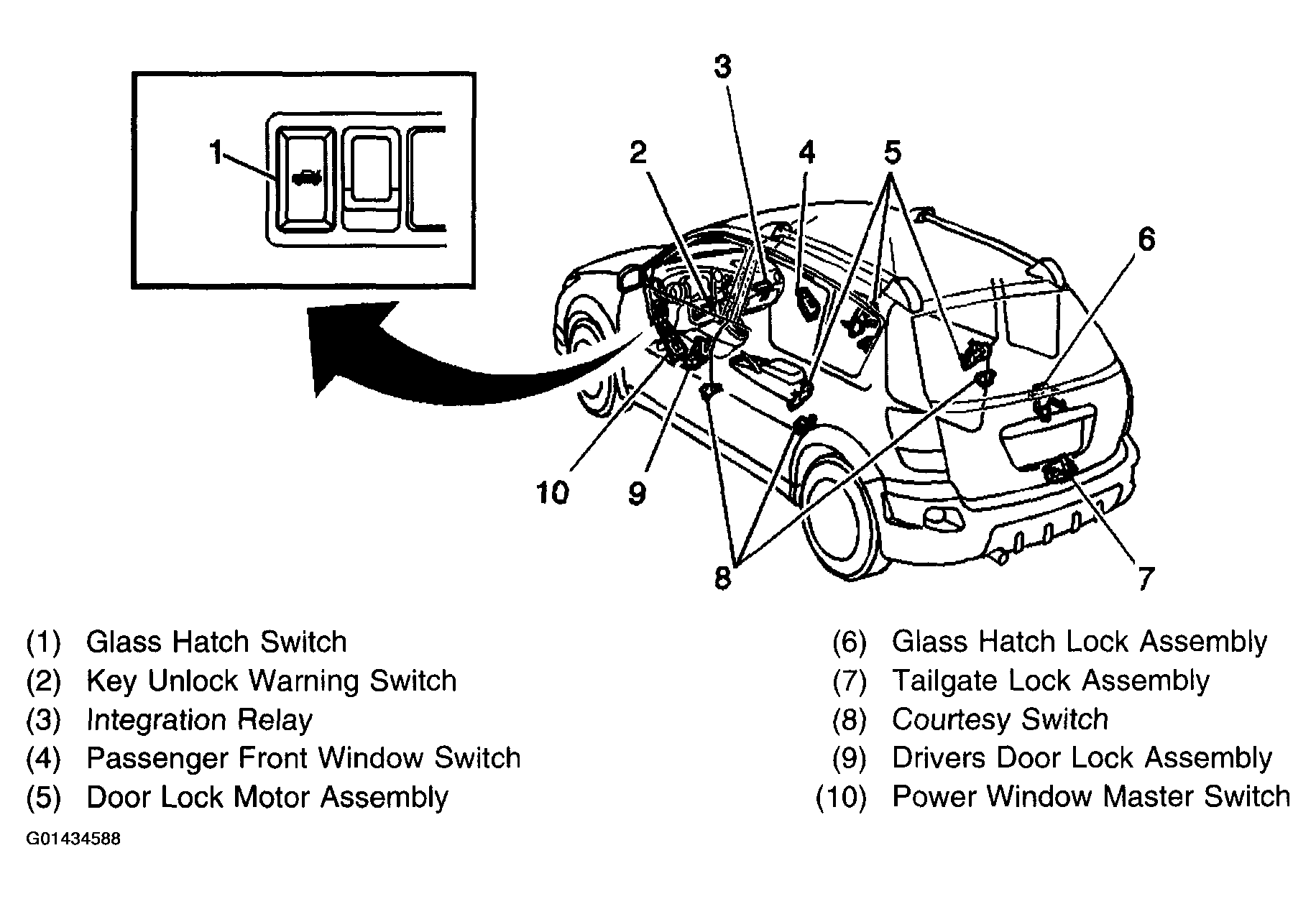

Fig 2: Power Door Systems Component View - Door Locks
G01434588Courtesy of GENERAL MOTORS CORP.

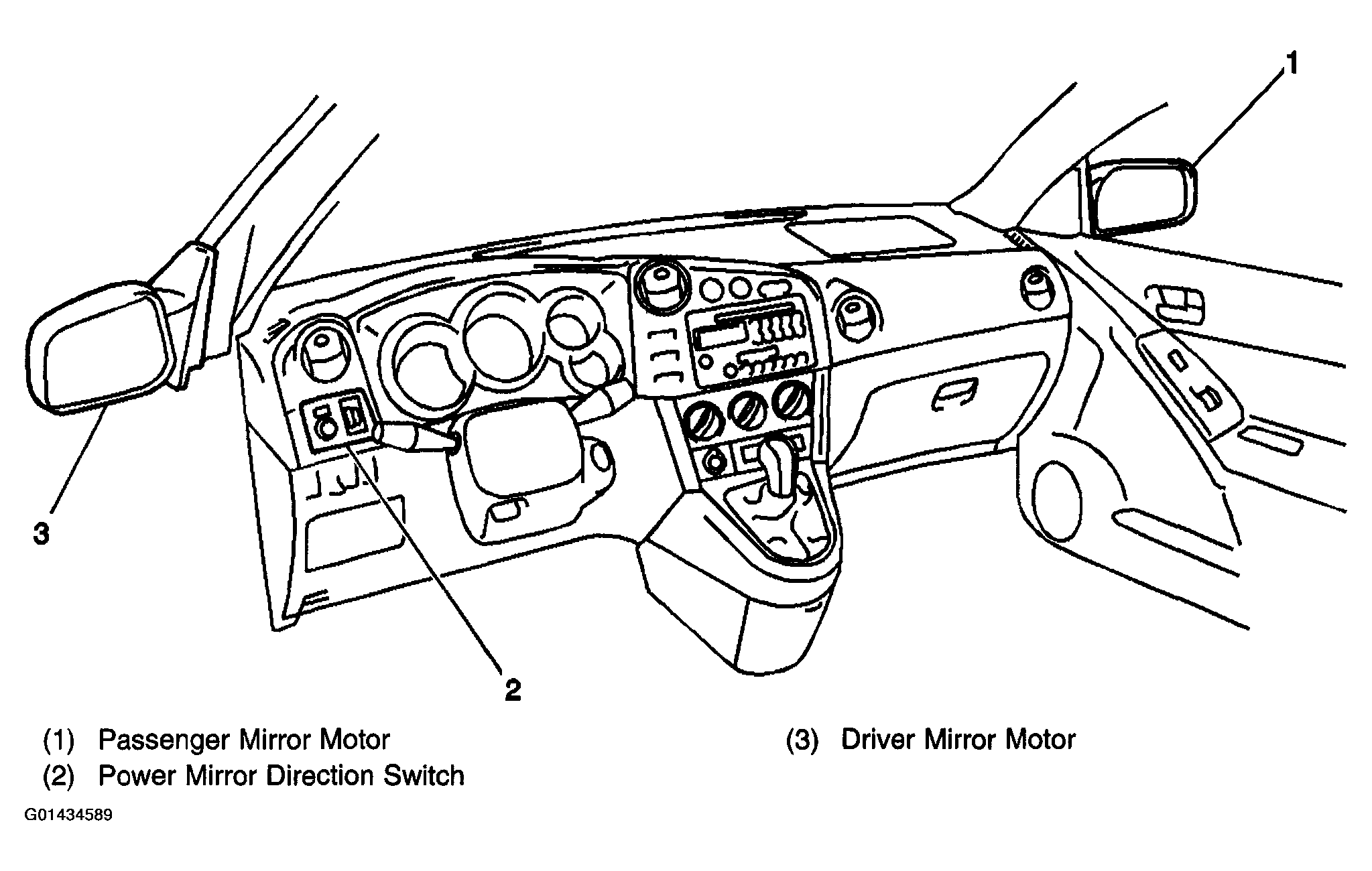

Fig 3: Power Door Systems Component View - Power Mirrors
G01434589Courtesy of GENERAL MOTORS CORP.
