Installation Procedure

  1. Install the new battery with the positive (+) side facing up.
  2. Inspect that the seal is properly positioned.
  3. Snap the two halves together.
  4. Verify that the remote control door lock receiver transmitter is functional. If not, refer to TRANSMITTER PROGRAMMING  .

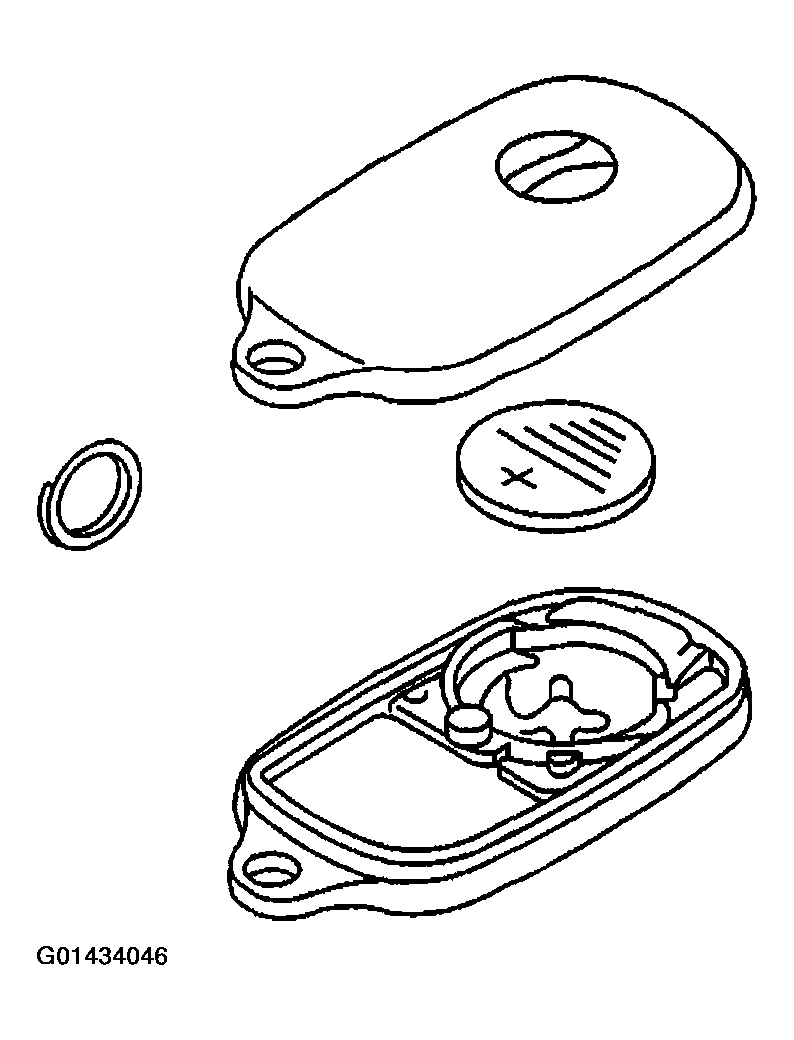

    Fig 1: Installing Battery To Transmitter
    G01434046Courtesy of GENERAL MOTORS CORP.
