Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the right upper quarter panel trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  3. Disconnect the remote control door lock receiver electrical connector (2).
  4. Remove the bolt (3) from the remote control door lock receiver (1).
  5. Remove the remote control door lock receiver (1) from the vehicle.

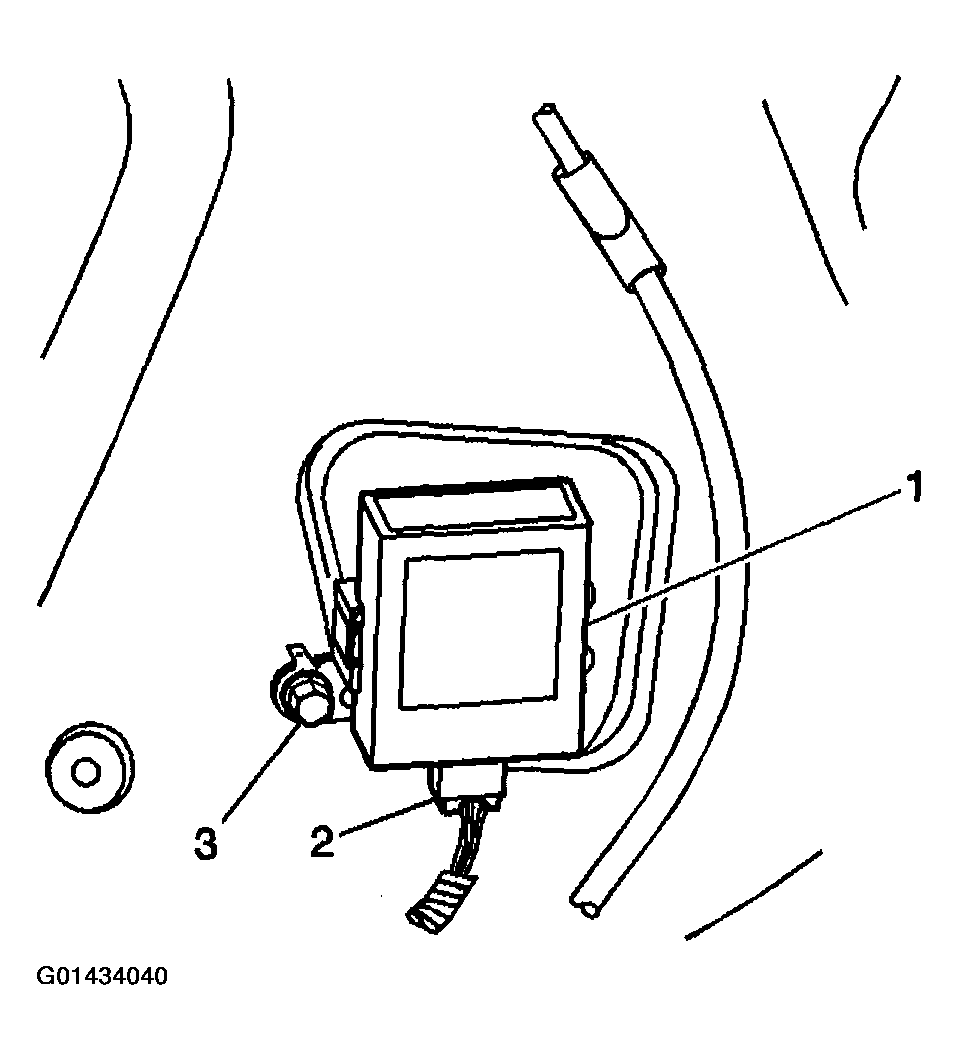

    Fig 1: Removing Remote Control Door Lock Receiver From Vehicle
    G01434040Courtesy of GENERAL MOTORS CORP.
  6. Using a flat bladed tool, remove the mounting bracket (1) from the receiver (2), if necessary.

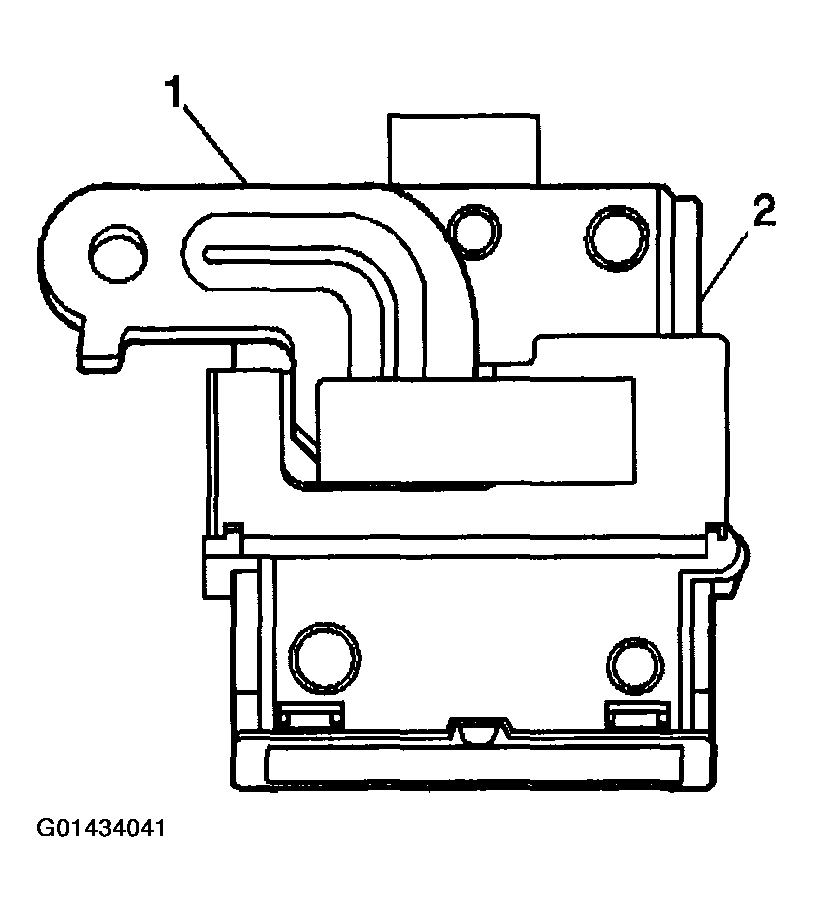

    Fig 2: Removing Mounting Bracket From Receiver
    G01434041Courtesy of GENERAL MOTORS CORP.
