Keyless Entry System Inoperative

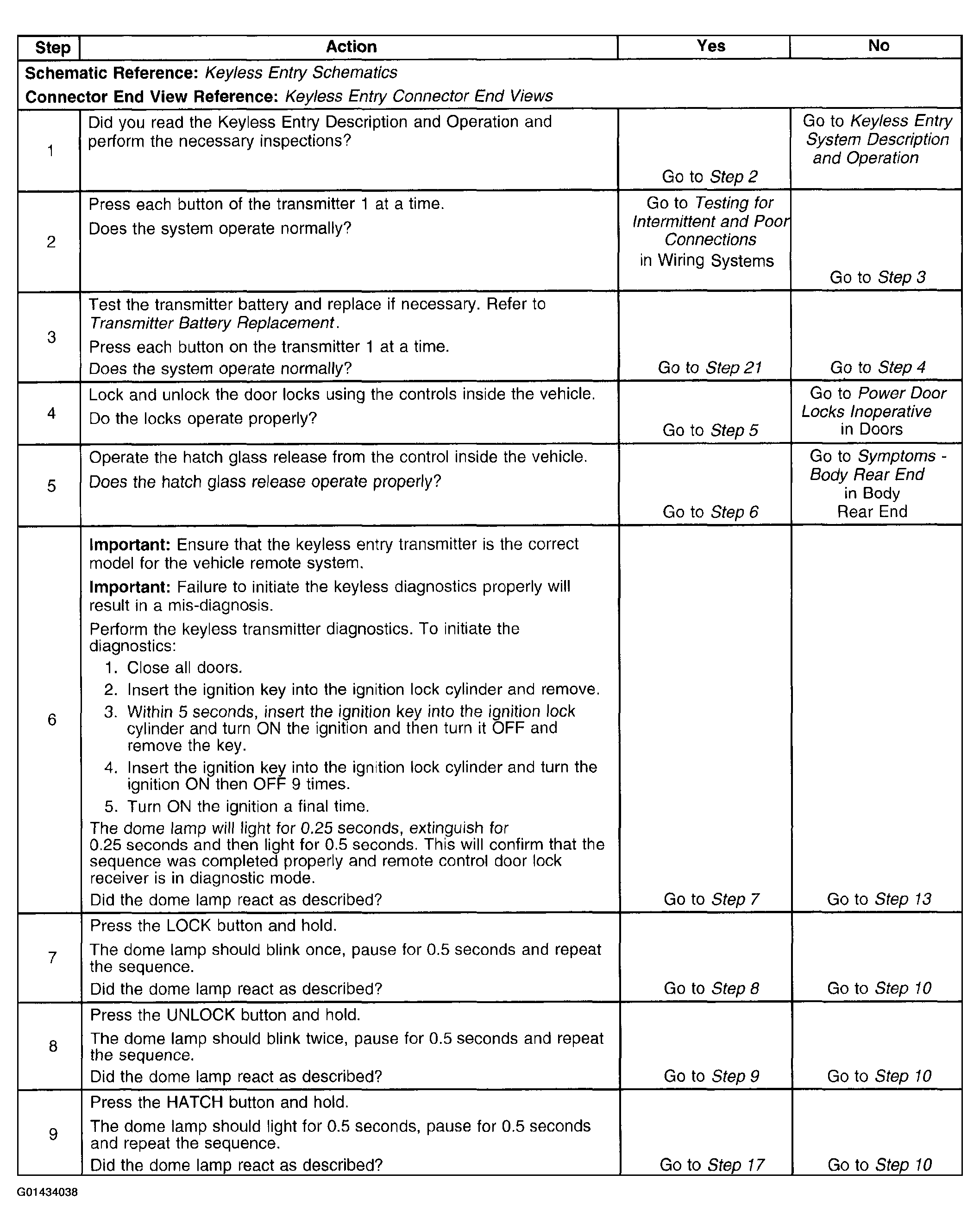

Fig 1: Diagnostic System Check Chart - Keyless Entry System Inoperative (1 Of 2)
G01434038Courtesy of GENERAL MOTORS CORP.

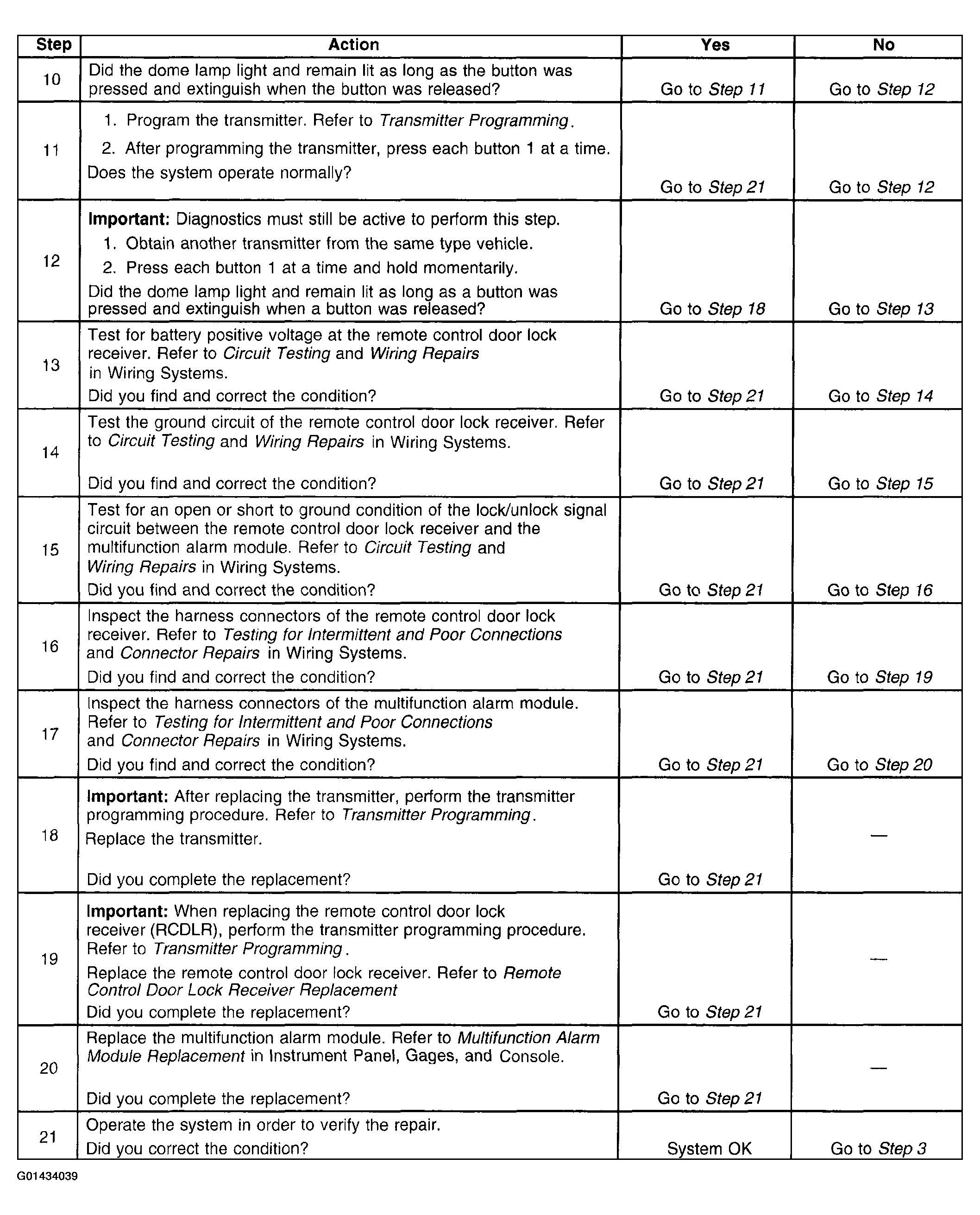

Fig 2: Diagnostic System Check Chart - Keyless Entry System Inoperative (2 Of 2)
G01434039Courtesy of GENERAL MOTORS CORP.
