Transfer Case - Vibe (Unit Repair)
>>
Component Locator
>>
Transfer Case Disassembled View
Transfer Case Disassembled View

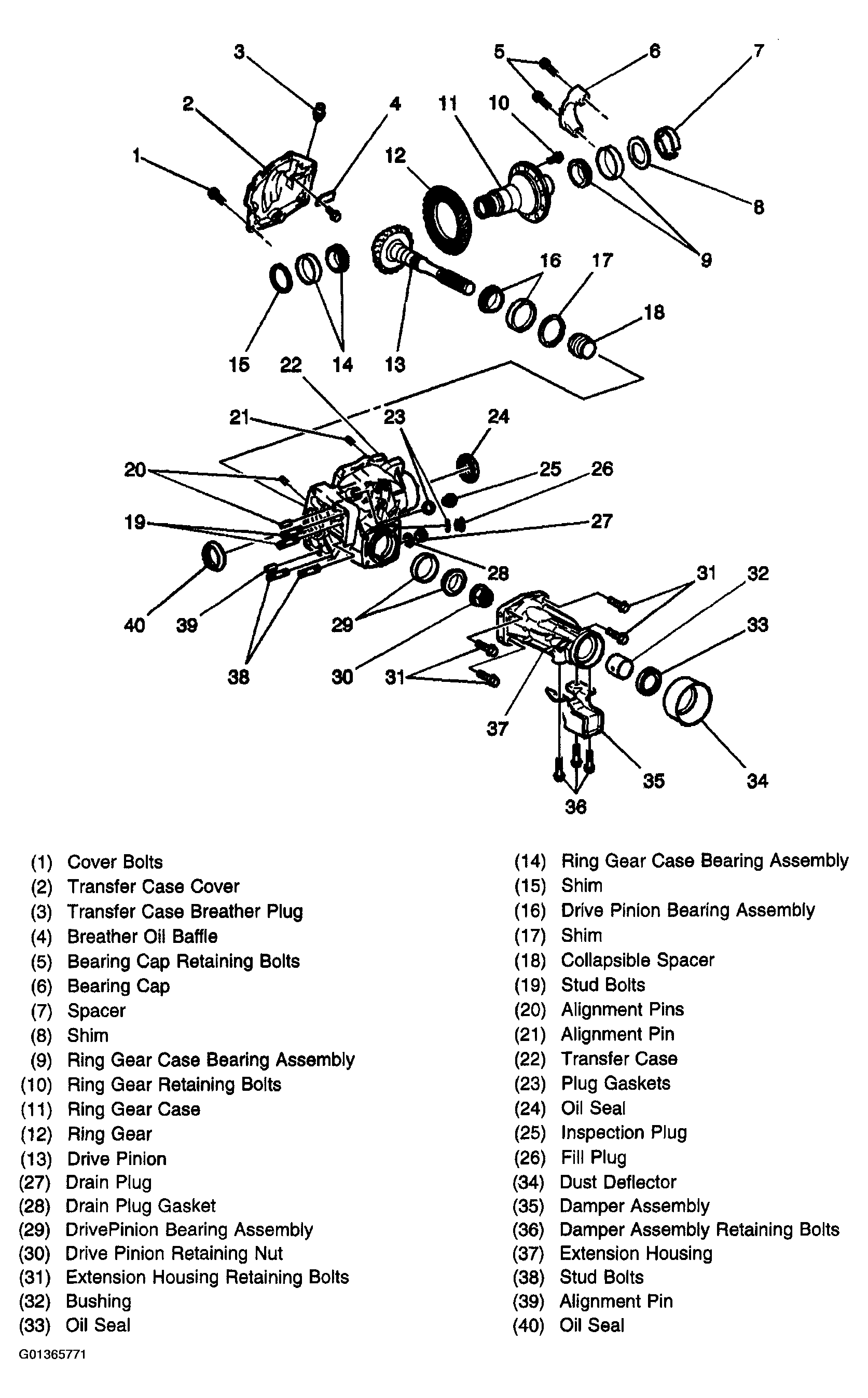

Fig 1: Transfer Case Disassembled View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
