Automatic Transmission Shift Lock Control Schematics

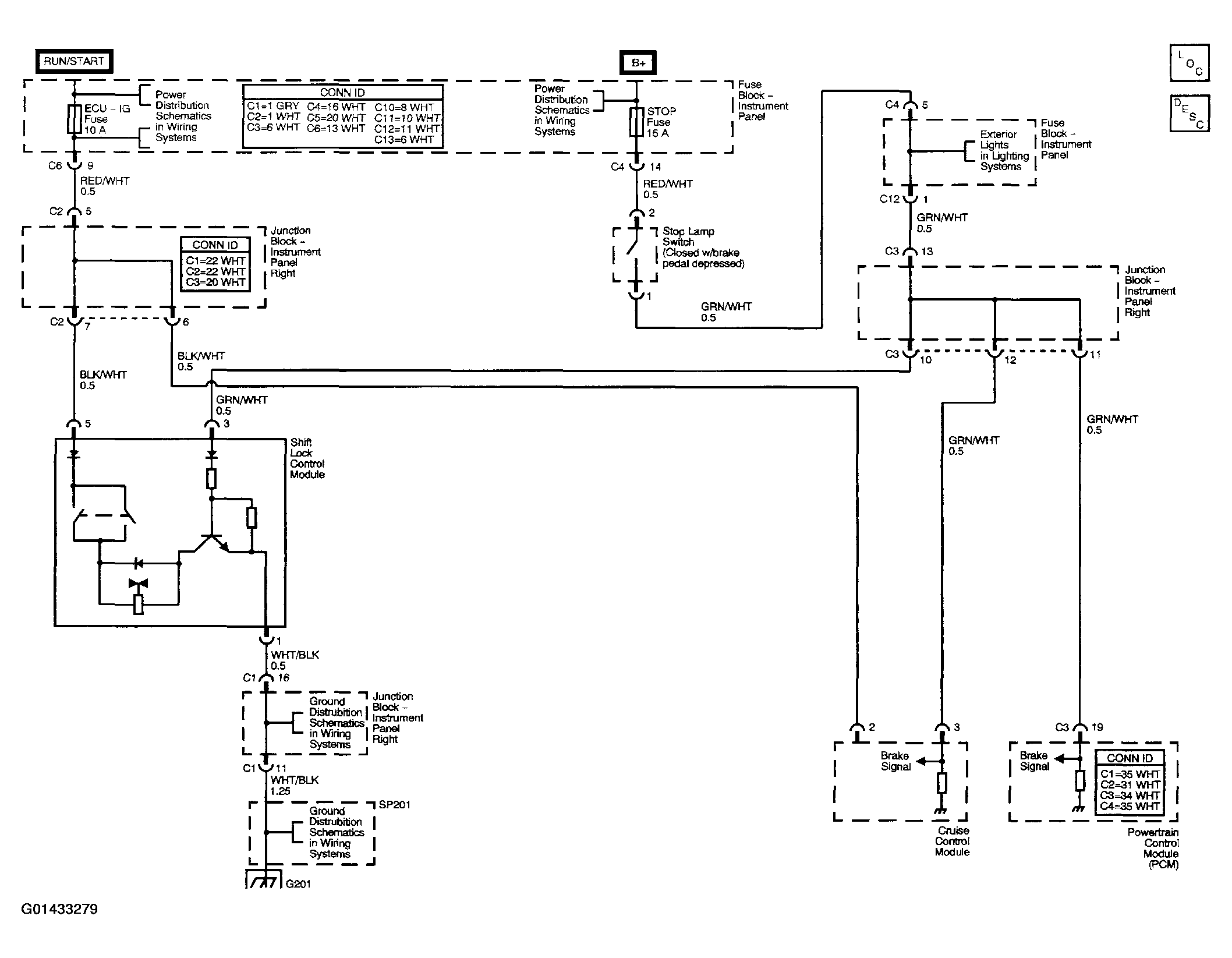

Fig 1: Automatic Transmission Shift Lock Control Schematic

G01433279

Courtesy of GENERAL MOTORS CORP.
