Shift Lever Does Not Move With Brake Pedal Depressed

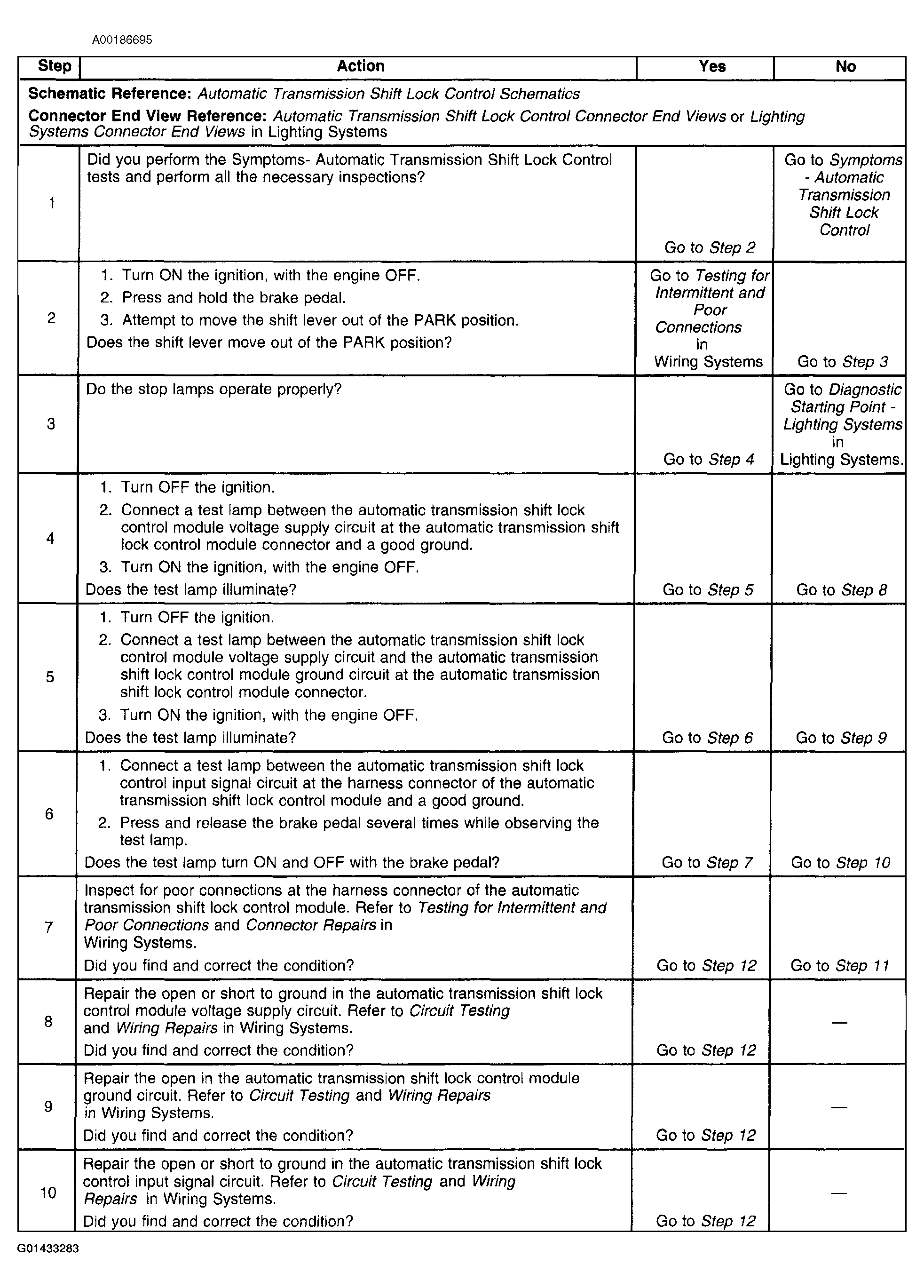

Fig 1: Diagnostic System Check - Shift Lever Does Not Move with Brake Pedal Depressed (Steps 1-10)
G01433283Courtesy of GENERAL MOTORS CORP.

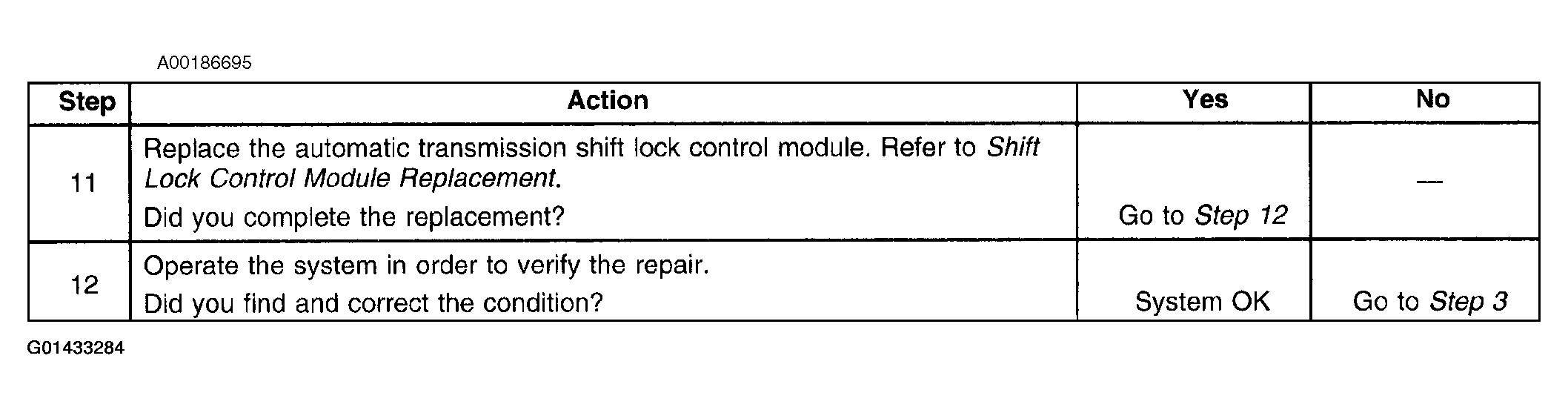

Fig 2: Diagnostic System Check - Shift Lever Does Not Move with Brake Pedal Depressed (Steps 11-12)
G01433284Courtesy of GENERAL MOTORS CORP.
