| Drain Plug |
36 (49) |
| Inlet & Outlet Fluid Cooler Pipe |
20 (27) |
| Torque Converter Bolt |
20 (28) |

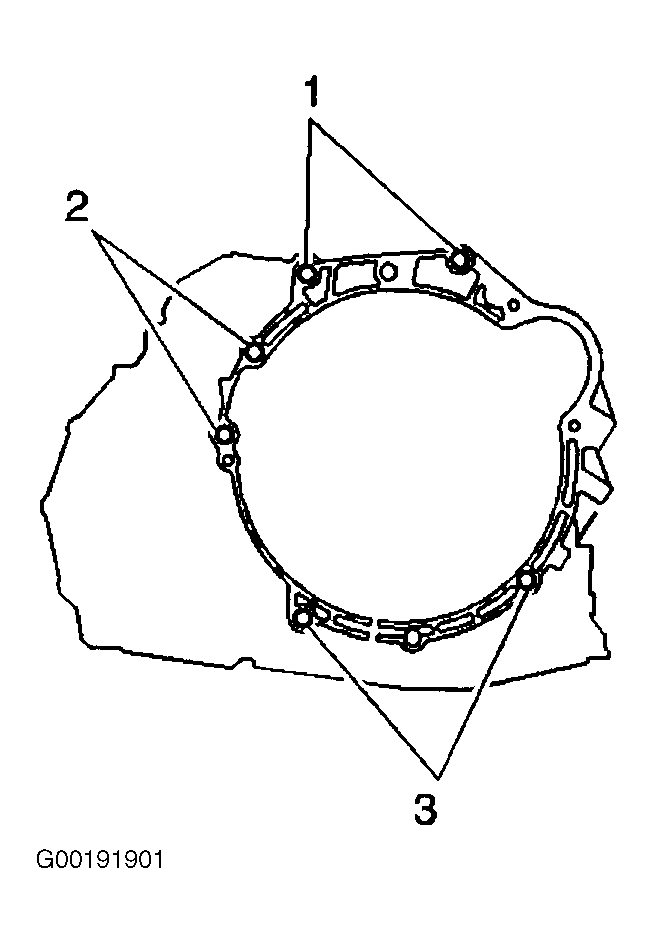

| Transaxle-To-Engine Retaining Bolts |
| Bolt (1) |
47 (64) |
| Bolt (2) |
35 (46) |
| Bolt (3) |
17 (23) |
| Transaxle Mount |
| Front Bolt |
47 (64) |
| Front Bolt Through Nut |
38 (52) |
| Left Bolts (4) |
38 (52) |
| Left Through Bolt |
59 (80) |
| Left Bracket-To-Transaxle Bolt |
59 (80) |
| Transfer Case-To-Transaxle Nuts |
51 (69) |
| INCH Lbs. (N.m) |
| Air Cleaner Bolt |
62 (7) |
| Fluid Pan Bolt |
69 (7.8) |
| Ground Cables-To-Transaxle Bolt |
89 (10) |
| PNP Switch Bolt |
48 (5.4) |
| Vehicle Speed Sensor Bolt |
48 (5.5) |
