Schematic and Routing Diagrams

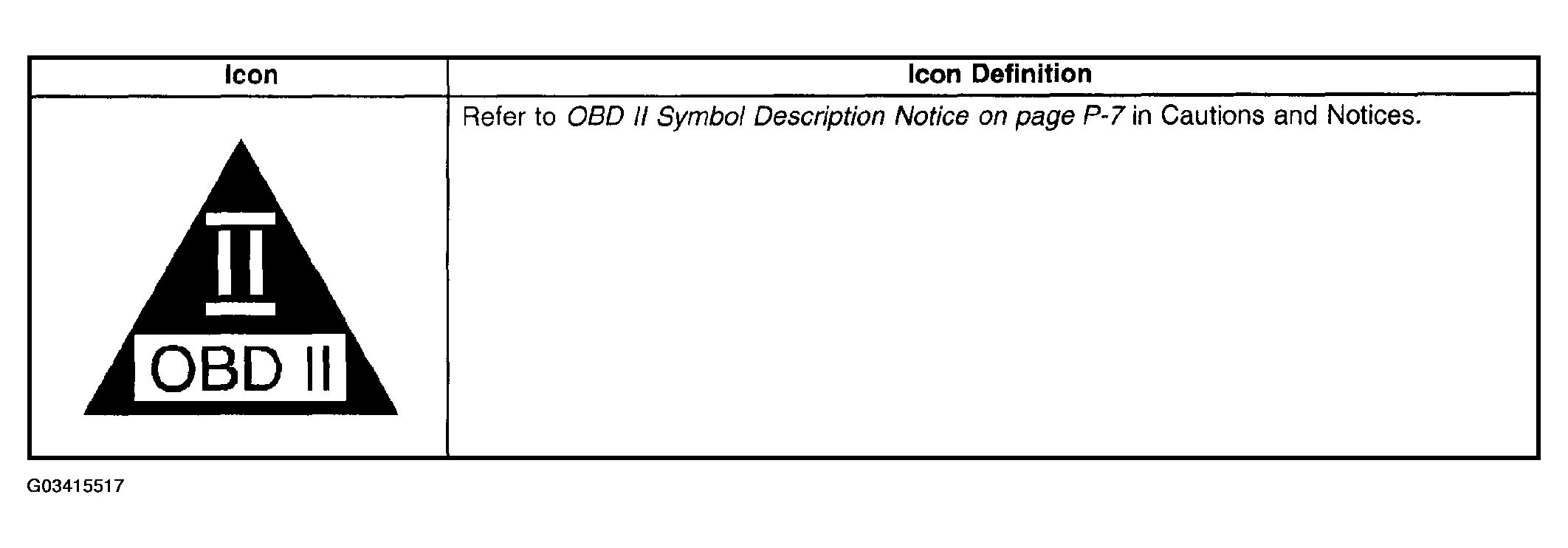

Fig 1: Automatic Transmission Schematic Icons

Courtesy of GENERAL MOTORS CORP.

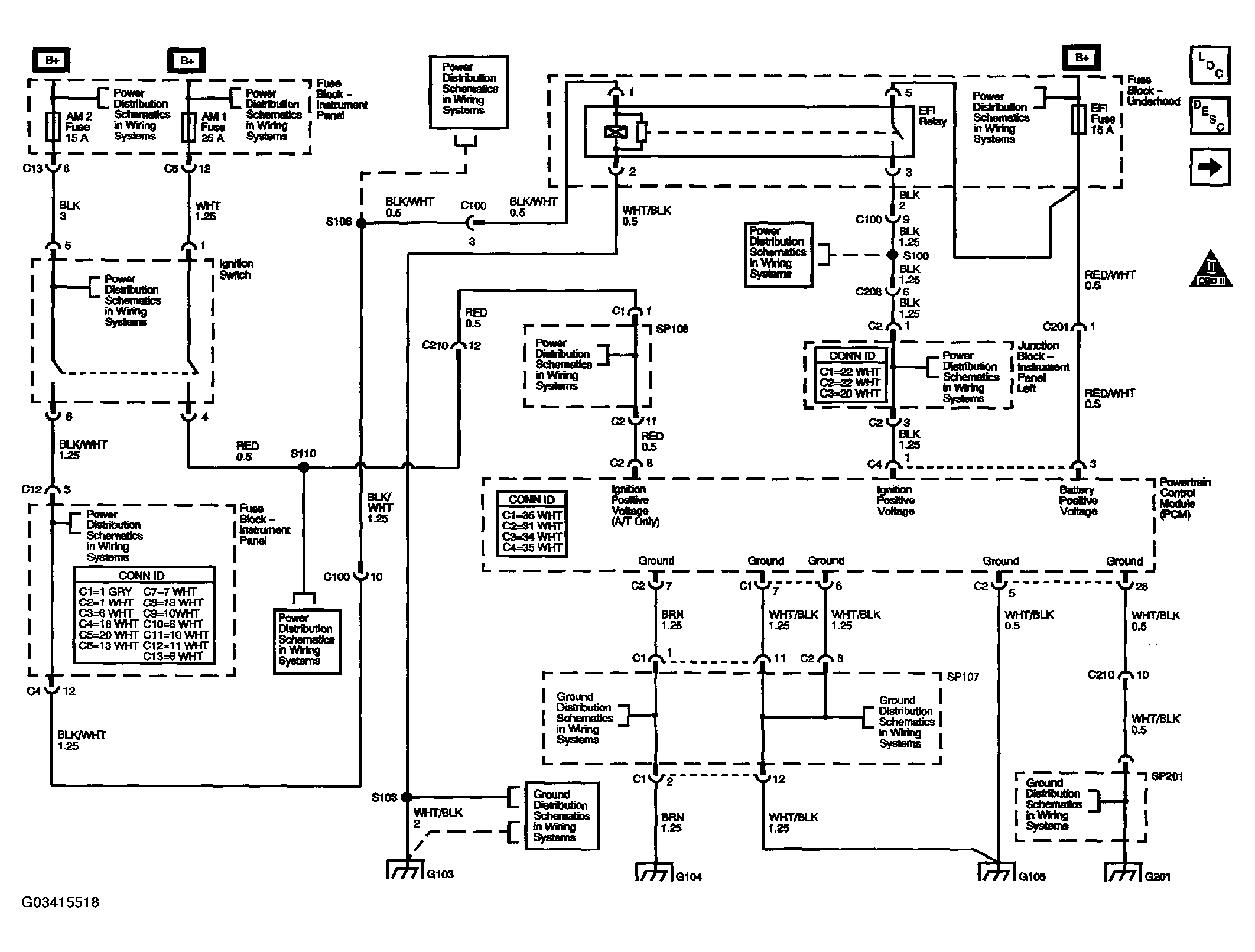

Fig 2: Automatic Transmission Controls Schematics (Powertrain Control Module (PCM) Power and Ground)

Courtesy of GENERAL MOTORS CORP.

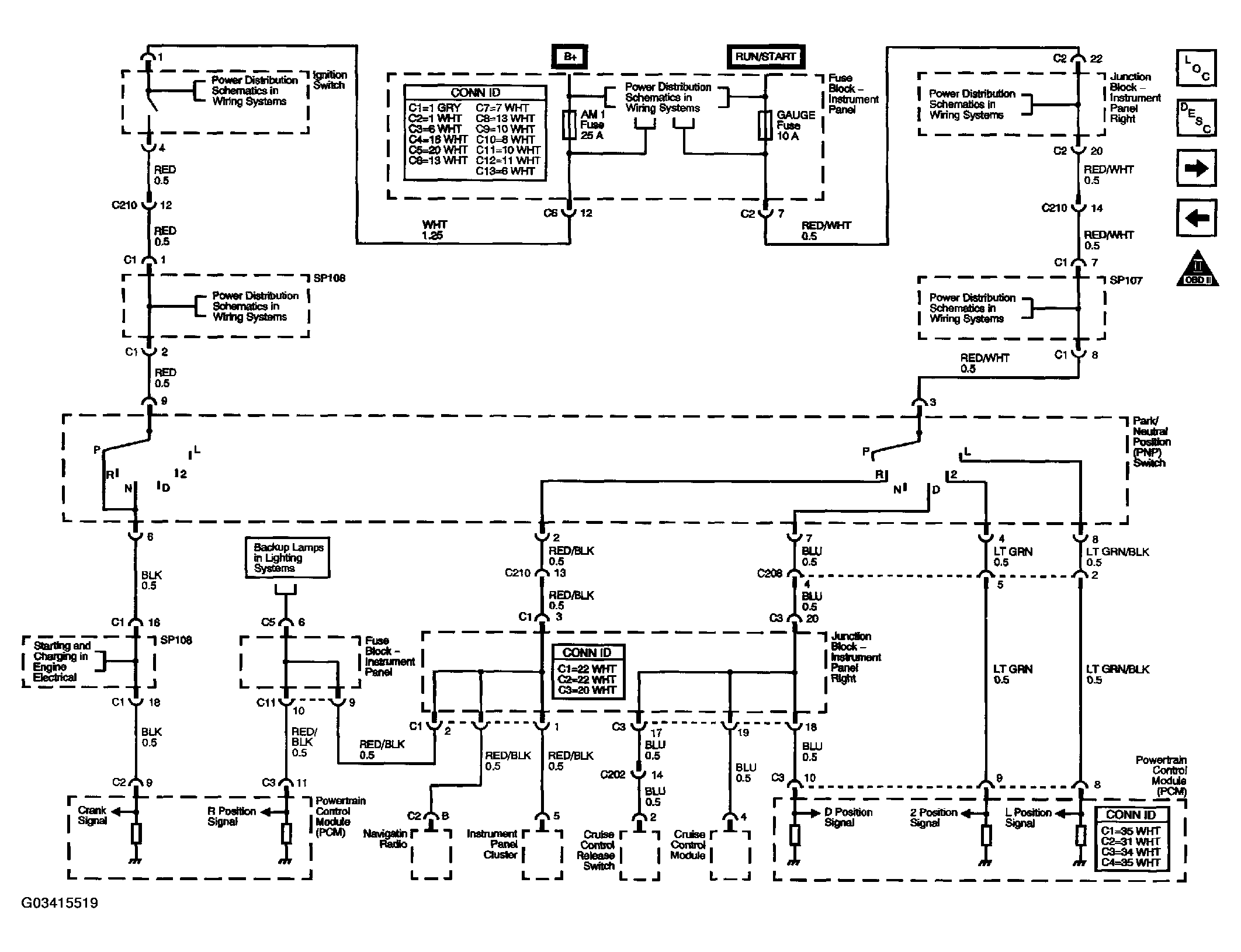

Fig 3: Automatic Transmission Controls Schematics (Park/Neutral Position (PNP) Switch)

Courtesy of GENERAL MOTORS CORP.

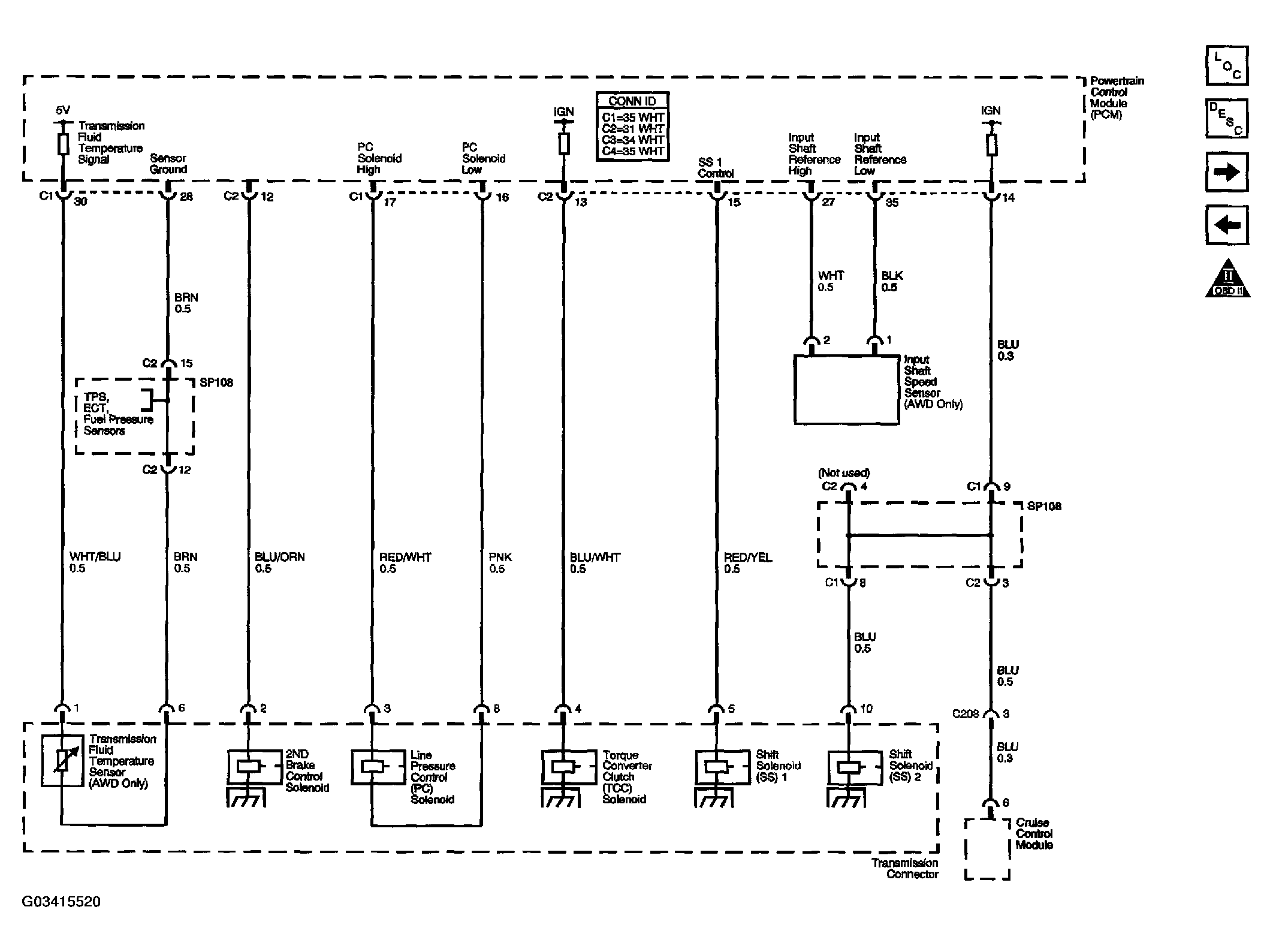

Fig 4: Automatic Transmission Controls Schematics (Transmission Connector)

Courtesy of GENERAL MOTORS CORP.

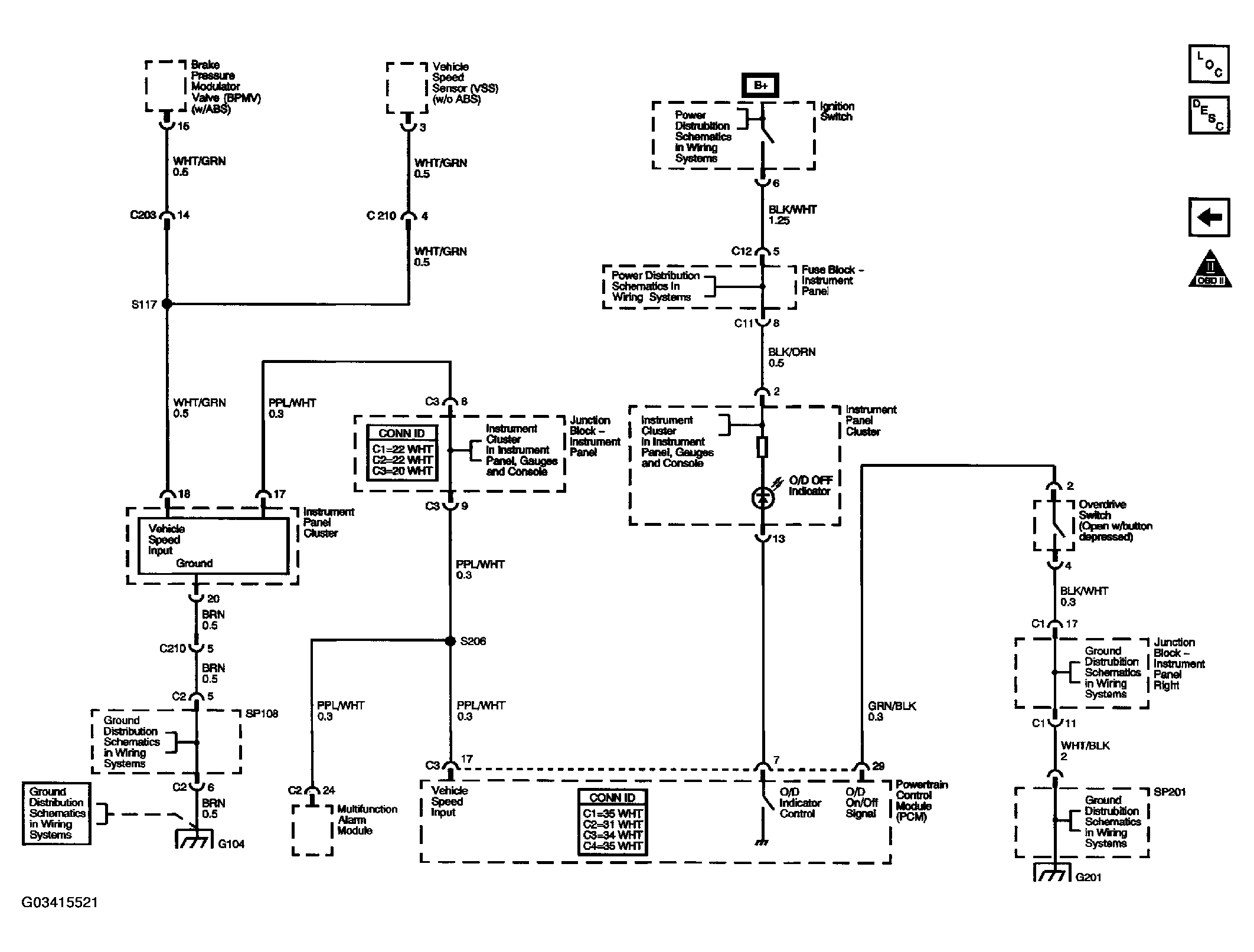

Fig 5: Automatic Transmission Controls Schematics (Vehicle Speed Input, O/D Switch and Indicator)

Courtesy of GENERAL MOTORS CORP.
