Installation Procedure

  1. Install the PNP switch to the transaxle. Secure with 2 bolts. Do NOT tighten fully.
    NOTE: Refer to FASTENER NOTICE .
  2. Install a new lock plate (1) and the manual shaft nut (3) onto the PNP switch.

    Tighten

    Tighten the manual shaft nut to 5.5 N.m (49 lb in).

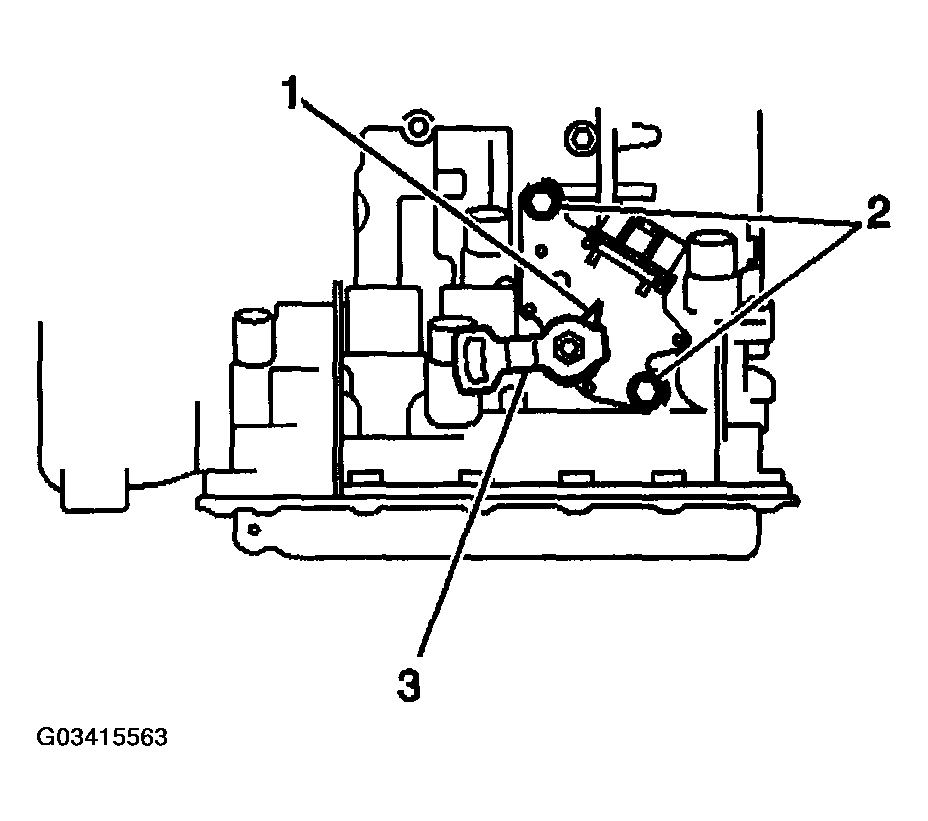

    Fig 1: Installing New Lock Plate And Manual Shaft Nut Onto PNP Switch
    G03415563Courtesy of GENERAL MOTORS CORP.
  3. Temporarily install the manual lever.
  4. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.

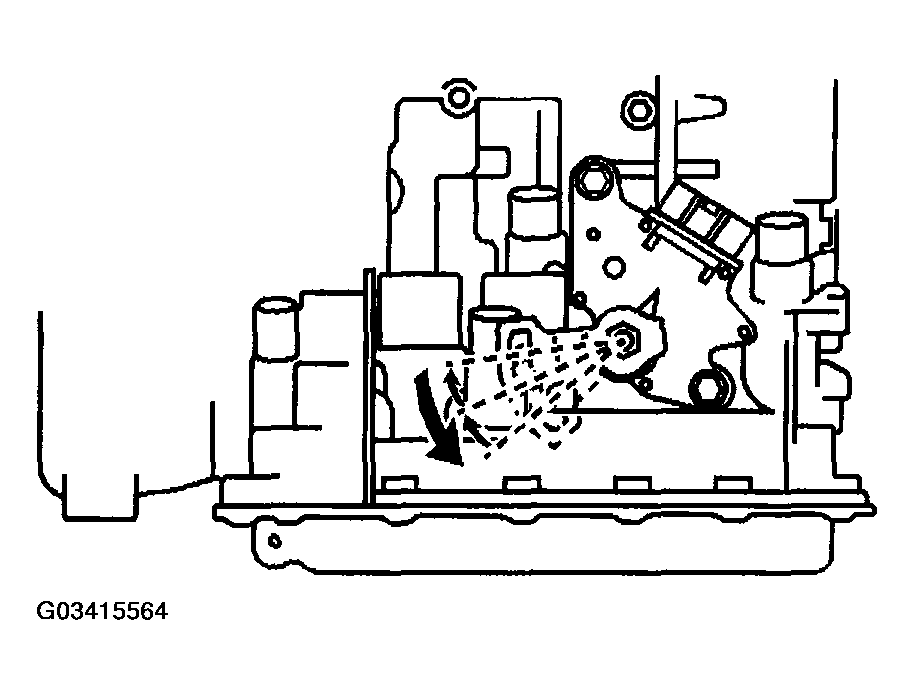

    Fig 2: Turning Lever Counterclockwise Until It Stops & Turning It Clockwise 2 Notches
    G03415564Courtesy of GENERAL MOTORS CORP.
  5. Remove the manual lever.
  6. Align the groove (1) with the neutral base line (2).
  7. Hold the switch in position, then tighten the 2 bolts.

    Tighten

    Tighten the Park/Neutral Position (PNP) switch bolts to 5.5 N.m (49 lb in).

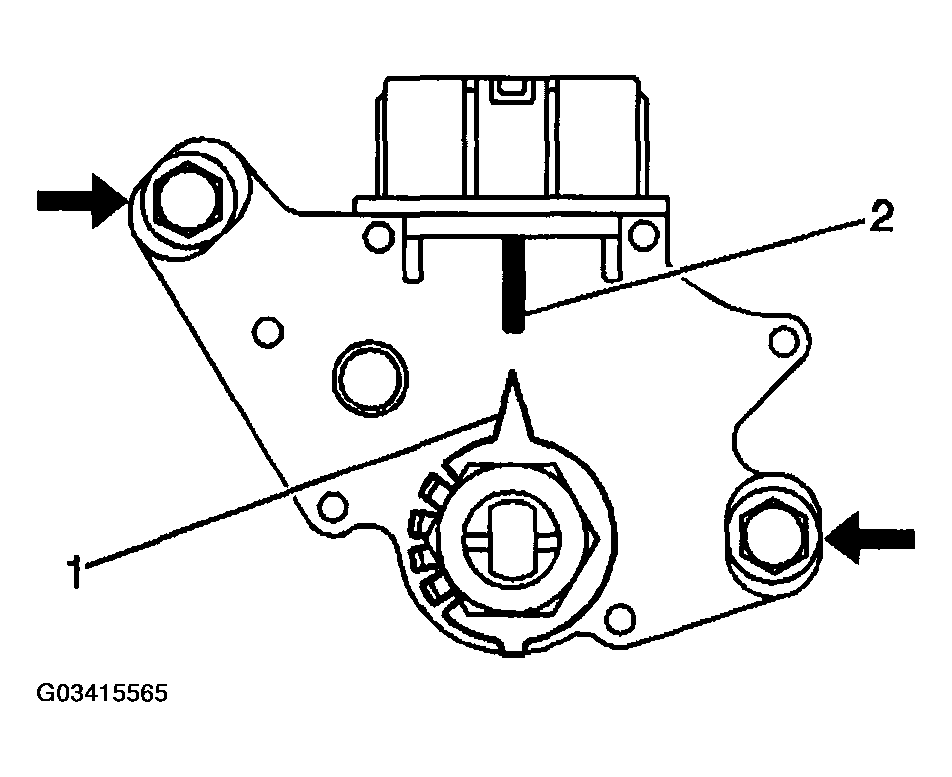

    Fig 3: Aligning Groove With Neutral Base Line
    G03415565Courtesy of GENERAL MOTORS CORP.
  8. Stake the lock plate over the manual shaft nut.
  9. Install the manual lever onto the manual shaft. Secure the manual lever with 1 lock washer and nut.

    Tighten

    Tighten the manual lever nut to 12.5 N.m (9 lb ft).

  10. Install the PNP switch electrical connector to the PNP switch.

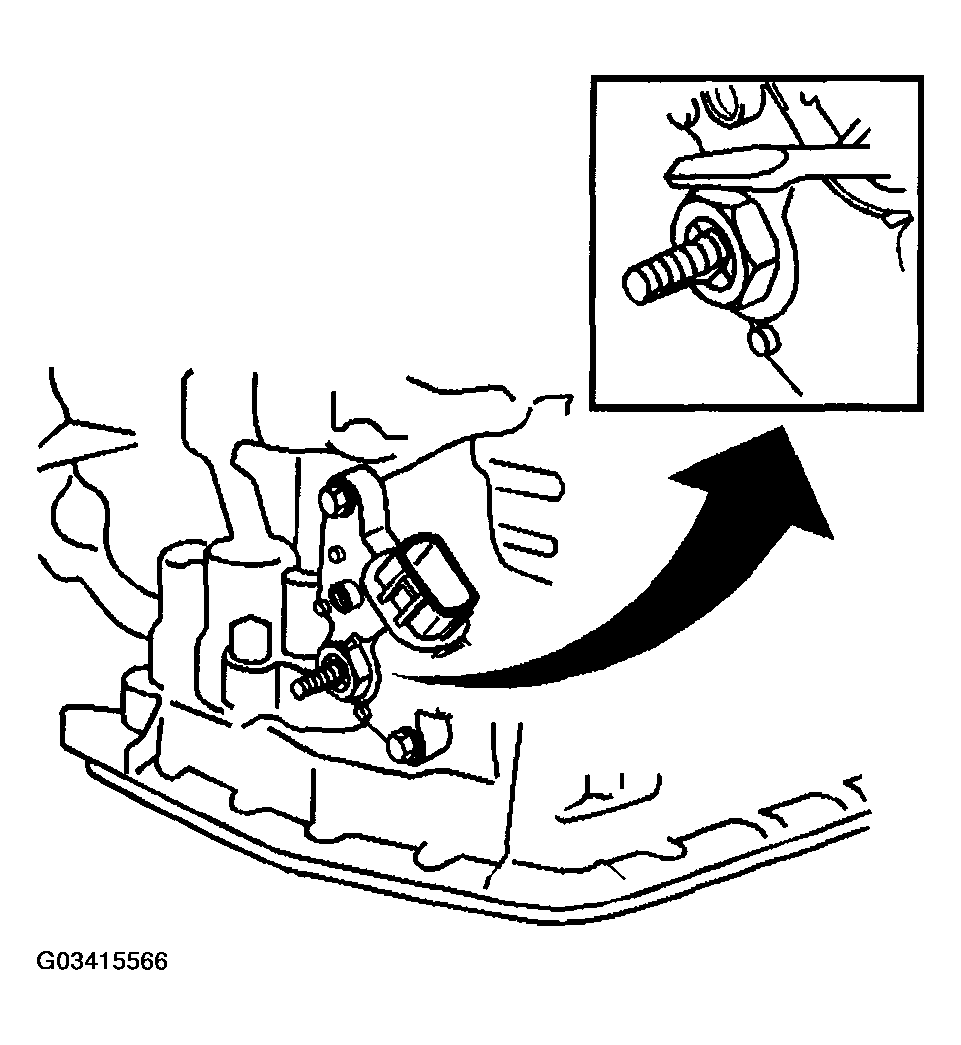

    Fig 4: Staking Lock Plate Over Manual Shaft Nut
    G03415566Courtesy of GENERAL MOTORS CORP.
  11. Install the shift select cable and nut to the manual lever.

    Tighten

    Tighten the shift cable retaining nut to 12.5 N.m (9 lb ft).

  12. Install the shift select cable (1) in the retaining bracket, then install the clip (3).
  13. Install the battery tray in the vehicle, then the 4 battery tray retaining bolts.

    Tighten

    Tighten the bolts to 13 N.m (10 lb ft).

    CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  14. Install the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
  15. Apply the parking brake and block the vehicle wheels.
  16. With the manual selector in Park position, turn the ignition switch to START and verify that the starter motor operates.
  17. Stop the engine and return the ignition switch to the ON position.
  18. Move the manual selector from the Park position to the Neutral position and verify that the starter motor operates.
  19. Verify that the starter motor DOES NOT operate in D, 2, L or R.

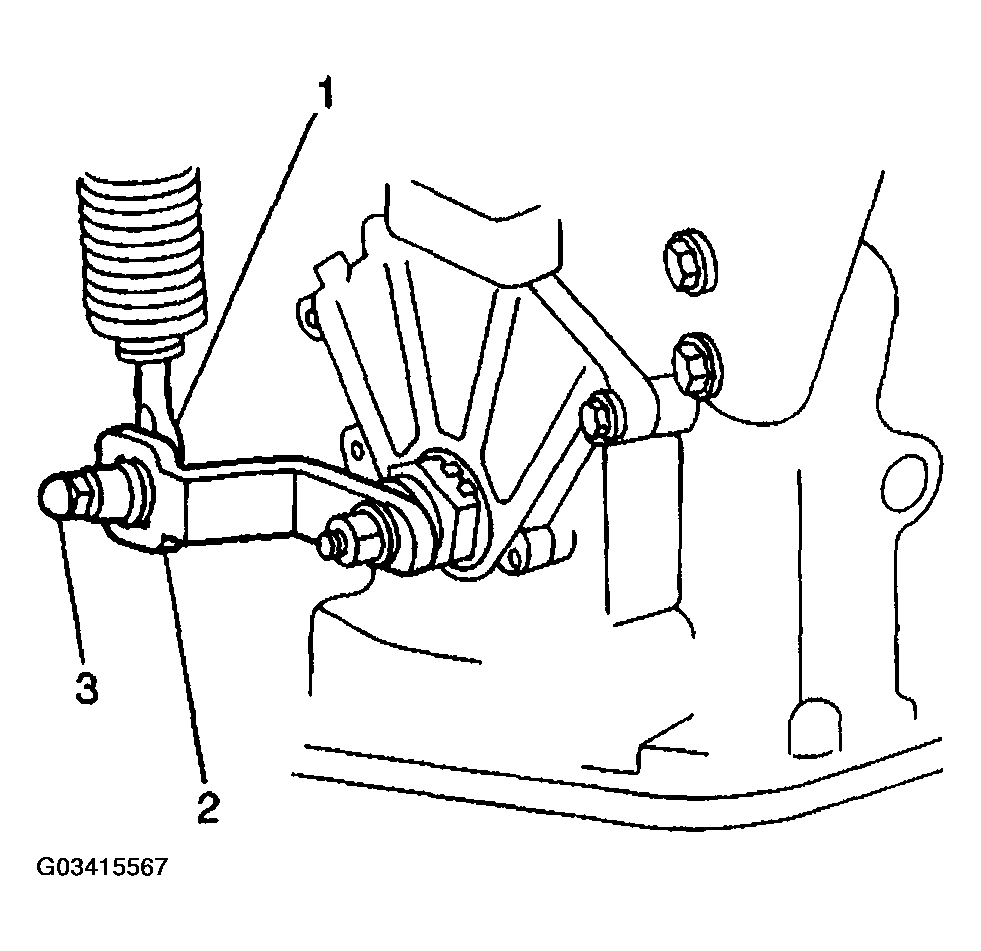

    Fig 5: Installing Shift Select Cable In Retaining Bracket And Clip
    G03415567Courtesy of GENERAL MOTORS CORP.
